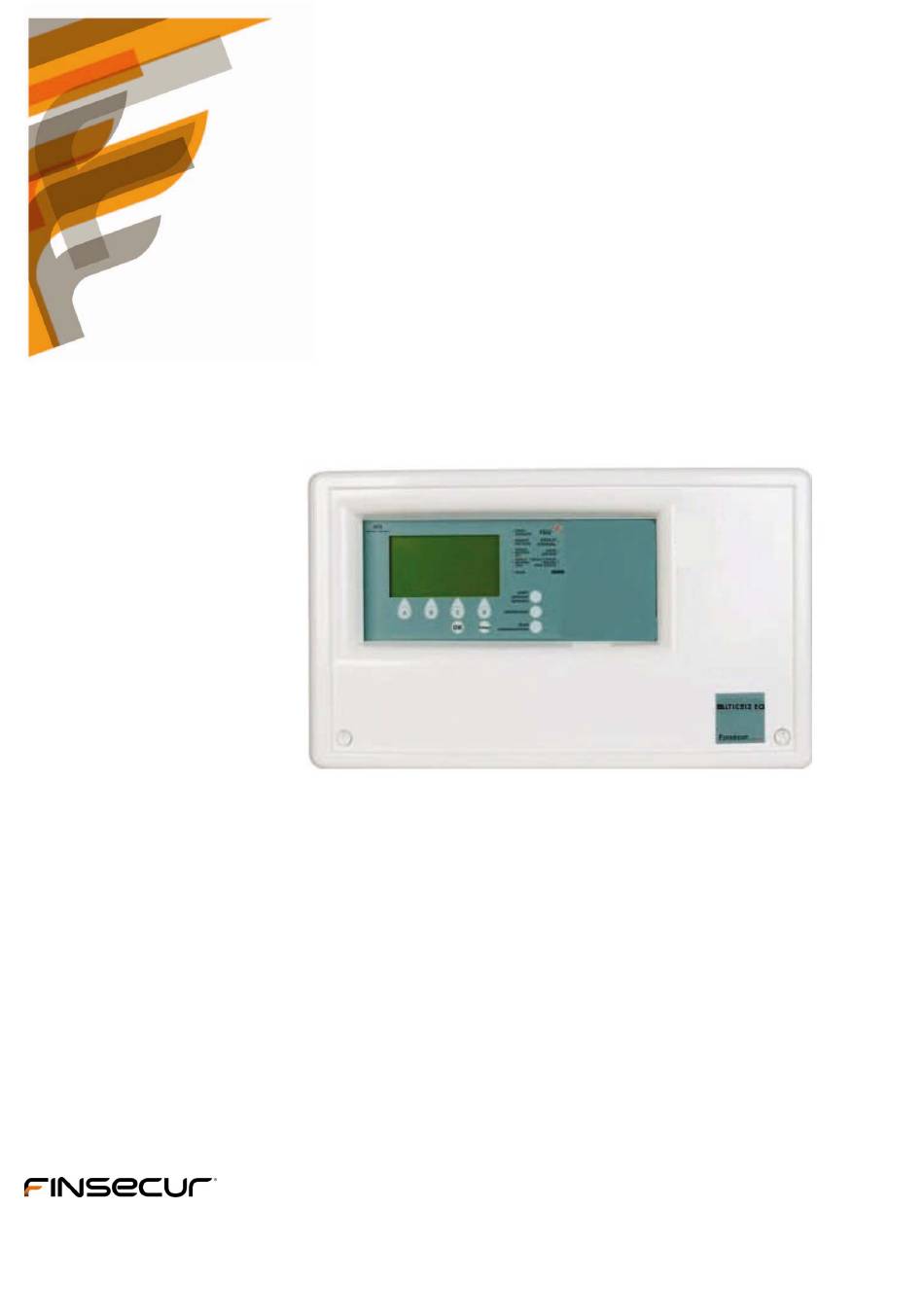

- Page 1 Guideline BALTIC 512 Analogical • Auto addressing (by software) • • Autonomy 72 h • Software set up...
-
Page 2: Table Of Contents
GENERAL PRESENTATION ......................6 General view description ........................6 Spare parts ..............................7 Accessories ............................... 7 BALTIC 512 Presentation ........................7 General characteristics ............................7 Technical characteristics (C.I.E.) ......................8 Orders and signalisation of the C.I.E panel ..................9 Orders description of the C.I.E ......................9 Signalisations description of the C.I.E .................... - Page 3 AMU power supply set up ........................48 Set up the released mode of the AMU (temporization) ..............49 SECURITY FUNCTION SET UP(OPTION) .................. 49 Set up of the power supply for the security function ............... 49 TEST ............................... 50 BALTIC 512...
- Page 4 Maintenance ..........................61 Periodic check .......................... 61 Maintenance of the Batteries ....................61 APPENDICES ..........................62 Appendix A ............................ 63 Appendix B ............................ 64 Appendix C ............................ 65 Appendix D ............................ 66 Appendix E ............................ 67 Appendix F ............................ 68 BALTIC 512...
-
Page 5: Definitions
CIE order. E.P.S : (External power supply) EN Certified external power supply St E.P.S. : (Standard external power supply) Standard external power supply S.D : (Security devise) Devices that will locally participate in putting the building into security. BALTIC 512... -
Page 6: General Presentation
Protection Fusible of the Security functions remote control lines (1A temporised) Safety battery for the security functions . (12V – 1,3Ah) Safety battery for the C.I.E (12V – 7,2Ah) Security functions Protection Fusible of the A.M.U power supply (160mA ) BALTIC 512... -
Page 7: Spare Parts
8 lines (32 detectors of manual call points per line). A mix between open lines and loops can be done (e.g : 3 loops and 2 lines). The Baltic 512 has an utilisation power is 12V and secondary battery is included. -
Page 8: Technical Characteristics (C.i.e.)
EN 542: Panel Options Switch off addressed point Test Additional Functions 12v output that can be reseted Informatic report output 2 programmable relays 2 RS232 outputs , one of them can be programmed as RS485 (J_Bus) Autonomy 72 h BALTIC 512... -
Page 9: Orders And Signalisation Of The C.i.e Panel
Allows the user to exit the menu Allows the user to validate Signalisation test Light all the lights of the panel and LCD screen and sound the internal buzzer reset Reset the panel Stop the sounder Stop the internal buzzer BALTIC 512... -
Page 10: Signalisations Description Of The C.i.e
- compartmentalization check (non temporised) • - Smoke extraction Transmission / Break without position - Technical stop check (non temporised) • Transmission / Break with position check ( temporised) • Transmission / Break without position check ( temporised) BALTIC 512... -
Page 11: Caractéristiques Techniques (Fonction D'alarme)
24V or 48V nominal (External power supply) Intensity • 1 A / line (external power supply) • 700mA (for internal power supply) Number of sounders / line: 50 max.( Finsecur brand) Wiring Cable : 2 x 1,5 or 2,5 mm² type CR1C1 BALTIC 512... -
Page 12: Orders And Signalisation Of The A.m.u / Security Functions
Cable length : Depending on the consumption and type of function. See Appendices A and B Auxiliary function Auxiliary contact : Inversor 30V max. , 1A max Others Standards : NFS 61936 Set up : Bridge/ computer Orders and signalisation of the A.M.U / security functions BALTIC 512... -
Page 13: Orders Description Of The A.m.u/ Security Functions
C.I.E Indicator ( x3 ) Indicates that the line is under voltage. Break = steady : stand by (red or green) Transmission = blink during the functioning Label Indicate the name of the security function BALTIC 512... -
Page 14: B51216R Relays Card Presentation (Option)
Allows to program the contact on the position « normally close » (R) or « normally open » (T) Red light Indicate that the relay is activated Relay plug Allows the connection of the relay to the free voltage contact BALTIC 512... -
Page 15: Connection Plug Of The B51216R Card
These cards has 16 free voltage contacts that can be activated after an alarm is detected. • All the contacts can be programmed on « normally open » position or « normally closed » position by using « selection bridge » See following scheme (contact n°1): BALTIC 512... -
Page 16: External B51216R Card Description
« normally close » (R) or « normally open » Red light Indicate that the relay is activated Relay plug Allows the connection of the relay to the free voltage contact EPS plug 24V input Connector between Allows the connection between the cards cards BALTIC 512... -
Page 17: B51216R Relays Card Presentation (Option)
Module B512OI2C positioning The module B512OI2C allows the communication between the mother board of the CIE and the External B51216R network. It is placed under the mother board of the CIE on the connector 20 points (see schema). BALTIC 512... -
Page 18: External B51216R Address
Number of relays Power cut 1A – 40 Vcc Number of B51216R cards / 1 max. (B51216R int) Baltic512 8 max. (B51216R ext) Electrical Characteristics Voltage 21,6Vcc to 27,5 Vcc Consumption 6,45mA (stand by) 160mA (16 relays activated) BALTIC 512... -
Page 19: Wiring
« Paragraphe 4.6.2. of the NF EN 60950 Octobre 2000 (Low voltage directive) » Reminder The detection cable and remote transmission cable shoud be as far as possible from the power supply cable. Respect the cable length (see appendices) BALTIC 512... -
Page 20: Detection Loop Wiring
Intensity : 100mA Max Voltage : 11 – 13V (+ou – 1V) Resistance : 80 Ohms Distance : 1000m max. Type of cable : 1 pair 8/10e (without screen) Category (cable): C2 or CR1 depending on the installation BALTIC 512... - Page 21 The loop starts from odd number and finish on the followed even number e.g Ex: BUS 1 and BUS 2, BUS 5 and BUS 6 ...etc BALTIC 512...
-
Page 22: Finsecur Remote Indicator
FINSECUR remote indicator Manual call point wiring BALTIC 512... -
Page 23: Fiat Relay Modul Wiring
FIAT relay modul wiring Linear Beam detector BEAMASTER 5 wiring BALTIC 512... -
Page 24: Mistral 50 And 100
Mistral 50 and 100 Multiponctual detectors MISTRAL Mistral 200, 200 Eco and 200 BALTIC 512... -
Page 25: Flame Detector Wiring Ref: Tv 63
Flame detector wiring ref: TV 63 « Alarm/ disable » contact wiring BALTIC 512... -
Page 26: Programming Relay
Voltage max: 30V Intensity: 1A max Internal functioning The RL1 and RL2 relays can be programmed in order to be activated by a fire detected in one or several zone. Initially The relay are not associated to any zone. BALTIC 512... -
Page 27: User " 12V Output
The second option need to be programmed Initially Permanent mode Panel repeater wiring :AVISO Characteristics: • 2 repeaters (FINSECUR only) max • Wiring with 2 cables • Length: 1000 m max • Type of cable :1 pair 8/10e (without screen) •... -
Page 28: Rs232 Output (N°1)
− Without parity Internal functionning • Use to connect the computer with the baltic software, or a printer. Set up • Set up RS232 n°1 output in « PC » in the menu: « 2.4.1.– Serial port com» BALTIC 512... -
Page 29: Wiring Discription E.c.s (Output 1). <=> Pc
Wiring discription E.C.S (output 1). <=> PC BALTIC 512... -
Page 30: Rs232 Output (N°2)
Use to connect the computer with the Baltic software, a printer or a supervision device (J Bus) Set up RS232 (n°2) • Set up RS232 n°2 output on « PC » in the menu: « 2.4.1.– SERIAL PORT COM » BALTIC 512... -
Page 31: Wiring Discription E.c.s (Output 2). <=> Pc
Wiring discription E.C.S (output 2). <=> PC Printer wiring (BR16) RS232 n°1 BALTIC 512... -
Page 32: Wiring Discription Printer (Output 1). <=> Pc
Transmission : 19200 bauds 8 bits 1 stop bit Without parity Auto line jump Set up Set up RS232 n°1 output in « printer » in the menu: « 2.4.1.– SERIAL PORT COM » Wiring discription printer (output 1). <=> PC BALTIC 512... -
Page 33: Wiring (A.m.u.) Options
Note: in order to know the max lenght of the sounder line see appendices A, B and C WIRING (A.M.U)(OPTION) Technical characteristics • Number of line : • Number of sounders :50 max. (Finsecur) • Voltage : − 12V (internal EPS) − 24/48V (External EPS) •... -
Page 34: Sounders Wiring: Buccin
Sounders wiring: BUCCIN Electrical characteristics • Voltage: 10 à 55Vcc • Consumption : 20mA Sounders wiring « FIAGS » BALTIC 512... -
Page 35: Sounders Wiring " As2
Sounders wiring « AS2 » Speaking sounders wiring « AMP1 » BALTIC 512... -
Page 36: Synchronised Speaking Sounders Wiring " Amp2
Synchronised speaking sounders wiring « AMP2 » Flash wiring ref: PA 1280 C0,5 BALTIC 512... -
Page 37: Interface E/Ip Wiring
Contact characteristics Contact inversor : 1 Voltage : 30V max. Intensity : 1A max. Internal functioning The change of state of the AMU will activate the auxiliary contact Temporisation : 0s Will be released after an alarm detection BALTIC 512... -
Page 38: Security Functions Wiring (Options)
Length (voltage =24V) − section 1.5mm²: 91m (max) − section 2.5mm²: 169m (max) • Length (voltage=48V) − section 1.5mm²: 221m (max) − section 2.5mm²: 411m (max) • Type (cable) : − Note: For the length determination please see appendix BALTIC 512... -
Page 39: Break S.d. Wiring Without Position Check. (Standard Plug It247)
Break S.D. Wiring without position check. (Standard plug IT247) Connect a diode "unblock" on each automatic system of SD (solenoide...) Do the wiring close to the SD BALTIC 512... -
Page 40: Raccordement (C.m.s.i.)
CPS=contrôle de position sécurité • Cable : 1 pair 8/10e / line • Type (cable) : • Resistor : − End of Line (EOL)* = 10kOhms – 1/4W − Contact (Rc)* = 10kOhms – 1/4W * Not included BALTIC 512... -
Page 41: Break S.d. Wiring With Position Check. (Standard Plug It247)
Break S.D. Wiring with position check. (Standard plug IT247) MRCL Transmission S.D. Wiring with position check. BALTIC 512... -
Page 42: Cpa=Stand By Position Checking R
Cable : 1 pair 8/10e / line • Type (cable) : C2 • Resistor : • End of line (EOL)* = 10kOhms – 1/4W • Contact (Rc) = 10kOhms – 1/4W * not included Transmission S.D. Wiring with position check. (Standard plug IT247) BALTIC 512... -
Page 43: External Power Supply Wiring
The repetition of the battery fault and main power supply state of the EPS. » Note : If you follow the following scheme, you will connect the EPS on the input Power supply allows the intensity break S.D power supply. BALTIC 512... -
Page 44: Standard Eps Wiring
Voltage : 230Vac 50...60Hz (+10% , 15%) Intensity : 0,16 A max Protection : fuse 160mA Cable : 2 x 2.5 mm² Type (cable) : C2 The panel power supply should be done with a separate line that has a protection. BALTIC 512... -
Page 45: Secondary Power Supply Wiring
The wiring needs to be done without the fuse (9) « secondary power supply » Technical characteristics Battery : 1 Type :Proof lead (12V –7,2Ah) : fuse 1A 72h Protection fuse 1A Autonomy : 72h Functions Battery : 1 Type :Proof lead (12V – 1.3Ah) Protection : fuse 1A BALTIC 512... -
Page 46: Set Up
Procede to the panel test (see chapter « test ») If you want to change the initial set up of the panel • Changes the set up (see “set up”) • Procede to the panel test (see « test») BALTIC 512... -
Page 47: Paramétrage " Progiciel
3 Run the software BALTICPC See « Set up » 4 Change/create or download new set up. 4 • See « Set up » 5 • Disconnect the computer The panel set up can only be done using a computer BALTIC 512... -
Page 48: Amu Set Up(Option)
• EPS internal : 700mA max. (12V) for the 2 sounders line • EPS external : 1A / line max. (24 / 48V) Software set up of the EPS Action Observation • See « software set up » BALTIC 512... -
Page 49: Set Up The Released Mode Of The Amu (Temporization)
Set up of the power supply for the security function • The power for the S.D can only be done using external power supply. - EPS for transmission function - Standard power supply for break intensity function • The selection is done using bridges (see drawing) BALTIC 512... -
Page 50: Test
The CIE automatically reset a loop that was on alarm after a « bip » sounded (0.1s) on all the sounders. - No relay is activated - No information is send to the AMU or security function See the menu BALTIC 512... -
Page 51: Automatic Detector Test
The zone is seconds associated to the AMU • • A bip sound on all Check if the detector sounders is correctly wired to its base At the end of those test, please put the loop on stand by BALTIC 512... -
Page 52: Sounders Test
Enter the level 2 code Fire goes off • (initallly AABC) The red light Press reset Alarm goes off Repeat those steps to each zone In order to prevent the sounders , we can do the others zones in stand by. BALTIC 512... -
Page 53: Test Of The General Evacuation Manual Control
See “Standby”, “Fire” state alarm order of a security Internal buzzer is continuous and disable state function • Reset the panel The red security light is • The red alarm light is Do not forget to reset the S.D BALTIC 512... -
Page 54: Exploitation
1/ Ventilate the zone were the detector is (the detector will be reset) 2/ Reset the panel • In case of fire alarm 1/ Release manually the sounders (see paragraph above « stand by ») 2/ Evacuate the building following the specific guideline. BALTIC 512... -
Page 55: Reset The Panel
• The yellow light « general fault » is on • The LCD screen indicates the fault • Discontinuous sounds What to do? 1/ Stop the internal buzzer « buzzer stop » 2/ Fix the problem. Key boards and screen of the CIE BALTIC 512... -
Page 56: Description Of The Keyboard And The Screen
1/ Go to the menu “1.2.2 – Out of service” 2/ Select and validate “1.2.2.1. – zones” 3/ When asked, enter password n°2 1/ Press OK to switch off the selected zone 2/ Select another zone by pressing “A” [ZONE-] and “B” [ZONE+] BALTIC 512... -
Page 57: Switch On A Detection Zones (Cie)
The yellow light « sounders out of service » is fix Switch on and off of the auxiliary contact Objective: The sounders line will not be taken into account by the panel. Initially - The two sounders line are switch on. BALTIC 512... - Page 58 Put the switch number 7 on the « ON » p osition in order to switch off the auxiliaries contacts The yellow light “auxiliaries contacts out o f service” is fix BALTIC 512...
-
Page 59: Exploitation(Option)
The “restrictive stand by” LED is (BBBB initially) In this mode, the manual activation of the AMU is still activate Passwords modification Objective: Change level 2 and level 3 passwords Initialy - Password 2 : BBBB - Password 3 : CCCC BALTIC 512... - Page 60 « 2.3.1 – Password 2 » ou «2.3.2 –Password 3» 3- When asked enter the code 1- Indicate the new password with [A], [B], [C] et [D] 2- Confirm the new password with [A], [B], [C] et [D] 3- Press Ok to validate BALTIC 512...
-
Page 61: Maintenance
Visual examination off all the S.D. − Test all sounders or flash. Maintenance of the Batteries Autonomy: • • After 72h the system should still be able to work 1 hour and the alarm to sound 5 mins. Replacement • Every 4 years BALTIC 512... -
Page 62: Appendices
APPENDICES BALTIC 512... - Page 63 PPENDIX...
- Page 64 PPENDIX...
- Page 65 PPENDIX...
- Page 66 PPENDIX...
- Page 67 PPENDIX...
- Page 68 PPENDIX...
