Summary of Contents for NAIM FRAIM

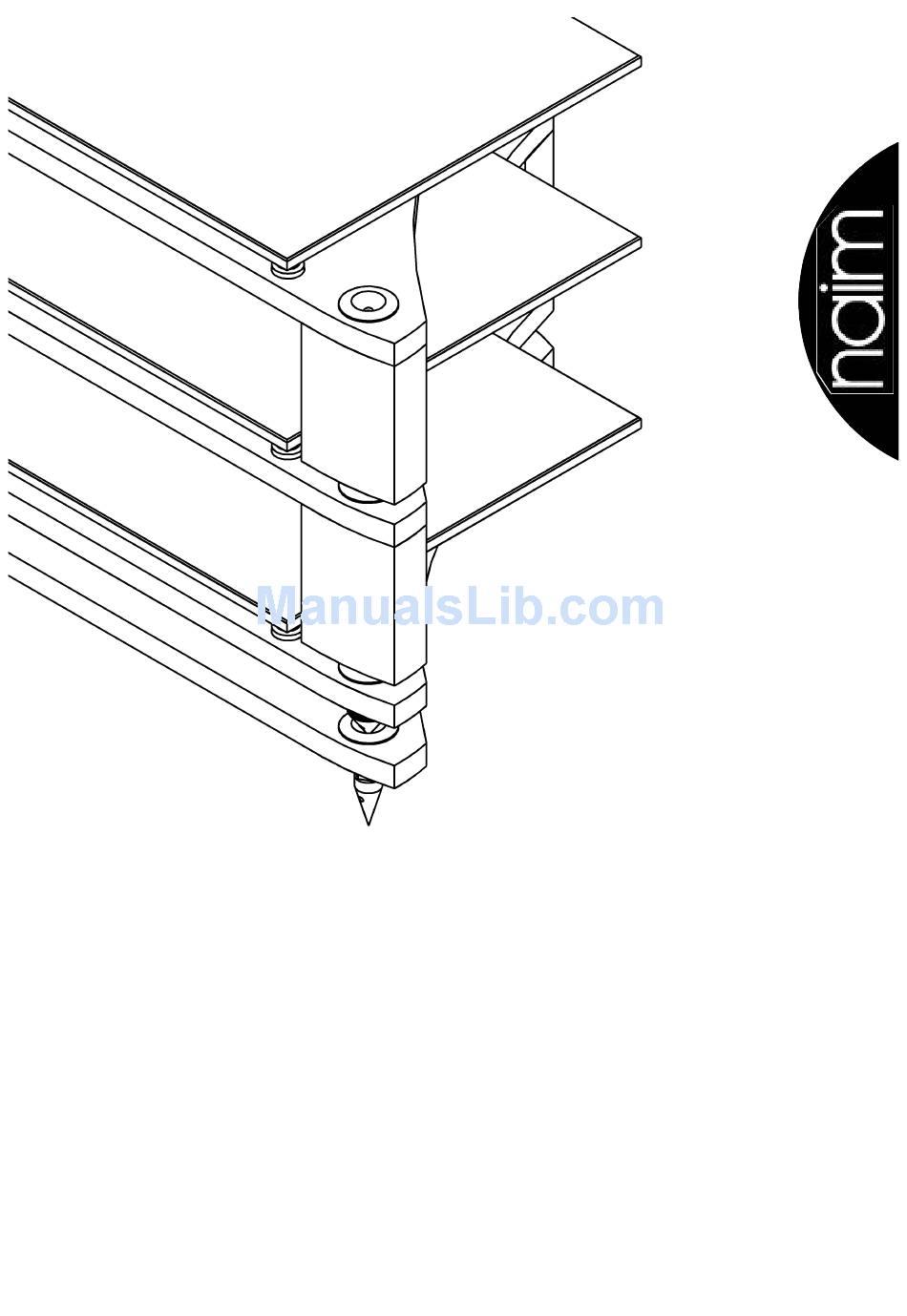

- Page 1 O W N E R S M A N U A L F r a i m E q u i p m e n t S t a n d...
-
Page 2: Clamping Ring
f r a i m Ball base level x 3 shelf level x 3 Socket base level x 3 shelf level x 3 base level x 9 shelf level x 0 base level x 6 shelf level x 3 Clamping Ring base level x 6 shelf level x 0 Cone... -
Page 3: Front Upright
Base Stud A Front Upright base level x 3 base level x 0 shelf level x 0 shelf level x 2 (available standard or extended, black or natural) Base Stud B base level x 3 shelf level x 0 Rear Upright base level x 0 shelf level x 1 (available standard... -
Page 4: Base Level
f r a i m glass ball socket (curved face up) clamping ring base stud A cone clamping ring base stud B Base Level floor spike 2: tighten 1: adjust level tighten tighten tighten... -
Page 5: Shelf Level
f r a i m glass ball socket (curved face up) front upright Shelf Level shelf stud ball socket (curved face up) cone tighten... -
Page 6: Notes And Warnings
The maximum load for any single fraim assembly is 90kg (198lbs). Do not exceed these loads. Do not stand or sit on any part of a fraim or use it for any other purpose than that intended. The maximum number of fraim levels (excluding the base level) is six when standard length uprights are used and two when extended uprights are used.
