Summary of Contents for Kyungwoo KIGIS IPAS PAS-K01-40

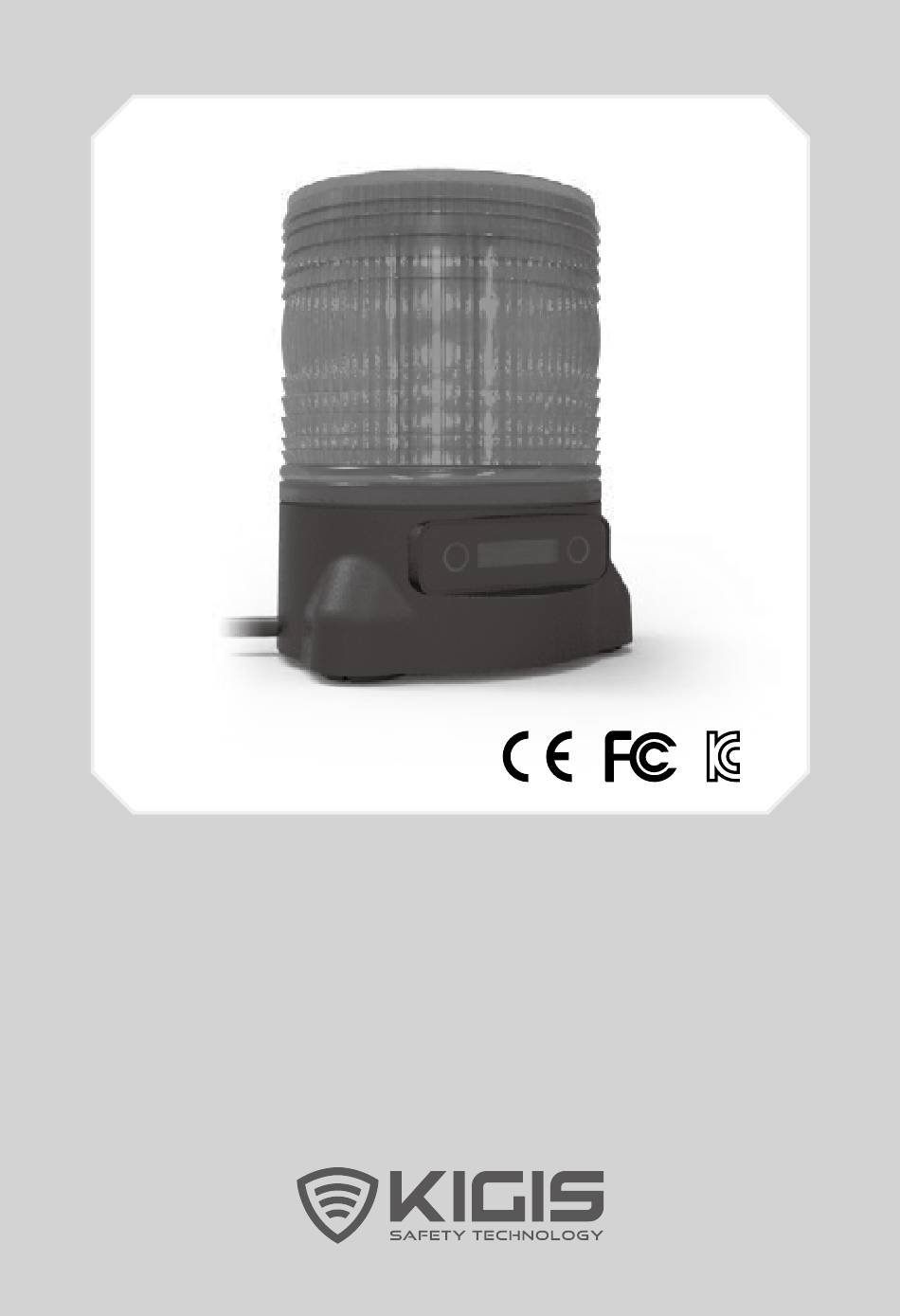

- Page 1 IPAS User Manual Flash Light Zone Tag (ZT)
- Page 2 ·Model No : PAS-K01-40 ·FCC ID : ZE8-PAS-K01-40 ·Manufacturer : KYUNGWOO SYSTECH, Inc. / KOREA * This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions : (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
- Page 3 Pedestrian Tag(PT) Danger Caution VT to VT Caution Area Area Area [V2V Type] ▶ Danger Area ㆍWarn that pedestrians approach the danger area ㆍOperate the quick lamp with the alert sound "Beepbeepbeepbeep" ▶ Caution Area ㆍWarn that pedestrians approach the caution area ㆍOperate the slow lamp with the alert sound "Beep- Beep-"...
- Page 4 PAS Flash Light Tag (ZONE TAG) is a safety-assisting device which prevents collisions between pedestrians and vehicles by signaling dangers in 2 way communication to both drivers and pedestrians in industrial working site. High accuracy of UWB based proximity detection is an advantage of KIGIS IPAS.
-
Page 5: Installation
Installation Caution! It is highly recommended to install IPAS after power off power off. Open Wire Adapter Cable Cable Extension Flash Light Vehicle Tag(VT) Cigar Jack * Caution! Wind up cable terminals to properly connect them. Disregarding this caution, it may cause a malfunction caused by liquid matters. -
Page 6: Setting Menu
Preferences ① Enter setting menu Press the left button several times to enter different types of menu. Press the right button to enter the menu. Setting Menu ※ Default setting : Danger distance 4m / Caution distance 8m / VT to VT Caution distance 8m / Buzzer ON ·... - Page 7 Caution/Warning for Safety · Use only DC 12/24V. For vehicles with DC 36/48V, be sure to connect SMPS module to use DC 12/24V. Otherwise, this may cause trouble. · Do not intentionally immerse the product in water or wash it in running water.
