Summary of Contents for NAIM CDP

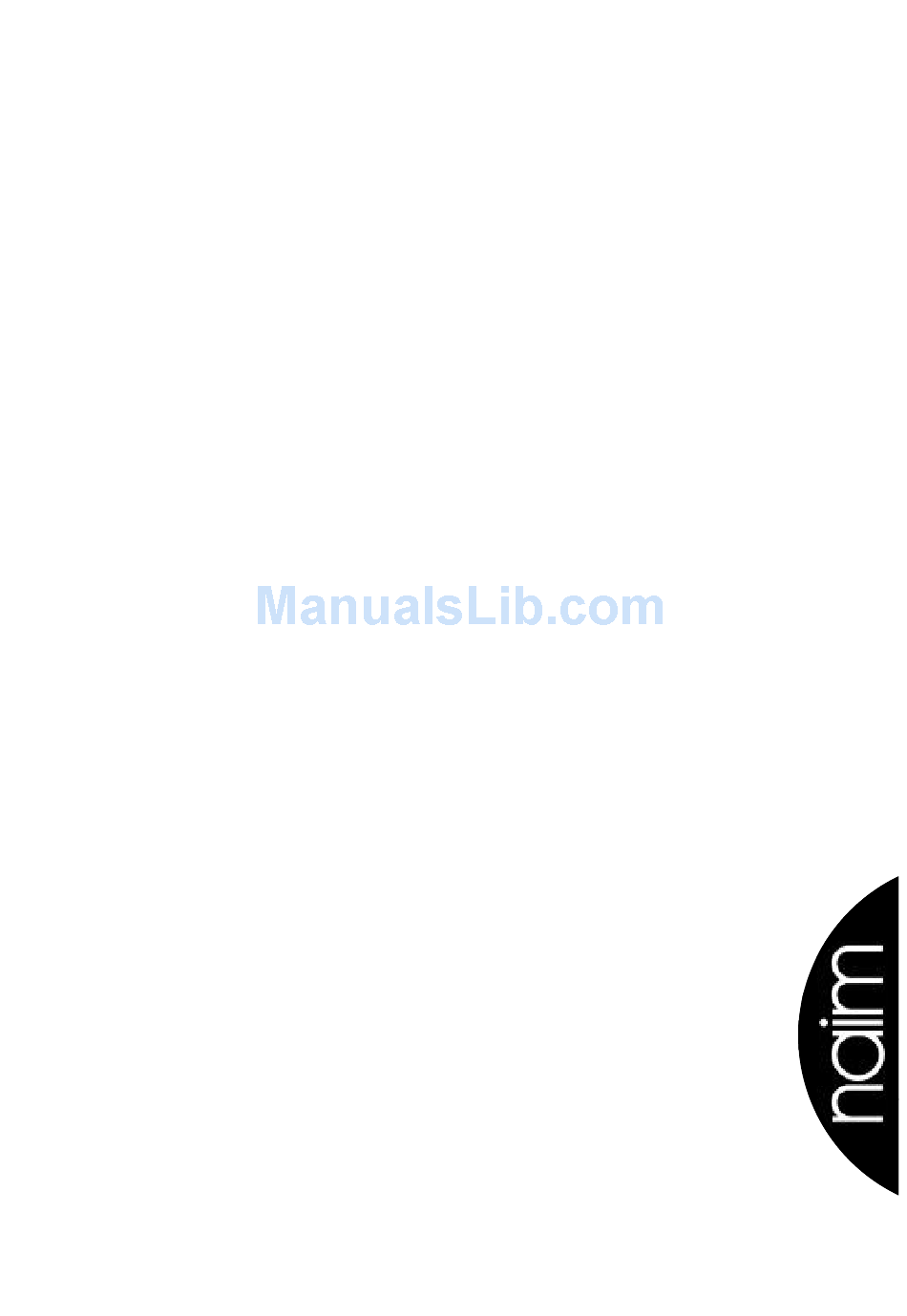

- Page 1 O W N E R S M A N U A L C D P l a y e r s...
-
Page 2: Equipment Installation
EC Declaration of Conformity to Appropriate Standards Normally your Naim equipment will have been installed by the dealer who sold it to you even if you live outside their immediate vicinity. Your dealer is responsible for making sure that the system sounds exactly as it should and information given here is not intended to reduce this responsibility in any way. -
Page 3: Getting Started
Legal consumer protection varies from country to country. In most territories a dealer must be prepared to take back any Naim equipment he has sold you if he cannot make it work to your satisfaction in your own home. A problem may be due to a fault in any part of the system or its installation so it is essential to make full use of your local dealer’s... - Page 4 If there is a known problem in your locality it is advisable to arrange for a home demonstration before purchase to find out if Naim equipment is likely to be affected. Susceptibility to radio frequency interference is related to the wide internal bandwidth necessary for high sound quality.
-
Page 5: Mains Lead
4.3 fuse carrier Should the plug fuse carrier be damaged or lost, the correct replacement must be obtained from your dealer or from Naim direct. Do not use the plug until the fuse carrier is replaced. 4.4 plug fuses Replace only with ASTA or BS 1362 approved fuses. - Page 6 c d s CDS Player Operation There are six buttons on the right hand side of the cds player front panel. Press to activate. Several of these buttons operate differently depending on whether the player is in load condition (after a disc has been loaded, but before the play button has been pressed).
- Page 7 CDS Player (from serial no. 146541) display previous next pause stop play track time repeat program CDS output ch 2 cds player wiring to preamplifier xps power supply mains input Interconnect Cables cable 5 to 5 pin DIN direction marker 11 to 11 pin Burndy...
- Page 8 CDS Player (from serial no. 146541) transit locks Unlock the transit screws fully in the direction indicated. (Remove and keep safe). Always lock these last before transit or shipping. Open the door.
- Page 9 CDS Player (from serial no. 146541) transit locks (continued) Unlock the transit screws fully in the direction indicated. (Remove and keep safe). Always lock these first before transit or shipping. cds player operation Place the compact disc on the platter. Make sure it is seated properly.
- Page 10 CDS Player (from serial no. 146541) cds player operation (continued) Place the disc clamp on the compact disc Close the door Press play...
- Page 11 c d x CDX Player Operation There are four buttons situated on the right hand side of the front panel. Press to activate. Two of these buttons operate differently depending on whether the player is in load condition (before the play button has been pressed).
- Page 12 CDX Player previous next stop play pause time repeat program power mains input link plug fitted to preamplifier CDX output ch 2 Connection to optional xps power supply (for improved performance) link plug removed NB - when using the XPS the mains lead to the CDX must be disconnected mains input Interconnect Cables...
- Page 13 CDX Player transit lock Remove the transit screw (keep safe). Always replace this before transit or shipping. cdx player operation Open the door.
- Page 14 CDX Player cdx player operation (continued) Place the compact disc on the platter. Make sure it is seated properly. Place the clamp on the compact disc. Close the door. Press play...
- Page 15 c d 5 CD5 Player Operation There are four buttons situated on the right hand side of the front panel. Press to activate. Three of these buttons operate differently depending on whether the player is in load condition (after the PLAY button has been pressed).
- Page 16 CD5 Player previous next stop play • pause • time • repeat • program link plug fitted to preamplifier power mains input RC5 input CD5 output please note The RC5 input fitted to cd5 players manufactured after March 2001 is designed to accept external control signals for multi-room applications.
- Page 17 CD5 Player transit locks Remove the transit screws (keep safe). Always replace this before transit or shipping. cd5 player operation Open the door.
- Page 18 CD5 Player cd5 player operation (continued) Place the compact disc on the platter. Make sure it is seated properly. Place the clamp on the compact disc. Close the door. Press play...
- Page 19 2 remote handset NARCOM 2 is a multi-functional remote control handset designed to be used with Naim Audio CD players, integrated amplifiers, pre-amplifiers and preset tuners. The handset control configuration is based around three types of keys: System Component Keys, Global Keys and Soft Keys.
- Page 20 3 Soft Keys These keys operate functions depending on the System Component Key setting. numeric keypad: In preamp mode the numeric keys will switch between the amplifier inputs (1 - cd, 2 - tuner, 3 - tape, 4 - av, 5 - aux 1, 6 - aux 2). In cd mode the numeric keys will select tracks. In tuner mode the numeric keys will select tuner presets or can be used directly to input station frequencies.
-
Page 21: Cd Player Maintenance
CD Player Maintenance It is very important for reliable operation of Naim CD players to ensure that the surfaces of the transport platter and the inside of the disc clamp are free of dust, fibres or other debris which can prevent the disc from sitting properly, causing it to slip. - Page 22 (performance criterion B) IEC 801-3 3V/m 20dB (performance criterion A) IEC 801-4 1KV (AC lines) 0.5KV (signal lines) (performance criterion B) OWNCD issue 6 May 2001 • • Naim Audio Southampton Road Salisbury England SP1 2LN Tel: +44 (0)1722 332266 www.naim-audio.com...
