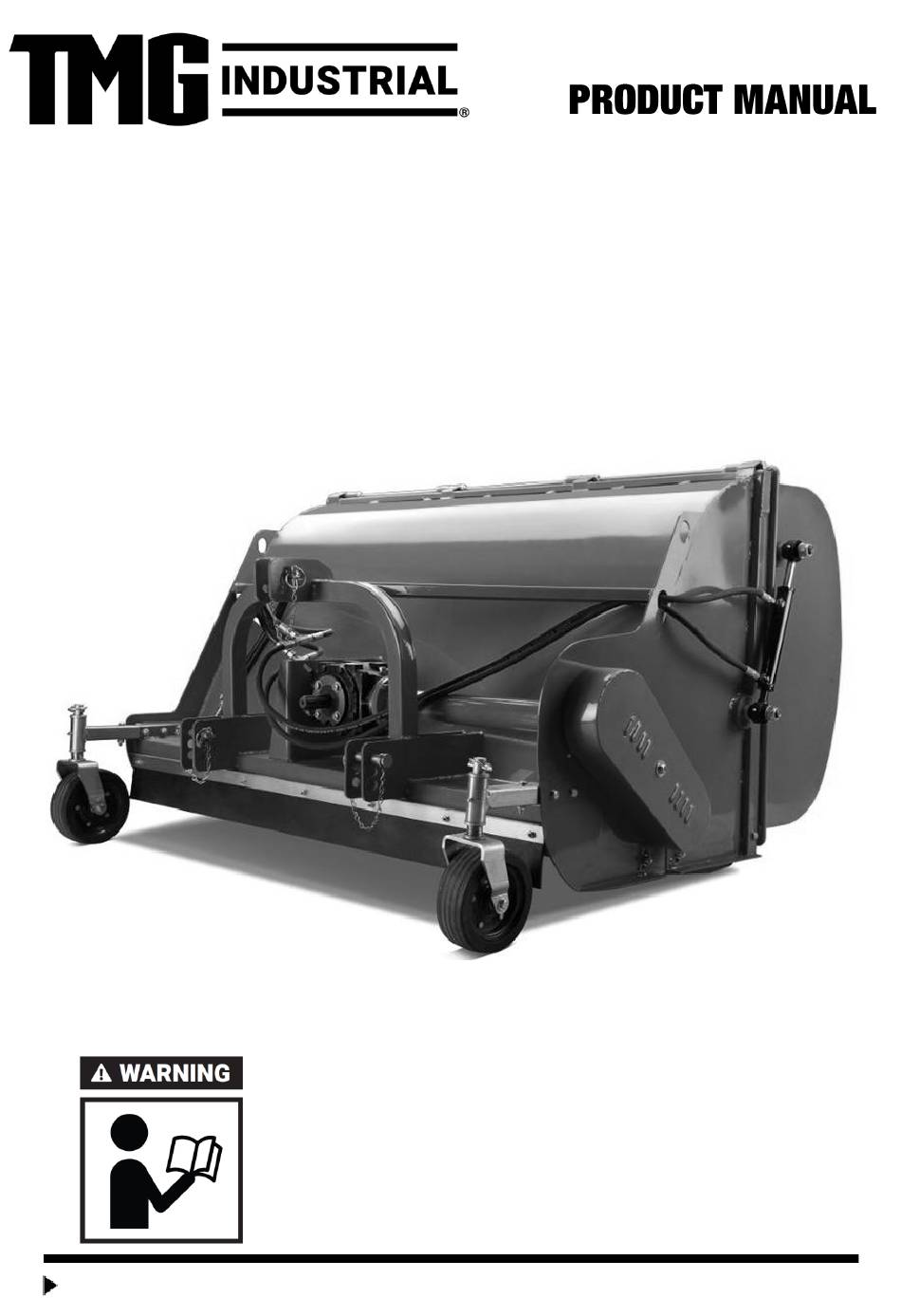

TMG -TFL60 Product Manual

3 pto flail collector

Hide thumbs

Table Of Contents

Table of Contents

Quick Links

Download this manual

TMG-TFL60

v.2024.10.5

3 PTO FLAIL COLLECTOR

• Please read and understand the product manual completely before assembly

• Check against the parts list to make sure all parts are received

• Wear proper safety goggles or other protective gears while in assembly

• Do not return the product to dealer. They are not equipped to handle your requests.

Missing parts or have questions on assembly?

Please call: 1-877-761-2819 or email: cs@tmgindustrial.com

w www.tmgindustrial.com

17/20

TOLL FREE:1-877-761-2819

Table of Contents

Need help?

Do you have a question about the TMG-TFL60 and is the answer not in the manual?

Questions and answers

Summary of Contents for TMG TMG-TFL60

Page 1 TMG-TFL60 v.2024.10.5 3 PTO FLAIL COLLECTOR • Please read and understand the product manual completely before assembly • Check against the parts list to make sure all parts are received • Wear proper safety goggles or other protective gears while in assembly •...
Page 2: Table Of Contents
TABLE OF CONTENTS USE OF EQUIPMENT ..............................2 REFFERENCE GUIDE ..............................2 IDENTIFICATION NOTE ............................2 WARRANTY ................................2 UTILISATION OF THE MACHIE ..........................3 SAFETY REGULATIONS ............................3 USE OF THE MACHINE ............................4 FITTING TO THE TRACTOR ............................ 5 ADJUSTING CUTTING HEIGHT ..........................
Page 3: Use Of Equipment
USE OF EQUIPMENT The present manual is integrate part of the machine and cover its necessary information for operation and maintenance. It is necessary read it carefully and follow the instructions. The manual, or copy of it, must be within reach always for any reference by the operator. Moreover we advise to contact the manufacturer for any necessity information, spare parts or fittings.
Page 4: Utilisation Of The Machie
our company. The guarantee is 12 months valid from purchasing date . The guarantee decay in case the information of the present manual are not respected, moreover decay incase of modification by the owner or fitted not original spare parts. Court to be due of Pad ova. UTILISATION OF THE MACHIE This flail mower is suitable for the cutting and collection by vacuuming of grass, leaves, moss and thatch on parks, gardens, sport grounds golf courses, public authorities etc.
Page 5: Use Of The Machine
USE OF THE MACHINE Pre-operation inspection and suggestions These checking must be executed with tractor power-off engine and P.T.O. disconnected. Check that the hydraulic plugs of the tubes are cleaned and in perfect conditions. Pay attention to the warning stickers on each greasing point. Before starting the machine, please make sure lubricate each grease point with grease or oil according to requirement on the warning stickers.
Page 6: Fitting To The Tractor
FITTING TO THE TRACTOR Put the tractor lifting arms inside the fixing supports of the machine 3-point hitch. See Fig. 2 Put the pin and fix it with the split pins connect the PTO shaft and check it is fixed in the proper way on tractor P.T.O. and on flail mower.
Page 7: Adjusting Cutting Height
fig.3 ADJUSTING CUTTING HEIGHT To adjust height of cut, act on front castor wheels by moving the spacers (See Fig. 5) It is possible to adjust the cutting height on rear roller ,by acting on the bolt (B) ( See Fig. 4). These operations must be effected with tractor power-off engine and P.T.O.
Page 8: Failures - Troubles - Solutions
fig.5 FAILURES - TROUBLES - SOLUTIONS FAILURE: The machine vibrates excessively. CAUSE: Broken flail. Broken rotor bracket. Broken drive support shaft. The worst: deformation of the rotor due to impacts. SOLUTION: Replace broken flails. Replace rotor support with original one. Replace shaft support with original one.
Page 9: Maintenance
FAILURE: The collector does not lift, open or close completely. CAUSE : There isn’t enough oil in the tractor. Presence or air inside the hydraulic jacks. SOLUTIONS: Add oil at the hydraulic tractor system. Tractor with insufficient oil capacity. Drainage in the machine hydraulic jacks. LEVEL OF DANGER : For the drainage hydraulic jacks, see paragraph relating maintenance .
Page 10: Stretching Adjustment Of The Driving Belts
STRETCHING ADJUSTMENT OF THE DRIVING BELTS This operation must be effected with power-off engine and P.T.O. disconnected. Take the belt guard off. (fig. 9A ) The right belt tightening is due acting to the nut (A) (see fig. 9A) and adjust the tightening, up to the right stretching (B) (see fig.
Page 11: Locking Of The Pulleys
fig.9B fig.9C LOCKING OF THE PULLEYS This operation must be effected with power-off engine and P.T.O. disconnected. Take the belts protecting guard off. Reduce belts stretching. Lock the joints. ( See Fig. 10 ) Check with the help of a bar that pulleys and belts must be lined up in order to prevent belts overheating and its wear ( See Fig.
Page 12: Replacement Of Flails
fig.11 REPLACEMENT OF FLAILS This operation must be effected with power-off engine and P.T.O. disconnected. The replacement of flails can be made in the following way : With the machine linked to the tractor : Lift the collector by the hydraulic distributor ; For replacing flails move on the direction shown from the harrow (C);...
Page 13 w www.tmgindustrial.com 12/20 TOLL FREE:1-877-761-2819...
Page 14: Winter Storage
WINTER STORAGE At the end of the season or when the machine is laid up for long period of time, it is necessary to : Wash the machine carefully and wipe it. Check the machine carefully and replace possible broken or worn parts. Tight all bolts and check the wear of the bolts, hooks, flails and its screws.
Page 15: Technical Characteristics
TECHNICAL CHARACTERISTICS MODEL TMG-TFL60 DIMENSIONS(mm) 1745X1435X1035 WEIGHT(kg) CUTTING WIDTH(cm) CUTTING HIGHT(mm) 20-50 ROTOR DIAMETER(mm) HAMMER POWER REQUIRED(hp) 28-50 GETTING RID OF THE MACHINE At the end of machine working life and before to be scraped by a special company, ensure that there in no oil into the gear box and in the in the hydraulic system of the machine in order to avoid any leak and ecological damages.
Page 16: Technical Advantages
TECHNICAL ADVANTAGES The double operation of cutting and scarifying at the same time moss and thatch aid :  The gaseous exchange with the atmosphere for the release of CO2 ;  The oxygen absorption, essential for the germination and growth ; ...
Page 17: Parts Illustrations
PARTS ILLUSTRATIONS w www.tmgindustrial.com 17/20 TOLL FREE:1-877-761-2819...
Page 18 Name & Specification Plain washer 20 Lock nut M20 Unloading cylinder Cylinder sleeve Tube assembly Reserve grass box weldment O-ring φ 10*1.9 Three joints O-ring φ 11*2.2 Tube assembly Combination washer G1/2 quick-change coupling Dust cover for quick-change coupling Bolt M8×25 Large plain washer 8 Lock nut M8 Lining plate weldment...
Page 19 Oil cup M6 Upper connecting pin Blade spacer Hammer Bolt M12×75 combination bolt M12×30 Outside Ball Bearings with Block UC207 Hammer (option) Blade axis weldment Suspension pin The hood body welding Bolt M16×1.5×50 Nut M16×1.5 Blade spacer (option) Y blade (option) Oil cup M8×1 TC Oil seal 55×80×8 Liner cover...
Page 20 Support Wheel Assembly Name & Specification Adjusting washer 6 Spring Oil cup M8×1 Roller frame weldment Lock pin Wheel fork welding parts Nylon spacer axle Rubber wheel Bolt M12×110 Plain washer 12 Lock nut M12 Roller connecting pipe Bolt M10×60 Plain washer 10 Lock nut M10 Bolt M10×65...
