Peblar Pole &

Pole Base

User and installation manual

Table of Contents

Need help?

Do you have a question about the Pole and is the answer not in the manual?

Questions and answers

Summary of Contents for peblar Pole

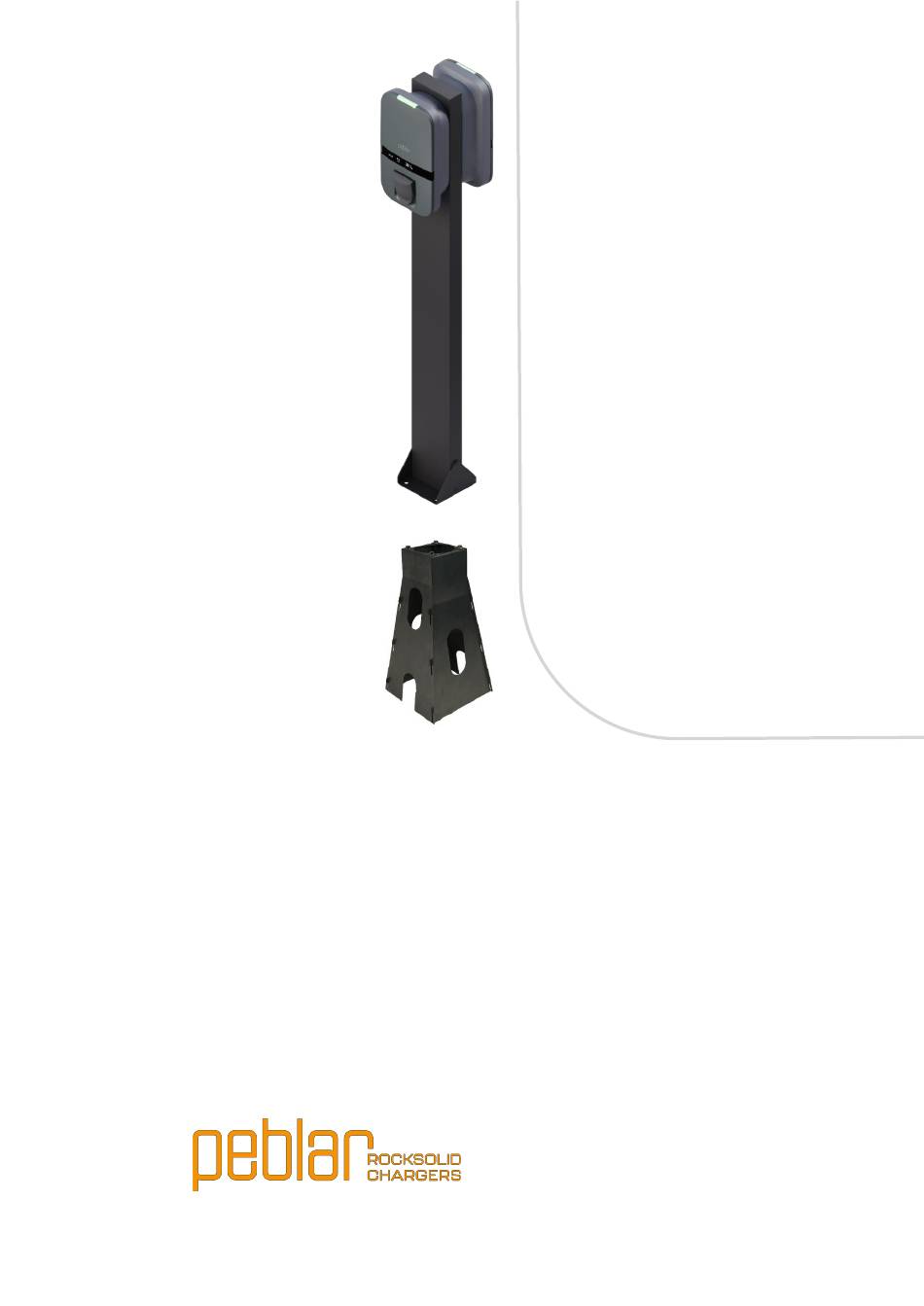

Page 1 Peblar Pole & Pole Base User and installation manual...
Page 2: Table Of Contents
3. INSTALLATION ..........................4 Unpacking ........................4 Required tools ........................7 Floor mount installation ....................... 8 Pole Base installation ......................9 Peblar charger installation ....................11 4. TRANSPORTATION, STORAGE ................... 13 5. OPERATION ..........................13 6. INSPECTION, MAINTENANCE, AND CLEANING ............. 13 7.
Page 3: Introduction
1. Introduction This user manual describes the safe and correct installation, maintenance, operation and dismantling of the Peblar Pole and Pole Base. 1.1 Manufacturer Details Name Prodrive Technologies N.E. B.V. Postal address Science Park Eindhoven 5501 Postal code 5692EM City...
Page 4: Product Information
The Peblar Pole is designed to be securely installed on concrete surfaces or onto the Pole Base, ensuring both stability and convenience. The Peblar Pole offers two options: the Peblar Pole Single for the installation of one Peblar, and the Peblar Pole Dual for accommodating two Peblars as illustrated on the table below.
Page 5: General Safety Information
Attention: Check local installation standards for additional requirements to install the Peblar Pole and Pole Base. 3.1 Unpacking Remove the Peblar Pole and optionally the Pole Base from its packaging. Verify that the products are undamaged. Ensure that the local regulations are followed when disposing of the packaging material. Separate the plastic and cardboard waste.
Page 6 Verify the content of the Peblar Pole package: Number Description Size Quantity Peblar Pole Hexagon head anchoring bolt 8x70 Plain washer for anchoring Nylon anchoring plug Countersunk screw for base assembly M5x20 1 (+1*) Flat head screw for base assembly...
Page 7 Verify the content of the Pole Base package: Number Description Size Quantity Plate A Plate B Mounting bolt M10x20 www.peblar.com | APRIL 2025...
Page 8: Required Tools
Size Power drill* Drill bit* 10 mm Spirit level Hexagon socket drive (Pole) 13 mm Hexagon socket drive (Pole Base) 15 mm Cable cutter Wire stripper Crimp tool for tubular cable lugs 6 mm² cable lug Torx screwdriver Torx screwdriver...
Page 9: Floor Mount Installation
3.3 Floor mount installation Follow these steps only for floor mount Peblar Pole installations. For the Pole Base installation, continue to 3.4. Step 1: Preparing the surface Prepare a flat and level concrete surface. Encase protective tubes (1) in the concrete for the cable routing of the mains power supply and data cables.
Page 10: Pole Base Installation
3.4 Pole Base installation Follow these steps only for the Peblar Pole installation on the Pole Base. For floor mount installations, refer to 3.3. Step 1: Prepare a hole Prepare a hole at least 600 mm deep below top pavement level.
Page 11 Route the installation cables through the bottom of the Pole Base or the side openings depending on the installation cable depth. Place the Pole Base level in the hole, with the top flush with the pavement surface. Optionally, add mortar mix to stabilize the Pole Base, depending on the soil.
Page 12: Peblar Charger Installation
3.5 Peblar charger installation WARNING: Check local installation standards for the regulations for providing protection against electric shock from the Peblar Pole. It is recommended to ground the Peblar Pole via the PE terminal inside the Peblar according to the following steps.
Page 13 Fasten the PE wire to the charger base and front assembly using cable ties (6). WARNING: Perform a PE continuity check, before proceeding with the charger installation. Follow the instructions of the Peblar charger installation manual to complete the installation process. www.peblar.com | APRIL 2025...
Page 14: Transportation, Storage
5. Operation Attention: Do not apply excessive force to the Peblar Pole. Attention: Do not use the Peblar Pole for other purposes than the installation and operation of Peblar chargers. Do not install any other equipment in or on the pole.
Page 15: Dismantling, Disabling, And Disposing
Do not use a pressure washer. Although the Peblar Pole is made from durable materials with a strong powder coating that provides excellent resistance to corrosion, the lifetime of the product is not infinite. Inspect the product on a regular basis and repair or dispose the product when it is not safe to use anymore.
Page 16 The use of third-party names, logos, or products is for reference only and does not imply endorsement or affiliation unless explicitly stated. For support, contact sales@peblar.com © 2025 by Peblar. All rights reserved. www.peblar.com | APRIL 2025...
