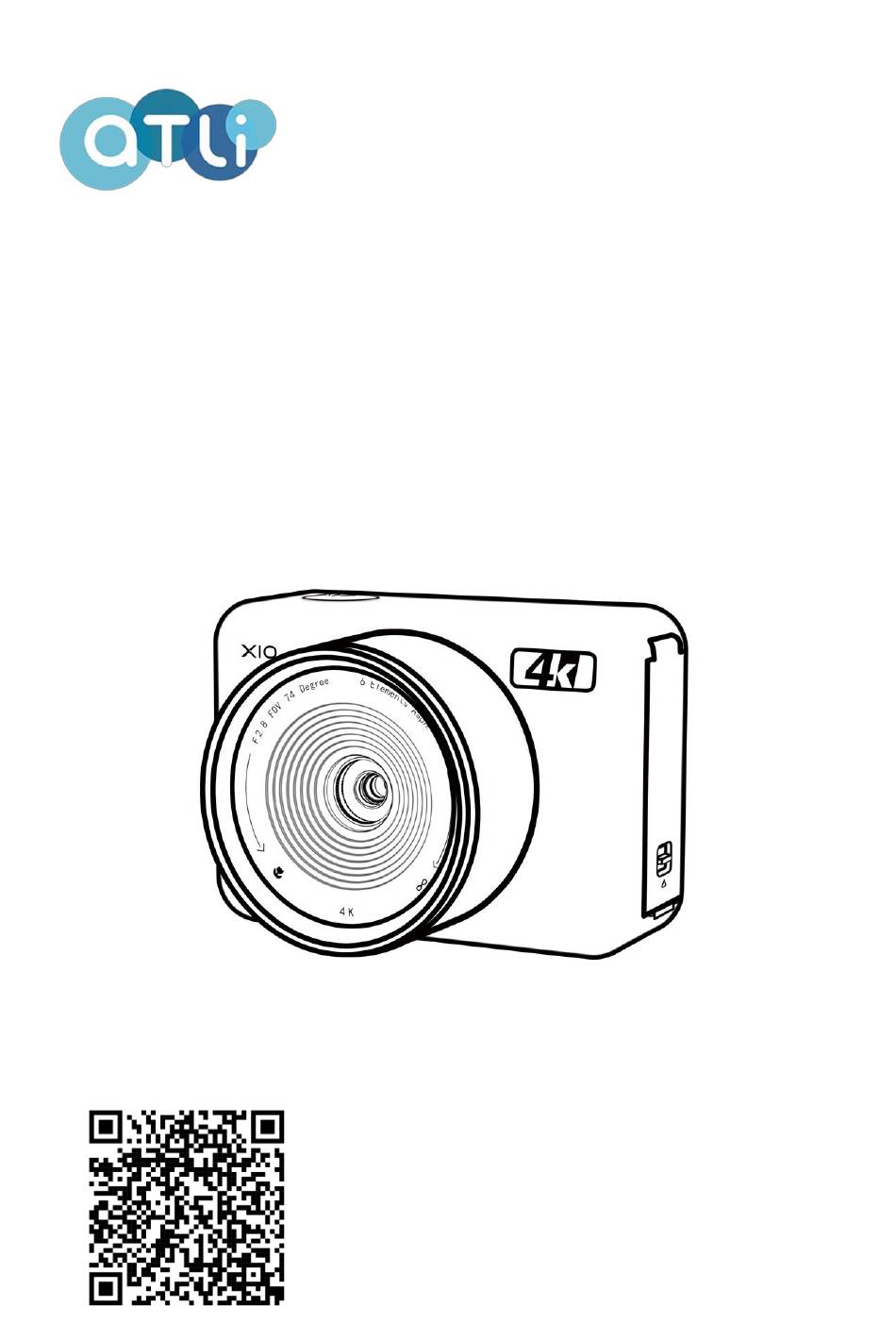

- Page 1 4K Time Lapse Camera Quick User Guide To access the electronic version of the guide, simple scan the QR code with your smartphone or tablet.
-
Page 2: The Camera Body
The Camera Body Power Button Microphone Lens Silicone Cover 52mm UV Filter USB-C Port Filter Mount 2.5mm Digital I/O Socket Focus Ring Charging Indicator Battery/Memory Card Door Wi-Fi Indicator Battery/Memory Card Door Latch Battery Latch Operation Indicator MicroSD Card Slot ¼”-20 Tripod Mount Camera QR Code Battery Compartment... - Page 3 Pull down the door latch until the battery door pops open. Align the battery so that the "ATLI" logos are facing the same direction as the logo on the back of the camera case. Use the battery to push down...
-
Page 4: Memory Card
Memory Card Inserting Memory Card Open the Battery/Memory Card door. Orient the card so that the metal contacts are facing toward the front side of the camera and the card cutout is facing down. Slide in the memory card until it clicks. - Page 5 UV Filter (52mm) To take off the UV filter from the lens, hold the edge of the filter and twist counterclockwise until it comes loose. Add-On Filter This product is designed to accommodate standard 52mm filters, allowing for enhanced functionality of the camera to align with artistic vision and adapt to various shooting conditions.
-
Page 6: Status Indicators
Status Indicators The camera features three essential status indicators: Charging: Displays battery level and power status. Wi-Fi: Indicates mode and Wi-Fi connectivity. Operation: Reflects camera’s operational status. Indicator Color Status Green Breathing Charging Charging Green Steady Fully Charged Battery ≤20% Red Blinking Yellow Steady Ready for Direct Connection... -
Page 7: Camera Registration
Scan the QR code located at the bottom of the camera to proceed. Account Sign Up and Login To fully leverage the capabilities of your ATLI camera, we recommend creating an account. This will register cameras under your account to ensure persistent access across devices. -
Page 8: Manual Focus
Cam+ app displays a live view from the camera. For detailed instructions, please scan the QR code on the right to read the X10 In-App Control Instruction Manual. Manual Focus This camera has a manual focus feature to help you capture sharp images. -
Page 9: Specifications
Specifications General Dimensions 860*600*675mm Weight 210g (With Battery) Weatherproof IP64 Supported SD Cards Max. 512GB microSD Camera Sensor 1/1.8” OMNIVISION® CMOS Pixel Size 2µm*2µm Lens 6 Elements Aspherical Lens 74° Focal Length 4.2mm ISO Range 100 - 3200 Shutter Speed 1/20K –... - Page 10 Resolution: 3840*2160@30FPS Video Mode 1920*1080@30FPS Support File System exFAT Photo Format JPEG Video Format Video Encoding H.264 Battery Type Rechargeable Li-ion Capacity 4400 mAh Voltage 3.8V Limited Voltage 4.35V Charging Temperature 5° to 45° (32° to 113°F) Operating Temperature -10° to 50° (14° to 122°F) Connection Dual-band Wi-Fi 5 (IEEE 802.11 Wi-Fi Protocol...
-
Page 11: Limited Warranty
Limited Warranty This product is covered by a one-year limited warranty from ATLI World Limited, effective from the date of purchase. Coverage This warranty covers repairs or replacements for defects in materials and workmanship under normal operating conditions. It does not cover damages caused by misuse, accidents, unauthorized modifications, or normal wear and tear. -
Page 12: Fcc Statement
FCC Statement This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.
