Summary of Contents for XONTEL XT-05

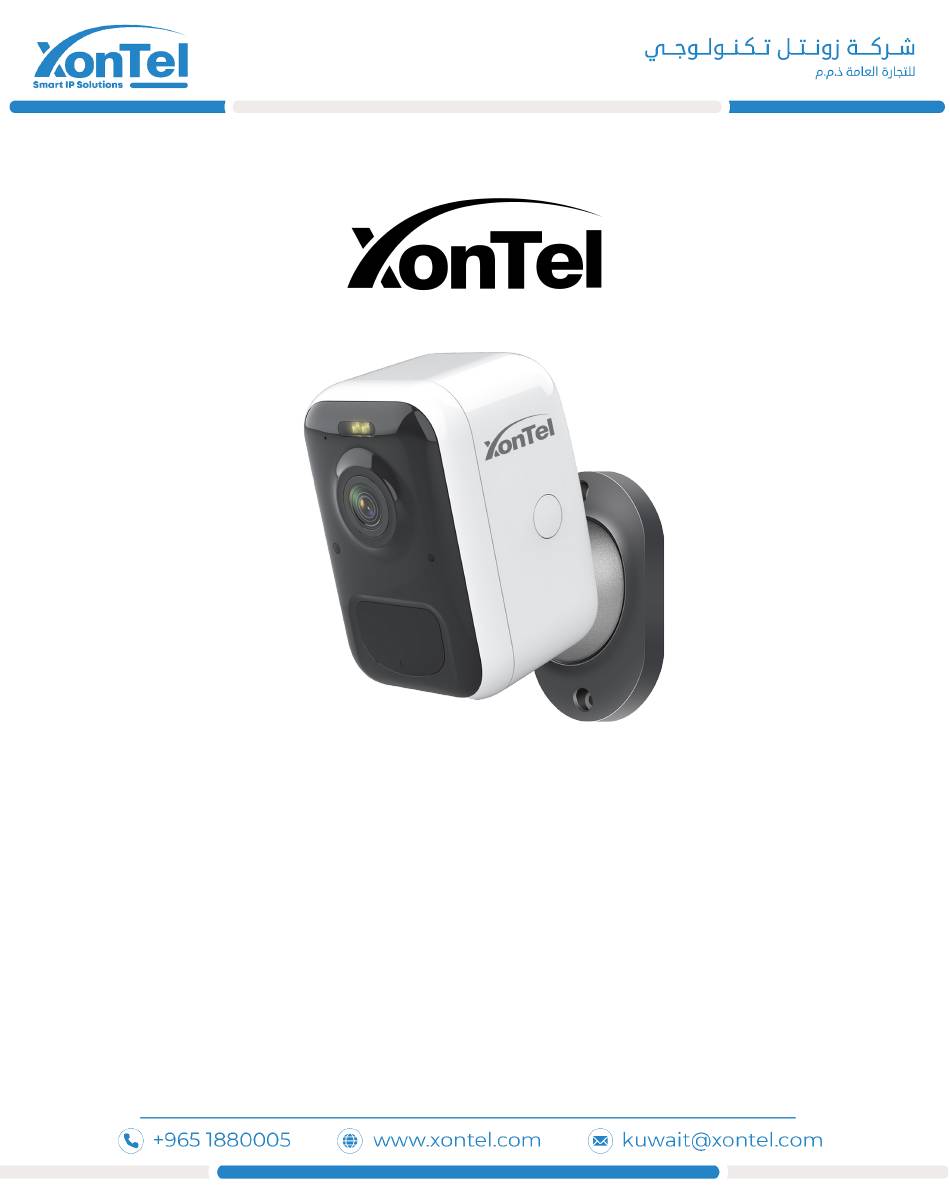

- Page 1 XT-05 Wi-Fi Security Camera User manual...
-
Page 2: Table Of Contents
Content Content.................. 2 Packing list................3 Product appearance...............4 Power on/off and network configuration......5 Quick start................6 Set up the camera..............8 Share the camera..............13 Install the camera..............15 Adjust the angle..............17 Charge the camera...............18 Indicator light status............19 Product specification............19 Firmware upgrade............... -
Page 3: Packing List
Packing list Battery Camera Mount Bracket USB Cable User Guide Adhesive Tape Screw Set... -
Page 4: Product Appearance
Product appearance LED Light. Microphone 3 MP Camera LED Indicator PIR Motion Sensor Back Shell Open Button Threaded Bracket Interface Strong Magnetic Chuck Speaker Power button & Type-C Port... -
Page 5: Power On/Off And Network Configuration
Reset hole TF-card Slot Power on/off and network configuration ● Long press the power button for 3s to power on/off the device. ● Double click the power button to enter the network configuration mode after the prompt tone. *When connecting the camera for the first time, use the Vico App and follow the instruction to configure the camera network. -
Page 6: Quick Start
Quick start The wireless smart battery camera supports battery- powered supply Download and install Vico App The wireless smart battery camera supports Android and iOS apps. To get the best experience, scan the QR code or search for "Vico" in the App Store to download and install the app. - Page 7 Add the device Sign in to the Vico App, connect to Wi-Fi, and follow the prompts to add the device. Please ensure that the device is close to the router during the configuration process.
-
Page 8: Set Up The Camera
Set up the camera In the app, click "Add Device" and enter the Wi-Fi network name and password for the camera's connection. - Page 9 For extended-range connectivity, the camera exclusively supports 2.4GHz Wi-Fi with enhanced wall penetration capability. It does not currently support enterprise-level authentication for Wi-Fi. Please ensure that the entered Wi-Fi network meets these requirements. Once done, click "Continue" to generate the QR code for camera pairing.
- Page 10 After a 3-second press of the camera switch, it will power on. Aim the camera at the mobile app's QR code from a distance of approximately 20 cm (7 inches) until you hear a "Di" sound, indicating successful scanning and the start of pairing. Power button...
- Page 11 After some time, the camera will emit a prompt sound indicating a successful connection. At this point, please set the device's name in the app and choose the desired location for the device placement. Click "Continue" to finish the pairing process.
- Page 12 Possible problems with binding: ● "Wi-Fi Password Error": Check if the entered Wi-Fi password in the app is correct. ● "Authentication error": Ensure that your Wi-Fi network is not an enterprise-level network and that the device supports security levels below WPA-2. ●...
-
Page 13: Share The Camera
Share the camera To allow other family members or friends to view the camera, there is a sharing function available. Only the administrator users who initially set up the camera can share and manage the device. Other members can only access the live view and playback functions of the camera. - Page 14 ● Click “Invite”, and a QR code will be generated for sharing. ● For the members you need to share, find “Add a Friend’s Camera” in the “User” page to enter the scanning page. ● Scan the QR code on your mobile phone, and you will receive the confirmation notification after success.
-
Page 15: Install The Camera
Install the camera You can place the camera on a shelf or other surfaces to use, or you can install it on a wall to use. Select a good spot for your camera Please install the camera in a position where its view is not blocked and ensure that it is within the coverage of the Wi-Fi network. - Page 16 2. Install the bracket 3M adhesive fixing: ● Remove the protective film from one side of the 3M adhesive. ● Stick the exposed adhesive side to the desired mounting surface on the bracket. ● Remove the protective film from the other side of the adhesive.
-
Page 17: Adjust The Angle
Screw fixing: Using the drilling tool, create holes on the wall based on the hole distance of the base. It is advisable to mark the hole positions on the wall using a pencil before drilling. Insert the expansion nuts into the drilled holes on the wall. -
Page 18: Charge The Camera
Charge the camera Vico App will remind you to charge your camera when the battery is low. Please use the Micro USB cable to plug into the 5V/1.5A charging adapter to charge the camera. During charging, the camera's indicator light is solid yellow, and when the camera is fully charged, the indicator light will turn into solid green. -
Page 19: Indicator Light Status
Indicator light status Mode Status Working mode Blue Sleep mode Charging mode Yellow Fully charged mode Green Product specification Mode Status Camera lens Field of view: 110° Image resolution Max. 2304 X 1296 Video bit/rate Adaptive Storage media Micro SD card (Up to 128GB) Battery capacity 4500mAh/4500mAh *2... -
Page 20: Firmware Upgrade
Firmware upgrade When you connect your camera through the Vico App, it will prompt you if the latest firmware is available. You can also manually check the firmware upgrade in the settings of the App. *Please make sure that your camera is fully charged or connected to the power adapter before upgrading the firmware, please do not cut off the power supply during the upgrading. - Page 21 If the equipment causes interference to radio or television reception, the user can try the following measures to correct the interference: ● Reorient or relocate the receiving antenna. ● Increase the distance between the equipment and receiver. ● Connect the equipment to a different circuit than the receiver.
-
Page 22: Faq
Q: How to invite family and friends to use my camera together? A: Open the Vico App, select your camera, and click the share button to generate a QR code. Your friends can scan the QR code to access the camera. - Page 23 Q: How far should the camera be placed from the router? A: The Wi-Fi connection distance can reach up to 150 meters in an open area, but it depends on Wi-Fi strength and the surrounding environment. If the signal is weak or unstable, place the camera closer to the router.
