Summary of Contents for ReadyLinks IPC-1CP-RPF
- Page 1 Reverse Power Feed over Troubleshooting Guide Coax Modem Version 1.0.0 Model: IPC-1CP-RPF...
-

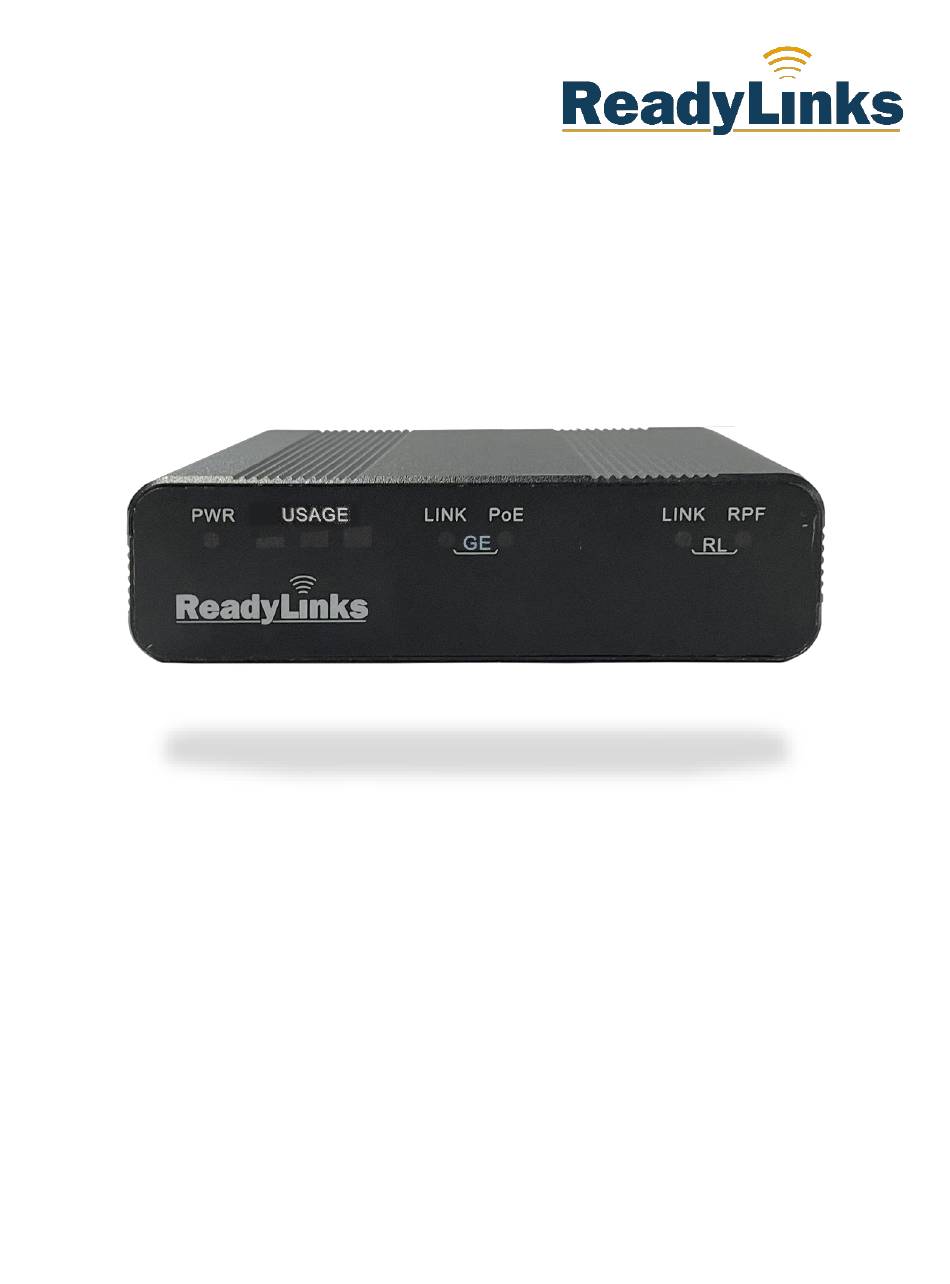

Page 2: Hardware Overview
The device has established data link on the coax port. Green (Blinking) The device is connected to another ReadyLinks device and is authenticating. The port is disconnected or is not connected to another ReadyLinks device. Green The device is providing reverse power to the connected ReadyLinks device. -
Page 3: Ports And Buttons
Ports and Buttons GE port Standard 10/100/1G/2.5G PoE++ Ethernet interface for LAN connectivity. RL port Ethernet over coax, reverse power feed compatible, ReadyLink port. USB PD Type-C port for local power for the device. LED Button to enable or disable (“dark mode”) the LEDs on the device. Reset Button to factory reset the configurations on the device. - Page 4 Ethernet to the customer home router. A. Connect a coax cable from the coax port on the IPC-1CP-RPF to a coax outlet. B. Connect the power cord to the IPC-1CP-RPF then to an electrical outlet.
- Page 5 Troubleshooting Tips Coax Connection Failure 1. The first thing to check is whether the ReadyLinks device is powered on and is connected to the coax outlet. Check the RL LINK LED on the front of the device. Check the coax cable connecting to the ReadyLinks device to make sure it is properly connected on both ends.
-
Page 6: Specifications
2. Hold the LED button on the backside of the device down for 2 seconds to turn on the LEDs. Specifications IPC-1CP-RPF Dimensions 1” (H) x 3.75” (W) x 2.6” (D) Weight <1lbs Enclosure material Metal Networking interfaces (1) 10/100/1G/2.5G Ethernet port... -
Page 7: Safety Notices
Safety Notices 1. Read, follow, and keep these instructions. 2. Heed all warnings. 3. Only use attachments/accessories specified by the manufacturer. WARNING: Do not use this product in a location that can be submerged by water. WARNING: Avoid using this product during an electrical storm. There may be a remote risk of electric shock from lightning. - Page 8 e. Protective bonding must be installed in accordance with local national wiring rules and regulations.
