Inel ORS Series Installation And Operating Instructions

The ORS-X1T radio receiver is a device intended for controlling control
units of various manufacturers (e.g. for sliding gates, swing gates, etc.)
with all Inel remote controls.
1. Safety instructions
1.1 Basic guidelines
The ORS-X1T radio receiver is commissioned in a state
for safe installation and use, provided that all instructions in the operating
manual and the valid safety and accident prevention regulations
applicable to the application (e.g. gate or roller shutter) are observed.
Only qualified and authorised persons should work on the installation
and repair of electrical equipment.
Conversions or modifications to the ORS-X1T receiver are not
permitted. Warranty repairs may only be carried out by the manufacturer.
For post-warranty repairs, use only original spare parts and accessories.
The operational safety of the supplied ORS-X1T receiver is only
guaranteed when used in accordance with the manufacturer's
specifications. The limit values specified in the technical data
must not be exceeded under any circumstances.
1.2 Supplementary safety provisions
When installing, commissioning, maintaining the control unit, the
important safety and accident prevention regulations applicable to the
application (e.g. gate or roller shutter) must be observed. The following
regulations require special attention:
1. Fire regulations
2 Accident prevention provisions.
1.3 General comments on hazards and safety measures
The specified notes are general guidelines for the use of INEL controls
in combination with other devices. These instructions must be strictly
adhered to during installation and operation of the devices.
CAUTION Warning of possible damage to the control or
other fixed values if appropriate precautions are not taken.
Danger - Indicates that there is a danger to the life and
health of the user if appropriate precautions are not taken.
• Check the fixing of all screw connections before installing the control
and setting the limit switches.
• Observe the safety and accident prevention regulations applicable to
the application (e.g. gate, roller shutter).
• The installation of the ORS-X1T must be carried out with the safety
and protective devices required by the relevant regulations. Controls
containing crush protection systems with a sensor mounted on the
door, which relies on the door contacting an obstacle, must not cause
injury resulting from the movement of the door.
Instructions translated EN
Installation and operating instructions
Single-channel radio receiver TYPE: ORS
Model:
ORS-X1T
• In the case of INEL devices with a constant mains supply, a circuit
breaker providing a safe voltage break (e.g. a fuse disconnector) must
be used for the control in addition to the fuse protection, installed so
that all connections can be easily disconnected.
• Conductors and cables should be checked regularly for insulation
damage and localised breaks.
• If cables are found to be damaged, the damaged cables must be
replaced after the mains supply has been switched off immediately.
• Before switching on, it is necessary to check that the permissible
device voltage is compatible with the local supply voltage.
1.4 Warning - important for personal safety:
• do not let children play with the controls;
• keep the remote control out of the reach of children;
• keep an eye on the moving device (e.g. gate, awning) and keep people
away until it is fully open or closed;
• users of the gate must be trained and instructed in the operation of the
gate and the dangers inherent in its use. People may be considered
trained if the employer, administrator or owner has allowed them to
operate the gate and has instructed them on how to use it.
2. Installation instructions
The ORS X1T radio remote control receiver allows control of a single
device. The outputs of the radio receiver are a pair of terminals connected
to the relay contacts.
The radio receiver can work with remote controls:
PIL-02/04XB, PIL-01/05/09/19DL, PIL-19/99DLT, PIL-01/05HN,
PIL- 01/05/09/19PM, PIL-19/99PMT, PIL-01PT, PIL-01/04NS,
PIL- 19/99MMT, PIL-99TST.
In the case of remote controls of the DL, HN, PM, PT, NS and MMT
series, the decoder will operate when the "up" or "down" buttons are
pressed. The relay contacts will disconnect approximately 1 second after
the button on the remote control is released. Simultaneous pressing of
both buttons on the remote control will not trigger the radio receiver.

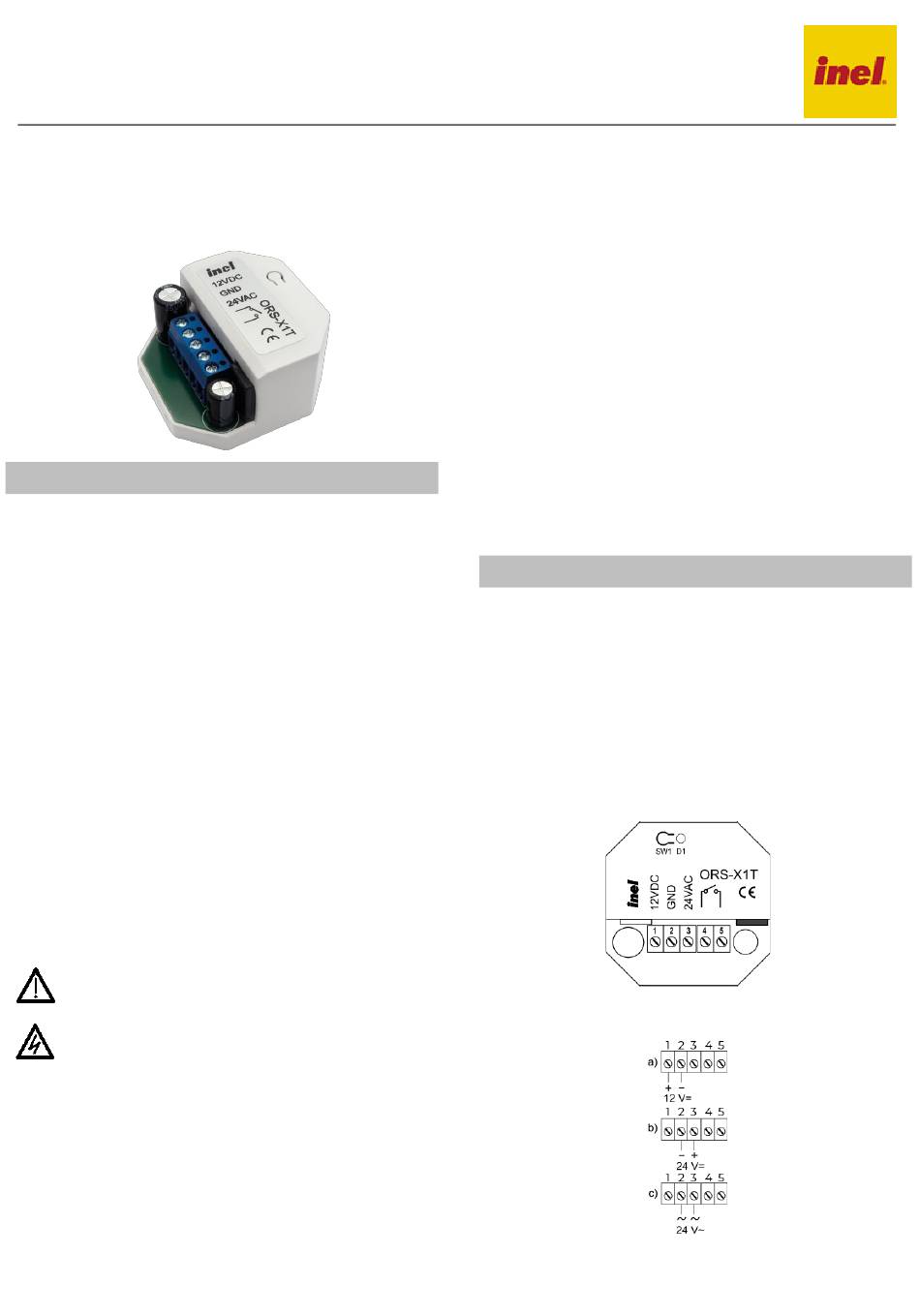

Figure 1 View of the receiver
Figure 2 Power connection
