Summary of Contents for S-Track OSTRICH XD Series

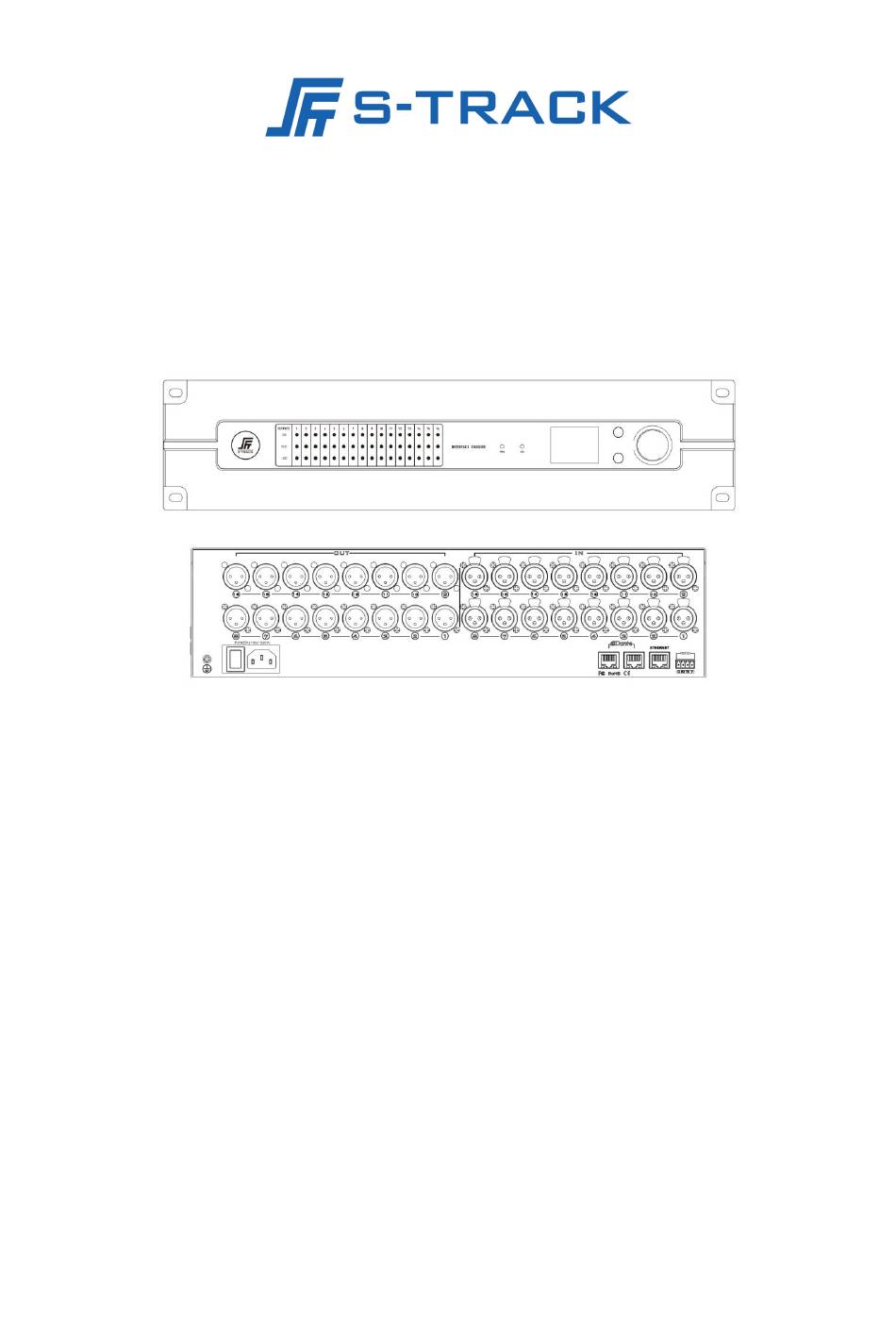

- Page 1 OSTRICH XD Series Dante Interface Chassis User Manual...
-
Page 2: Symbol Conventions
OSTRICH XD Series Dante Interface Chassis Preface The purpose of this section is to ensure that the user is able to use the product correctly through this manual in order to avoid danger in operation or property damage. Before using this product, please read the product manual carefully and keep it for future reference. - Page 3 OSTRICH XD Series Dante Interface Chassis Always unplug the unit's power adapter from the AC power outlet before: A. Removing or reinstalling any part of the equipment; B. Disconnecting or reconnecting any electrical plug or connection of the equipment. Do not operate with electricity.
- Page 4 OSTRICH XD Series Dante Interface Chassis − Basic knowledge and skills in low voltage cabling and wiring of low voltage electronics. − Basic audio and networking knowledge and skills and the ability to read and understand the contents of this manual.
-
Page 5: Table Of Contents
OSTRICH XD Series Dante Interface Chassis TABLE OF CONTENTS Chapter 1 Product Introduction ......................1 1.1 Introduction ........................1 1.2 Functions ..........................1 Chapter 2 Specification ........................2 Chapter 3 Interface Description ......................3 3.1 Front Panel ......................... 3 3.2 Rear Panel .......................... 4 Chapter 4 Instructions for Use ...................... -
Page 6: Chapter 1 Product Introduction
OSTRICH XD Series Dante Interface Chassis Chapter 1 Product Introduction 1.1 Introduction This product is an audio interface device based on the international Dante protocol, capable of converting analog audio signals into digital ones and routing them through the Dante protocol to any Dante audio transmission network device. -
Page 7: Chapter 2 Specification
OSTRICH XD Series Dante Interface Chassis Chapter 2 Specification Number of Analog Input Channels 8/16 Number of Analog Output Channels 8/16 Dante Input channels 8/16 Dante Output channels 8/16 Input Gain Amplification 0dB ~ 42dB,6dB per level Sampling Rate 24bit... -
Page 8: Chapter 3 Interface Description
OSTRICH XD Series Dante Interface Chassis Phantom Power Operating Temperature 0℃-40℃ Power Supply AC 110V-220V,50Hz/60Hz Power Consumption ＜40W Product Weight Product Size 486×176×110mm Chapter 3 Interface Description 3.1 Front Panel Signal Indicator,Clipping Indicator,Phantom Power Indicator; Power Indicator:Light on indicates normal power supply,otherwise abnormal;... -
Page 9: Rear Panel
OSTRICH XD Series Dante Interface Chassis 3.2 Rear Panel POWER: Power supply interface, connect 110V-220V AC power supply, warp switch control processor power; Dante: Dante network audio transmission interface, equipped with primary and secondary dual network interface, can be used for redundant backup of Dante network signals;... -
Page 10: Chapter 4 Instructions For Use
OSTRICH XD Series Dante Interface Chassis Chapter 4 Instructions for Use 4.1 Screen Panel for Use 4.1.1 Main Interface 4.1.2 Input Channel Interface Phantom:For providing 48V voltage to condenser microphones;... -
Page 11: Output Channel Interface
OSTRICH XD Series Dante Interface Chassis Sensitivity:input channel sensitivity adjustment,with steps of 3dBfs per level; Input mute:For input channel muting configuration. 4.1.3 Output Channel Interface Output mute:For output channel mute configuration 4.1.4 Configuration Network: For manually configuring or automatically obtaining network IP addresses;... -
Page 12: Client Network Configuration
OSTRICH XD Series Dante Interface Chassis 4.2 Client Network Configuration To power on the device, connect it to the network switch using an Ethernet cable. The INPUT port is used to connect microphones, mixers, or PCs, while the OUTPUT port is used to connect to amplifiers or active speakers. -
Page 13: Setup Interface Introduction
OSTRICH XD Series Dante Interface Chassis 4.3.3 Setup Interface Introduction The setup interface allows you to configure the network latency of this interface machine within Dante, as well as perform resets and other functions. The RS232 interface permits control over the interface machine by third-party central control devices and panels. -
Page 14: Central Control Code Generator
OSTRICH XD Series Dante Interface Chassis 4.3.4 Central Control Code Generator The central control code is in hexadecimal format. 4.4 Dante Network Audio Routing In a Dante audio network, the Dante Controller software is required to set up the routing of the various signals accessing the processor. -
Page 15: Chapter 5 Packing List
OSTRICH XD Series Dante Interface Chassis Note: 1, Dante can not run in the Wi-Fi wireless connection environment, is dependent on a reliable and secure wired network environment to transmit perfect audio; 2, Dante Controller software corresponds to the platform of Windows 7, Windows 10, Windows 11, macOS, please select the appropriate software version according to your system platform. -
Page 16: Warranty Regulations
Warranty Regulations The warranty period of this product is 1 year. In the warranty period of non-man-made damage caused by the product performance failure can enjoy three packages of service. Warranty card by the sales unit stamped after the effective. The alteration is invalid! The following conditions (including, but not limited to, this) are not covered by the three-package service: 1. - Page 17 SHENZHEN S TRACK SCIENCE TECHNOLOGY CO., LTD Web: www.s-track.com.cn Tel:+86 755 29983191 Mail:service@s-track.cn Add: 9F, 1B, Shangzhi Technology Park, Guangming District, Shenzhen City, Guangdong Province, China 518107...
