Summary of Contents for SoliTek Vega

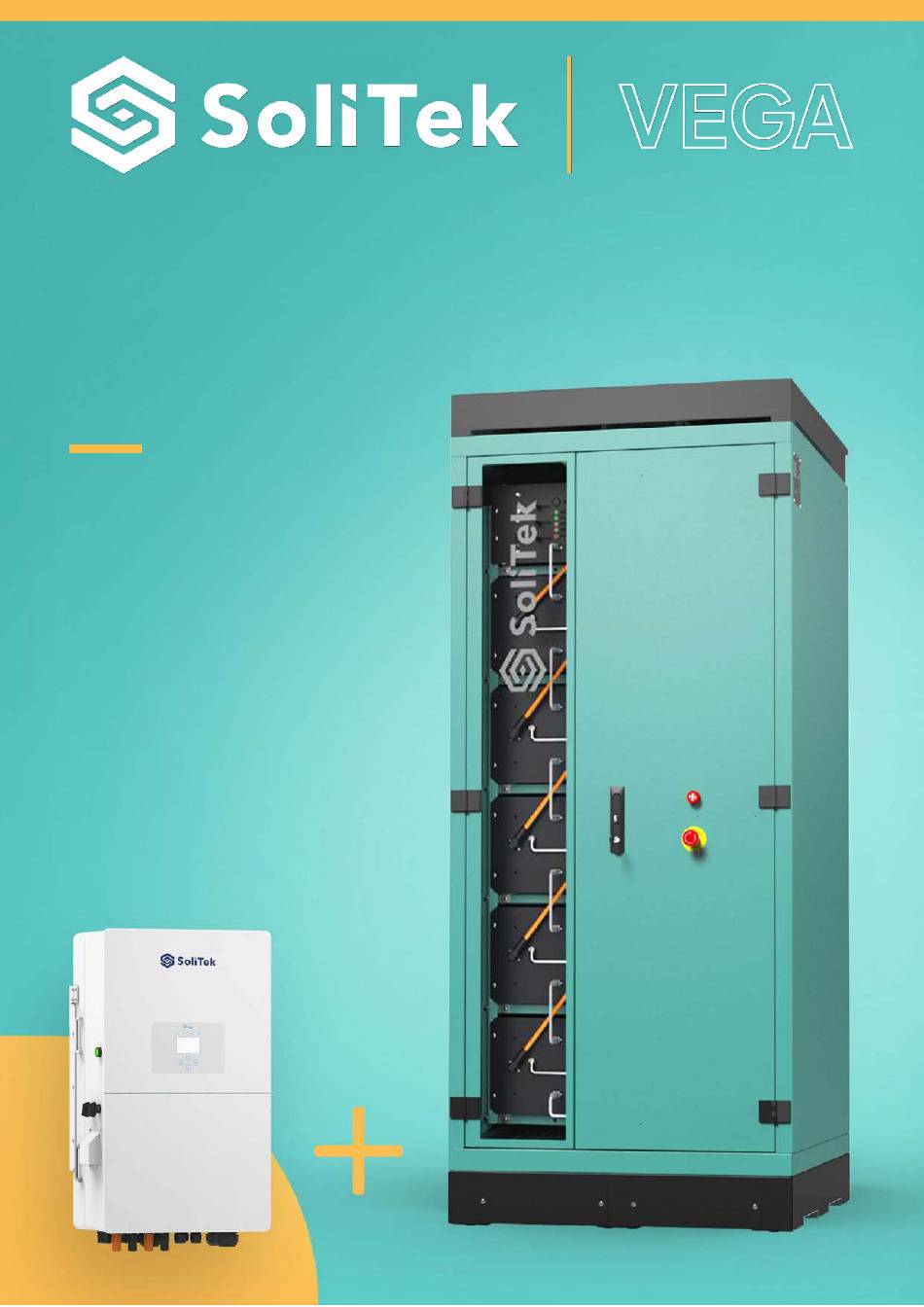

- Page 1 Rev. 20250402 PRODUCT INFORMATION Installation Manual Energy storage with control system...
-
Page 2: Table Of Contents
Safety measures Storage IMPORTANT INFORMATION ABOUT THIS MANUAL INSTALLATION 1.1. Scope Package items Components of the battery storage system SoliTek VEGA Battery cabinet with control box package General safety information Battery pack package Disclaimer Installation of VEGA cabinet Appropriate use... -
Page 3: Important Information About This Manual
SCOPE This Installation Manual is intended for the modular high-voltage battery storage system, SoliTek VEGA. Carefully read this manual to ensure proper and secure installation, initial commissioning, and maintenance of the SoliTek VEGA. These tasks must be performed by qualified and authorized specialists. -
Page 4: Disclaimer
To mitigate risks, follow these precautions: The SoliTek VEGA is a modular lithium battery storage system designed with the latest • Avoid subjecting the battery module to strong impacts or forceful handling. -
Page 5: Fire
WET BATTERY Battery Data Number of battery packs If the battery is wet or submerged in water, do not try to access it. Contact SoliTek Customer Care via email at info@solitek.eu or your distributor for technical assistance. Nominal capacity 40 kWh (lC) -
Page 6: Automatic Fire System
Grid Do not breathe in the fumes. Inverter The controller is powered both from the SoliTek VEGA control box when it is on, and an internal Home Router expendable battery, when the SoliTek VEGA control box is off. On-Grid... -
Page 7: Structural Composition
SOLITEK VEGA PRODUCT INTRODUCTION STRUCTURAL COMPOSITION CONTROL BOX SCHEME The SoliTek VEGA system features an integrated design, consisting of a single cabinet that houses a control box and accommodates up to 10 battery packs inside. SYSTEM INTRODUCTION System Scheme: Lock and handle... -
Page 8: Installation Requirements
RJ45 plug crimper (25mm (25mm tubular lugs (25mm Connect VEGA battery with Inverter** To protect the operator and installer’s safety, please select and use suitable tools and measuring instruments that are certified for precision and accuracy. Commissioning** Contact your distributor... -
Page 9: Storage
SoliTek VEGA Installation STORAGE If the SoliTek VEGA is not to be installed immediately or removed from operation and needs to be stored for a long period, please choose an appropriate location to store it. Instructions for storage are: •... -
Page 10: Battery Pack Package
Power Cable Grounding Data Cable cable INSTALLATION OF VEGA CABINET Install the VEGA Cabinet in a place that meets the requirements listed in Note INSTALLATION POSITION. All ten Battery packs should be installed on the Rack INSTALLATION OF BATTERY PACKS •... -
Page 11: Commissioning Of The Inverter
Click the “Basic Setting” Disable “Lock out all changes”, PSW - 7777 Check/set Year/Month/Day and Hour/Minutes Check/set Year/Month/Day and Hour/Minutes COMMISSIONING OF SOLITEK VEGA BATTERY SYSTEM TURN ON THE SOLITEK VEGA BATTERY BASIC GRID-SETTINGS Turn on (position UP): Push and hold ON button for 5 s;... -
Page 12: Connect Vega To The Local Wi-Fi Network
Password – solitek1 Battery Charge/Discharge Rate, W - 50000 Battery Mode – Self Consumption Save ADD SOLITEK VEGA BATTERY TO SOLITEK VIEW CLOUD Select Add new plant Choose Device – Power meter Enter VEGA ID (found on the cabinet Choose Manufacturer - Deye... -
Page 13: Troubleshooting
Battery and Inverter Turn on the Internal control circuitry circuit breaker; DC OK Turn ON Battery No lights Contact the Solitek Customer Care team via email at info@solitek.eu; GREEN Turn on the Ventilator control circuitry circuit breaker; FAN DC OK Turn ON Battery;... -
Page 14: Annex 1
Usage No live data on App Check the Wi-Fi router (if you changed the Wi-Fi password, please reconnect VEGA to Wi-Fi with a new password); Check the EMS data cable between VEGA and inverter; Check the Modbus ID on the Inverter and App, should be the same ID;... - Page 15 PRODUCT INFORMATION Energy for all your needs www.solitek.eu...
