EN Push Button Dual
Flush Valve
5059340756424
5059340756639
5 Dec 2023 16:23:47
5 Dec 2023 16:23:47
Advertisement
Related Manuals for Kingfisher 5059340756424
Summary of Contents for Kingfisher 5059340756424
- Page 1 EAN: 5059340756424 01/11/23 05/12/23 XX/XX/23 XX/XX/23 XX/XX/23 Page Size: A5 Impala Ref: PRJ29321 NAME NAME NAME KNG: KNG-2995-8 EN Push Button Dual Flush Valve EN IMPORTANT - These instructions are for your safety. Please read through them thoroughly prior to handling the product and retain them for future reference.

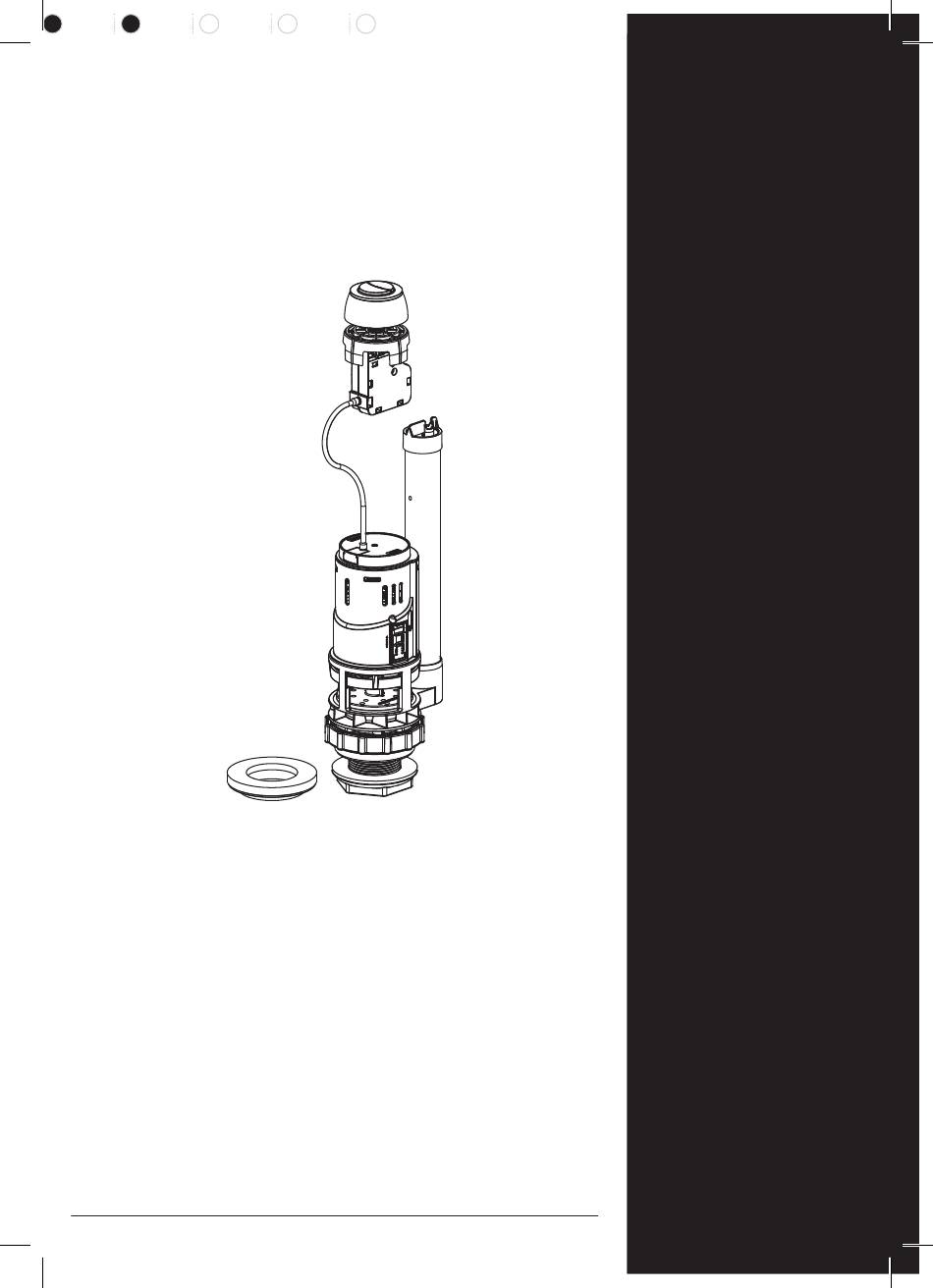

- Page 2 EN Parts 01. x1 02. x1 03. x1 04. x2 EN You will need EN Contents Safety Guarantee Assembly Care & maintenance 5059340756424_MNL_IN_V02.indb 2 5059340756424_MNL_IN_V02.indb 2 5 Dec 2023 16:23:47 5 Dec 2023 16:23:47...
-
Page 3: Before You Start
EN Safety Removal of existing valve Before you start If this is a new installation and you have no existing valves in your cistern, move straight onto step 1 of • Ensure that this product is suitable for the the installation. installation you have and that all component listed are provided before starting the If you have a flush valve already installed, please... - Page 4 5059340756424_MNL_IN_V02.indb 4 5059340756424_MNL_IN_V02.indb 4 5 Dec 2023 16:23:48 5 Dec 2023 16:23:48...
- Page 5 IMPORTANT - RETAIN Guarantee THIS INFORMATION We take special care to select high quality materials and use manufacturing techniques that allow us to FOR FUTURE create products incorporating design and durability. This product has a manufacturer’s guarantee of REFERENCE: 10 years against manufacturing defects, from the date of purchase (if bought in store) or date of READ CAREFULLY delivery (if bought online), at no additional cost for...
- Page 6 EN Assembly 01. x1 Cut height X It is important to make sure the overflow is cut to the correct height before installing. If installed without cutting to the correct height, the valve will need to be removed. If you had a valve already installed, this step is quite easy. Using the measurement from Step A of the “Removal of existing valve”...
- Page 7 Before installing the flush valve, we recommend that the installer adjusts the full and half flush settings to where they are felt to be most economical. These can be adjusted after installation also if needed. 02. x1 • The larger button section is used to provide a larger flush volume. This can be adjusted as shown in section A.
- Page 8 The flush valve is supplied with the option to fit a 1 1/2" cistern outlet [A1] or 2” cistern outlet [A2]. Depending on the cistern outlet size, fit the corresponding seal to the flush valve. Install the flush valve to the cistern and secure in place with the washers and backing nut provided.
- Page 9 03. x1 04. x2 • Fit your cistern back to the toilet pan with the new bolts, nuts and washers provided. Remember to install the doughnut seal (03) between the cistern and the pan. • Secure the cistern screws with hand force. Do not over tighten. With the valve fitted, the installer can now fit the new button to the lid.
- Page 10 Φ16-50 mm EN Care & maintenance To correctly maintain the flush valve we recommend cleaning the seal every 6 months, or sooner if you live in a hard water area. Follow the detailed instruction below on how to access the flush valve seal for cleaning. Isolate the water first so not to waste water.
- Page 11 Replace the seal making sure the seal is in the correct orientation. Follow the instructions in reverse to reinstate the flush valve to working conditions Manufacturer : EU Manufacturer: Kingfisher International Products B.V., UK Manufacturer: Rapenburgerstraat 175E, Kingfisher International Products Limited,...
