OSHA 29 CFR 1910.140, 1926.502
; For identification of product codes, refer to Table 1. See "Table 1 - Product Specifications" for more product information.
Model
Style
3100271
1
A
B
V
W
X
ANSI Z359.18-2017 (Type A)

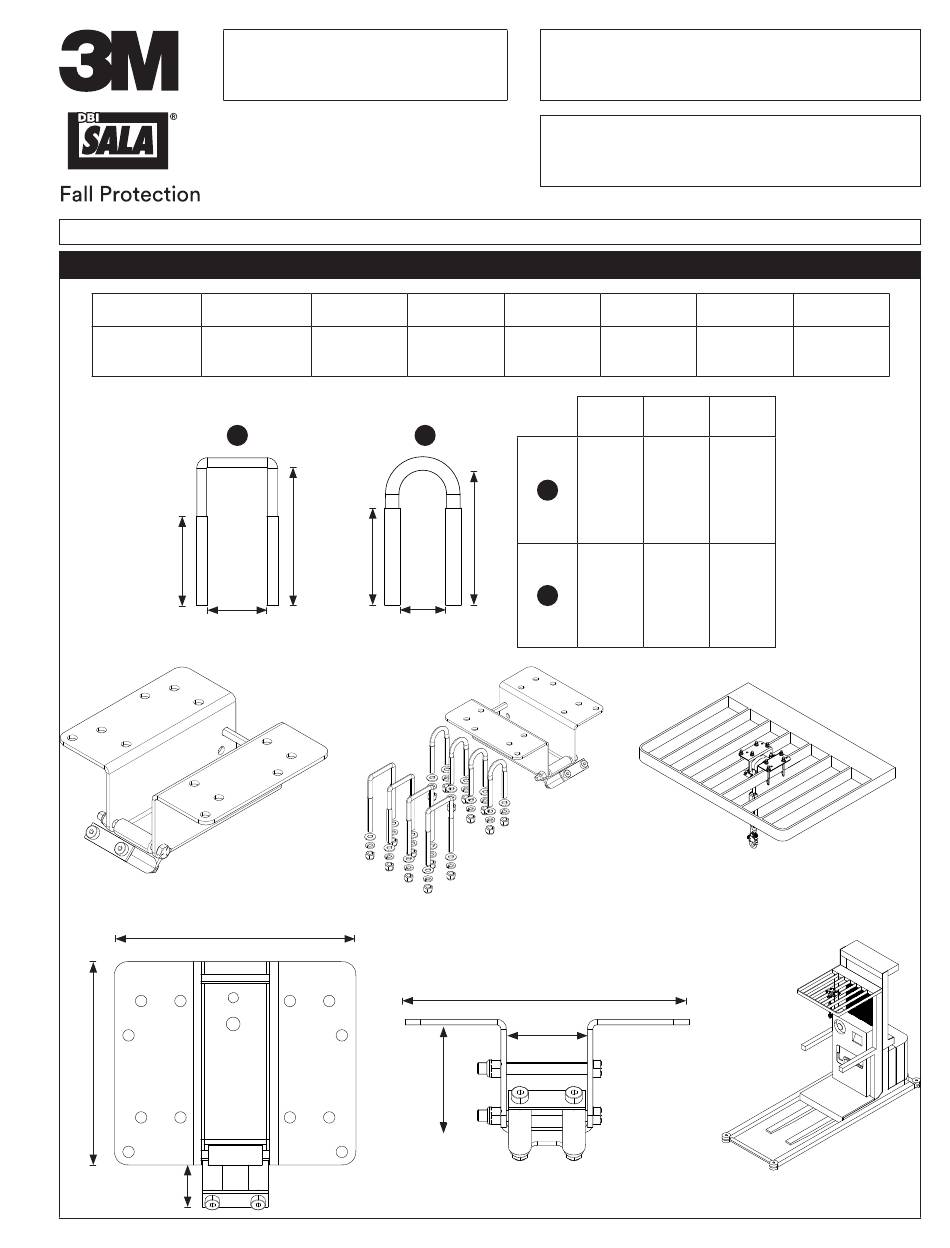

Figure 1 - Product Overview
V
9.2 in.
A
(23.4 cm)
(19.7 cm)
2
C
A
B
Z
CAB TOP MOUNTING BRACKET
W
X
7.75 in.
1.71 in.
(4.3 cm)
A
3.00 in 4.63 in 2.00 in
1
C
2.38 in 3.31 in 1.13 in
2
V
Y
3M™ DBI-SALA
USER INSTRUCTIONS
5903470 R
. D
Ev
Y
Z
2.63 in.
3.5 in.
(6.7 cm)
(8.9 cm)
B
C
®
lb. (kg)
11.4 lb.
(5.2 kg)
© 3M 2025
Advertisement
Table of Contents
Related Manuals for 3M DBI-SALA 3100271
Summary of Contents for 3M DBI-SALA 3100271
- Page 1 9.2 in. 7.75 in. 1.71 in. 2.63 in. 3.5 in. 11.4 lb. 3100271 (23.4 cm) (19.7 cm) (4.3 cm) (6.7 cm) (8.9 cm) (5.2 kg) 3.00 in 4.63 in 2.00 in 2.38 in 3.31 in 1.13 in © 3M 2025...
-
Page 2: Safety Information
Never exceed the maximum free fall distance specified for your Fall Protection equipment. Do not use any Fall Protection equipment that fails inspection, or if you have concerns about the use or suitability of the equipment. Contact 3M Technical Services with any questions. -
Page 3: Product Overview
Always ensure you are using the latest revision of your 3M instruction manual. Visit www.3m.com/userinstructions or contact 3M Technical Services for updated instruction manuals. PRODUCT OVERVIEW: Figure 1 illustrates the product models covered by this instruction. The Cab Top Mounting Bracket is a single point anchorage connector for a personal fall arrest system designed to be used for mounting Self-Retracting Devices (SRD) on the cab top of an order picker or other similar equipment. -
Page 4: Component Specifications
Before using this equipment, record the product identification information from the ID label in the ‘Inspection and Maintenance Log’ at the back of this manual. Table 1 – Product Specifications System Specifications: Capacity: Maximum capacity 310 lb. (140 kg) per ANSI, 420 lb. (190 kg) per OSHA. Anchorage: ANSI compliance and testing only covers the bracket and hardware. -
Page 5: Product Application
Hazards may include, but are not limited to: high heat, chemicals, corrosive environments, high voltage power lines, explosive or toxic gases, moving machinery, sharp edges, or overhead materials that may fall and contact the user or equipment. Contact 3M Technical Services for further clarification. - Page 6 MAKING CONNECTIONS: All connections must be compatible in size, shape, and strength. See Figure 4 for examples of inappropriate connections. Do not attach snap hooks and carabiners: To a D-Ring to which another connector is attached. In a manner that would result in a load on the gate. Large-throat snap hooks should not be connected to D-Rings or other connecting elements, unless the snap hook has a gate strength of 16 kN (3,600 lbf) or greater.
-
Page 7: Installation
INSTALLATION OVERVIEW: Anchorage connectors must be secured to an anchorage structure before they can be used. After this is done, users may secure to the product through its anchorage connection points. PLANNING: Plan your Fall Protection system before starting your work. Account for all factors that may affect your safety before, during, and after a fall. - Page 8 Figure 6 - Installing the Self-Retracting Device MOUNTING THE CAB TOP MOUNTING BRACKET: Mount the bracket (with the attached SRD) on the Cab Roof Cross Members (X). See figure 7 for reference. Locate the bracket as directly above the work area as possible to minimize potential swing fall.
- Page 9 DEFECTS: If the product cannot be returned to service because of an existing defect or unsafe condition, then the product must be either destroyed or sent to 3M or a 3M-authorized service center for repair. PRODUCT LIFE: The functional life of the product is determined by work conditions and maintenance. As long as the product passes inspection criteria, it may remain in service.
-
Page 10: Labels And Markings
DEFINITIONS: The following terms and definitions are used in these instructions. For a comprehensive list of terms and definitions, please visit our website: www.3m.com/FallProtection/ifu-glossary • AUTHORIZED PERSON: A person assigned by the employer to perform duties at a location where the person will be exposed to a fall hazard. - Page 11 Figure 9 - Product Labels 5,000 lbs. (22.2kN) MBS ANSI Minimum service ANSI Z359.18-2017 TYPE A temp. is -30°F (-34°C) 3M.com/FallProtection MFRD. (YR, MO) / FABR. (AN, MO): LOT #: MODEL NO / N° DE MODELE:...
-
Page 12: Inspection Procedure
Table 2 – Inspection and Maintenance Log Model Number (Serial Number): Date Purchased: Date of First Use: ··· This product must be inspected by the user before each use. Additionally, a Competent Person other than the user must inspect this equipment at least once each year. ···... - Page 13 LIMITED REMEDY: Upon written notice to 3M, 3M will repair or replace any product determined by 3M to have a factory defect in workmanship or materials. 3M reserves the right to require product be returned to its facility for evaluation of warranty claims. This warranty does not cover product damage due to wear, abuse, misuse, damage in transit, failure to maintain the product or other damage beyond 3M’s control.
