Summary of Contents for ReadyLinks IPC-2TCP-RPF

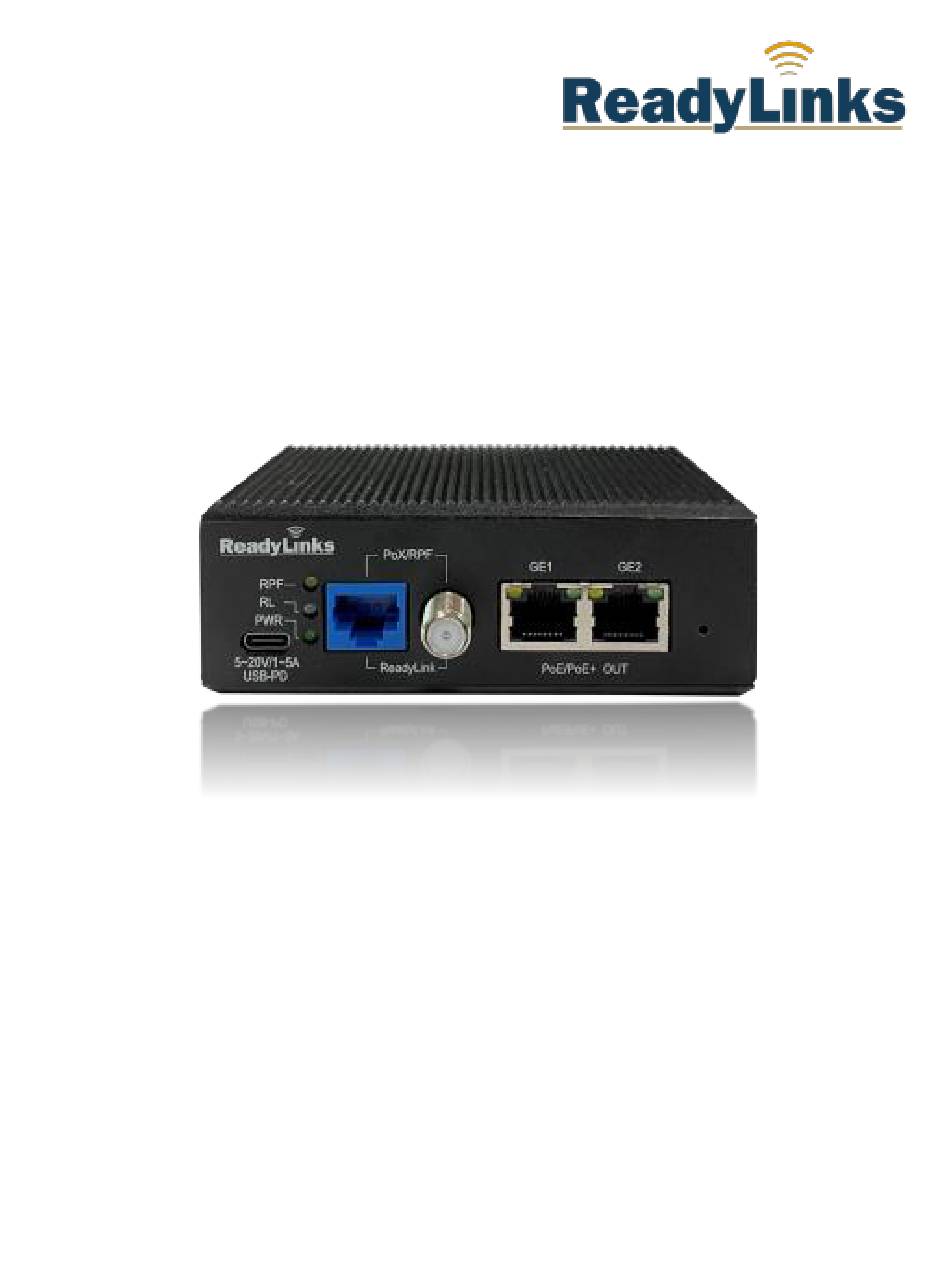

- Page 1 Ethernet over Coax/Twisted Pair Client Installation Guide Model: IPC-2TCP-RPF Introduction...
-
Page 2: Package Contents
Thank you for purchasing the ReadyLinks IPC-2TCP-RPF Ethernet over coax/twisted pair managed client. This Installation Guide is designed to guide you through the installation and includes warranty terms. Package Contents Mounting screws IPC-2xTCP-RPF • Phillips screwdriver • Drill and drill bit... - Page 3 Orange The IPC is providing reverse power. Blinking The IPC is failing to provide reverse power. Check out the cabling instructions for some troubleshooting tips The IPC is not providing reverse power Ethernet (GE) Yellow 10Mb link Green 1Gb link No link ReadyLink Green...
-
Page 4: Hardware Installation
Reset The reset button can be used to factory reset the device. USB Type C Input power port for USB-PD power supplies. Note: The USB Type C power port on the IPC-2TCP-RPF accepts a wide range of voltage. If you are planning to utilize the reverse power function, ensure the power supply can supply enough power. - Page 5 • ReadyLinks switch with PoX. Specifications IPC-2TCP-RPF 1.25” (H) x 4” (W) x 3” (D) Dimensions Weight <1lbs Management interface ReadyLinks switch, ReadyView Networking interfaces (1) RL twisted pair/coax combo port (2) 1GbE PoE+ PoE interfaces (2) PoE+ ports (1) 30W + (1) 15W...
-
Page 6: Safety Notices
Safety Notices 1. Read, follow, and keep these instructions. 2. Heed all warnings. 3. Only use attachments/accessories specified by the manufacturer. WARNING: Do not use this product in a location that can be submerged by water. WARNING: Avoid using this product during an electrical storm. -
Page 7: Limited Warranty
The limited warranty requires the use of arbitration to resolve disputes on an individual basis, and, where applicable, specify arbitration instead of jury trials or class actions. TERMS OF USE: ReadyLinks devices must be professionally installed. Shielded Ethernet cable and earth grounding must be used as conditions... - Page 8 of product warranty. It is the professional installer’s responsibility to follow local country regulations, including operation within legal frequency channels, output power, and Dynamic Frequency Selection (DFS) requirements.
