Summary of Contents for Hideaway Storm Shelter FXII

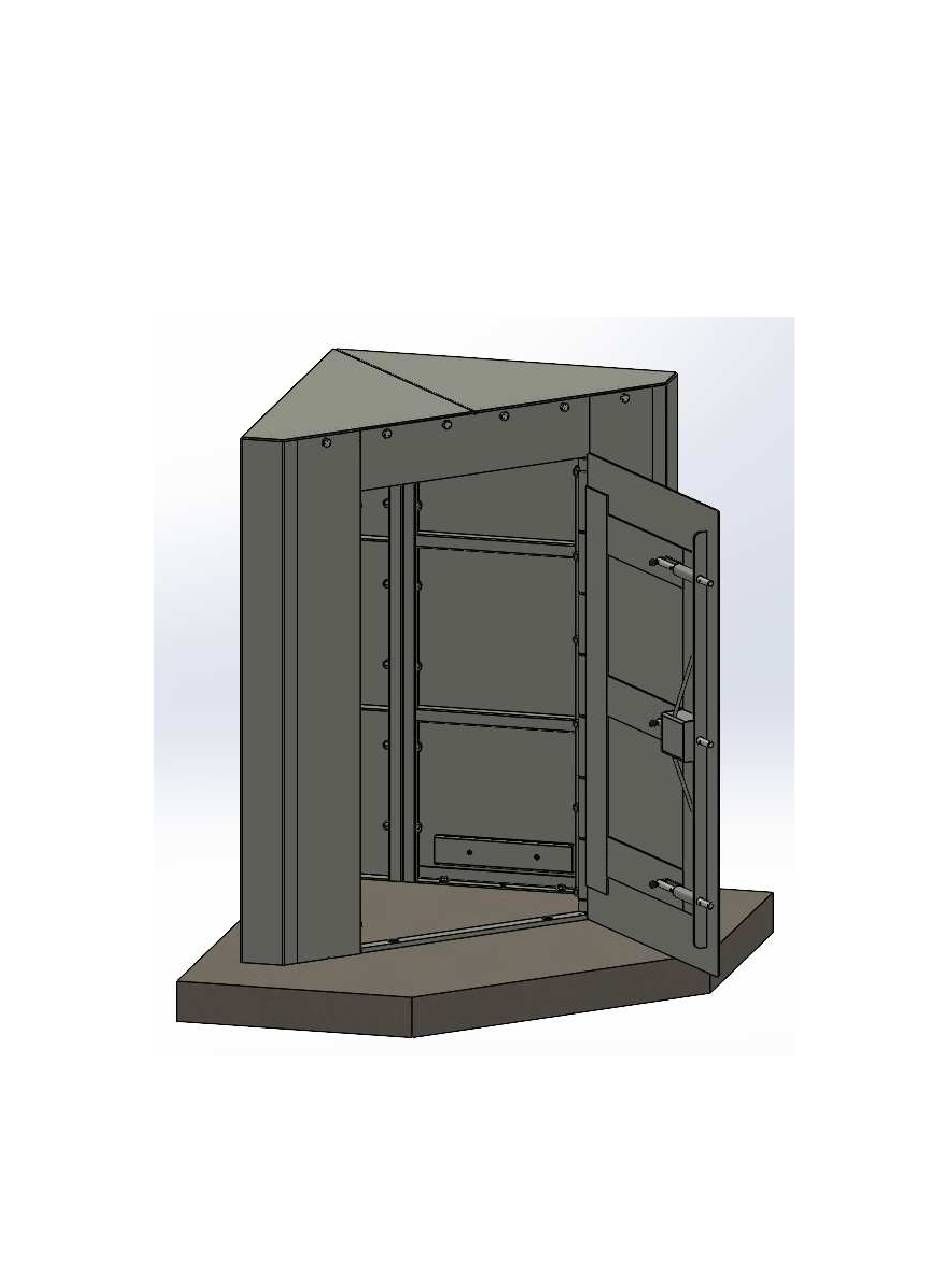

- Page 1 Hide Away Storm Shelter™ FXII Corner Assembly Instructions 7/1/2024 Page 1 of 9...
- Page 2 The Hide-Away shelter is designed and tested to give maximum protection and many years of safe shelter from storms. Before attempting to install the shelter read this manual & follow the safe operational procedures and warnings to prevent injury and or death. Warning: never use shelter in the event of fire! Warning:...
- Page 3 Install fasteners hand tight only until the entire shelter is assembled. This will aid in allowing all panels to line up appropriately. Step 1: Attach the Corner Rear Panel to a side Wall Panel using 3/4” x 5” bolts and locking nuts. Corner Rear Panel Wall Panel Step 2: Attach the other side Wall Panel to the...
- Page 4 Step 3: Attach Corner Front Left Panel and Corner Front Right Panel to the side Wall Panels using 3/4" x 5” bolts and locking nuts. Corner Front Left Panel Corner Front Right Panel Step 4: Attach Left Door Jamb to Corner Front Left Panel using 3/4"...
- Page 5 Step 5: Slide the Door Header into the Left and Right Door Jamb Panels. Door Header Step 6: Attach Door Header to Door Jamb using a 3/4" x 3-1/2” bolt and locking nut on the non-hinging side of the door opening only. Step 7: Attach Door Threshold using 3/4"...
- Page 6 Step 8: Attach the Left Ceiling Panel to the top of the shelter using 3/4" x 3-1/2” bolts and locking nuts. Step 9: Attach the Right Ceiling Panel using the same hardware as the Left Ceiling Panel in Step 8. Step 10: Attach the Right Ceiling Panel to the Left...
- Page 7 Step 11: Tighten all fasteners in corners, wall panels, and ceiling panels. Step 12: With the shelter in it’s final position, drill 5/8” holes 4-1/2” deep using a concrete bit and hammer drill. There are eleven holes to drill. Two holes per Wall Panel, one in each Corner...
- Page 8 Step 15: Attach the Door Assembly to the Door Jamb using 3/4" x 4” bolts and locking nuts through the Door hinge. The bolts will also pass through the Door Header tab at the top and the Door Threshold tab at the bottom. *Door swing may be opposite from shown Step 16: Attach the Door Threshold Cover...
- Page 9 Step 17: Slide the Door Latch Bars into the Door as shown. Step 18: Insert the 1/4" x 3- 1/2” bolt through the Latch Bar. Step 19: On the outside, attach a locking nut onto the Latch Bar bolt. NOTE: DO NOT OVERTIGHTEN, THE LATCH BAR MUST SLIDE FREELY...
