Summary of Contents for Projecta PM4SWLED

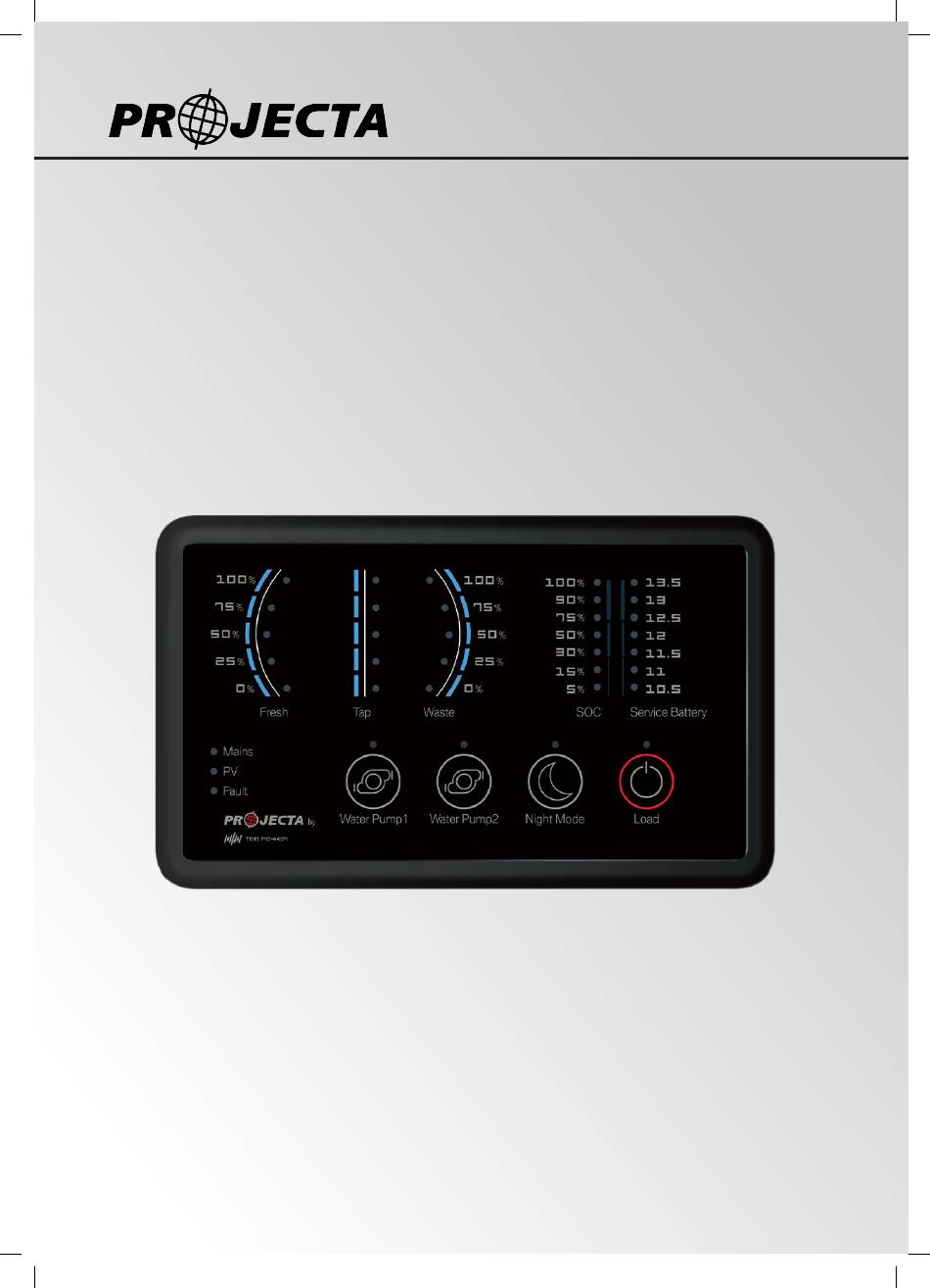

- Page 1 PM4SWLED INSTRUCTION MANUAL...
-
Page 2: Important Safety Information
IMPORTANT SAFETY INFORMATION Please read this manual thoroughly before use and store in a safe place for future reference. WARNINGS • Explosive gases. Prevent flames and sparks. Provide adequate ventilation during charging • Before charging, read the instructions • For indoor use ONLY. Do not expose to rain •... -
Page 3: Table Of Contents
CONTENTS 1 Product Instructions ........................4 Overview Features 2 Display ............................5 3 Structure and Installation ......................6 4 Specification ..........................7... -
Page 4: Product Instructions
Product Instructions 1.1 Overview The PM4SWLED monitor is a versatile and user-friendly device designed to work seamlessly with Projecta’s range of power management systems. It features an intuitive LED display that provides real-time information about the system’s status, allowing users to monitor the water tank levels and battery status at a glance. It also allows the user to control up to two pumps and the system’s power supply with the push of a button. -
Page 5: Display
Display Name Type Description Water Pump1 DC Load Control Load control, ON/OFF control Water Pump2 DC Load Control Load control, ON/OFF control Night Mode Scene Mode Charger fan will be turned off or decreased in speed Load DC Load Control Load control, ON/OFF control Fresh Water Tank Sensor... -
Page 6: Structure And Installation
Structure and Installation... -
Page 7: Specification
Specification Model PM4SWLED Input 12Vd.c PHYSICAL SPECIFICATION Dimension 150mm*90mm*24mm Weight 200g Protection Category IP20 Approvals CISPR14... -
Page 8: Warranty Statement
WARRANTY STATEMENT Applicable only to product sold in Australia Brown & Watson International Pty Ltd of 1500 Ferntree Gully Road, Knoxfield, Vic.,telephone (03) 9730 6000, fax (03) 9730 6050, warrants that all products described in its current catalogue (save and except for all bulbs and lenses whether made of glass or some other substance) will under normal use and service be free of failures in material and workmanship for a period of five (5) year (unless this period has been extended as indicated elsewhere) from the date of the original purchase by the consumer as marked on the invoice.
