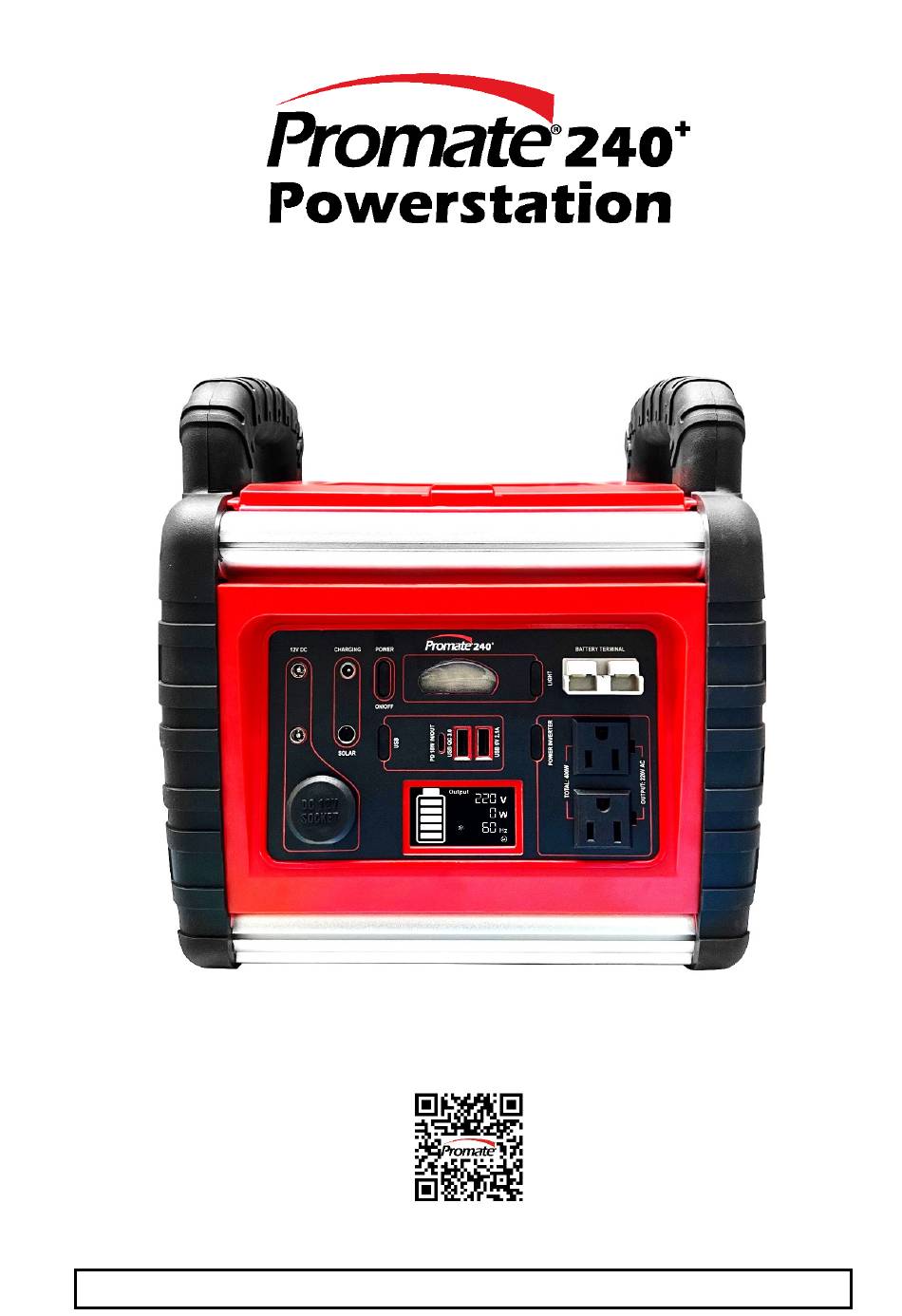

- Page 1 Owner’s Manual Owner’s Manual QR code for linktr.ee/PromatePH DOWNLOAD THIS MANUAL FROM www.promate.com .ph. To ensure proper use, please read this manual and follow its instructions. Save this manual for future use.
- Page 2 INTRODUCTION This Promate240 has been carefully engineered and manufactured to give you dependable operation. Please read this manual thoroughly before operating your new Promate240 . Familiarize yourself with its features and optimize the performance that will bring you continued enjoyment for many years. TABLE OF CONTENTS Important Safety Instructions…………………………………………………………….
- Page 3 6. DO NOT use a charger with damaged cord or cigarette lighter connector - replace it immediately. 7. A service or repair technician authorized by Promate should be consulted before disassembling the Powerstation or its charger. A fire or electric shock could occur from improper handling.
- Page 4 16. Battery Jump-start Precautions Warning – Follow these steps when jumpstarting a vehicle. A spark near battery may cause a battery explosion to reduce risk of a spark near battery or injury, follow precautions below. Always connect the external connection cable clamps to the car battery terminals prior connecting to the Powerstation.
- Page 5 II. SPECIFICATIONS GENERAL SPECIFICATIONS: Dimension(cm): 27.3 x 26 x 29.8 Gross Weight: 12 kgs Output: 12V DC Socket (max. 11 Amp) 12V DC Jack x 2 (total max. 1 Amp) 5V 2.1A USB Port x 3 (Low voltage shut down 10V ± 0.3V) QC 3 A USB Port x 1 (Low voltage shut down 10V ±...
- Page 6 9. Type C Port IN / OUT 10. Power ON / OFF Switch 11. USB Power ON / OFF Switch 12. LED Work Light ON / OFF Switch 13. External Battery / Jumpstarting Connection 14. Power Inverter ON / OFF Switch 15.
- Page 7 b. Connect the Car Charger to the AC/DC Charging Port. c. Connect the Type C DC charger to the Type C Port. d. Connect the Solar Panel to the Solar Port. While the product is charging, the battery level display will flash. The unit is fully charged when the battery level reaches 100% and remains steady without fluctuating.
- Page 8 1. Keep the AC and DC/USB power switches in OFF position while charging. 2. Quick press on the Power On/Off Switch to activate the battery display. 3. Only use Promate Solar panel with a maximum output of 100W. 4. Plug the solar panel in the solar port.
- Page 9 In the event that the battery needs replacement in the future, the unit will need to be opened up; this service should only be performed by a Promate Service technician. Replacement batteries may be purchased from an electrical supply store. Old batteries should be disposed of properly and safely.
- Page 10 This formula yields a close approximation of the starting load of your appliances. Most often the start-up load of the appliance or power tool determines whether the inverter has the capability to power it. CAUTION Know the wattage requirement of your appliances. Use only those appliances that do not exceed the capacity of this unit.
- Page 11 Plug the product into the AC outlet and proceed to use according to the directions on the product. The Powerstation will operate most devices rated up to 400 watts. The AC Power supply is equipped with a low battery alarm and an automatic shutdown feature to protect the unit if the battery power drops below the safe recharging level.
- Page 12 1. Connect the USB or Type C cable (included with the accessory) to both the accessory and the USB or Type C port on the portable Powerstation. 2. Short press the USB button to turn OFF the USB output. 12V DC JACK The Powerstation is equipped with 2 x 12V DC jack and can be used to operate 12V DC devices (maximum total 1 Amp).
- Page 13 VI. JUMPSTARTING AN ENGINE 1. Make sure all the switches of are in “OFF” position. The unit must be fully charged to jump-start an engine. Do not attempt to jump-start an engine if the “VDC” reading of the Powerstation is < 12V when you press the display button as this could permanently damage the battery.
- Page 14 BATTERY SAFETY When the External Battery Connection Terminal is connected to the Powerstation, never allow the positive and negative booster clamps to come into contact with each other (or a common piece of metal) at any time. Otherwise, it will short-circuit the battery and it will cause explosion and damage to your car. When jump-starting a vehicle, make sure that the positive and negative clamps are properly connected to the vehicle and battery.
- Page 15 IX. TROUBLE SHOOTING GUIDE AC Power Supply Problems Problem Possible Cause Solution 1. The AC product is consuming 1. Use an AC product with a power more than 400W. rating below 400W. 2. The AC product is rated below 2. Use an AC product with a starting 400W, but a high starting surge surge that does not exceed the The AC unit is not functioning.
- Page 16 Powerstation’s battery is not fully charged Recharge the battery. The engine receiving the The engine condition is poor boost is not starting. The engine start capacity exceeds Contact Promate Service. the booster capability of the Powerstation. Charging Problems Problem Possible Cause Solution...
- Page 17 Company set forth in the owner's manual, or if the To order replacement parts and consumable parts, product is used as rental equipment. please contact Promate Service (details below) and be The Company will not pay for repairs or •...
- Page 18 Powerstation Exploded View Mode: Promate240 DESCRIPTION DESCRIPTION DESCRIPTION Left and right side covers 12VDC Lead Acid Battery 12 AH x 2 Screw PWA3*10 Handle cover AC socket Screw PWA3*25 Front and rear panel bracket Cooling fan Screw PA3.5*15 Rear panel Cigarette lighter cylinder Screw BM3*16 Battery charger socket tablet...
