Quark-elec Manual

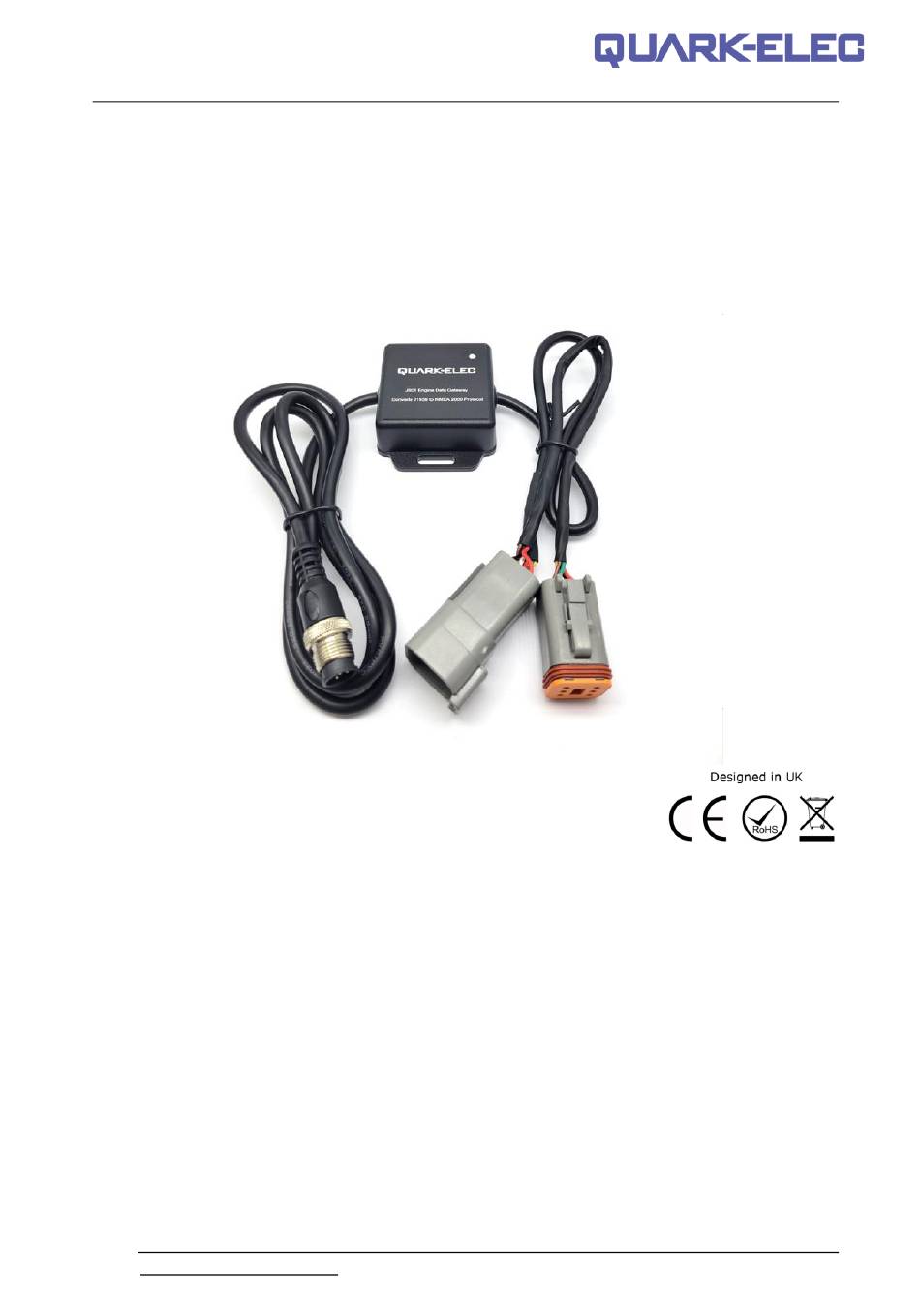

Converts J1939 Engine Data to NMEA 2000 Protocol
Features
 Seamlessly converts essential engine data from J1939 interface to the NMEA 2000 network
 Broad compatibility with most SAE J1939-compliant engine interfaces
 Plug-and-play installation – no complex setup required
 Read-only on J1939 interface, does not affect existing engine control or status systems
 Wireless configuration and live data viewing via dedicated Android app
 Integrated status LED for clear operational feedback
 Galvanic opto-isolation between J1939 and NMEA 2000 networks
 Pre-installed NMEA 2000 drop cable for fast, hassle-free installation
 Adjustable instance number to support multi-engine vessel installations
https://www.quark-elec.com
V1.00
J1939 to NMEA 2000 Gateway
1 of 13
JS01 Manual
2025

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the JS01 and is the answer not in the manual?

Questions and answers

Related Manuals for Quark-Elec JS01

Summary of Contents for Quark-Elec JS01

  • Page 1 Quark-elec Manual JS01 Manual J1939 to NMEA 2000 Gateway Converts J1939 Engine Data to NMEA 2000 Protocol Features  Seamlessly converts essential engine data from J1939 interface to the NMEA 2000 network  Broad compatibility with most SAE J1939-compliant engine interfaces ...

  • Page 2: Table Of Contents

    Figure 1: Example setup 1. Introduction The JS01 is designed for use in marine environments and provides a simple, effective way to integrate SAE J1939-compatible devices into an NMEA 2000® network. It enables the transmission of standard J1939 engine, transmission, and genset data onto the NMEA 2000 network, making critical engine information available throughout the vessel.

  • Page 3: Mounting

    3.1. Connecting to the NMEA 2000 network The JS01 is pre-fitted with a five-core screened cable for the NMEA 2000 connection, fitted with a male micro-fit connector. Simply connect the cable to the NMEA 2000 network backbone or using a T-piece connector.

  • Page 4: Connecting To Engine Network (Sae J1939 Interface)

    J1939 serving as the "language" for communication, while the CAN bus provides the physical connection. Different equipment may use various types of CAN bus connectors. The JS01 uses Deutsch DT04-6P and DT06-6S connectors, which are known for their reliability and are widely used in marine inboard engines.

  • Page 5: Led Indication

    However, if you wish to view engine data or adjust the instance number to support multiple engines, you will need to use the JS01 Config App on an Android tablet or mobile device. The configuration tool also allows you to filter engine error and warning messages transmitted to the NMEA 2000 network.
  • Page 6 Quark-elec Manual Figure 6 App Blocked Disabling auto blocker on your device to allow installation. Figure 7 Disable Auto Blocker After disabling these settings on your device, you will be able to install the app from the downloaded .APK file.
  • Page 7 Quark-elec Manual Figure 8 Installation Blocked https://www.quark-elec.com 7 of 13 2025 V1.00...
  • Page 8 After installation, launch the app. You will be prompted to scan for the JS01 device. Ensure your JS01 is powered by connecting it to an NMEA 2000 backbone. A steady LED light will indicate that the device is powered and operating correctly.
  • Page 9 After making modifications, click ‘Config’ to save the changes. You will need to restart the JS01 for the changes to take effect. The new instance number will be displayed in brackets next to the JS01 device name on this configuration page.
  • Page 10 Quark-elec Manual Figure 14 Configuration Page The Data Display page shows live source data received from the J1939 interface, which is being converted to NMEA 2000 format. This page is useful for debugging purposes and for monitoring engine performance in real time.

  • Page 11: Conversion Lists

    Figure 16 Firmware Update To upgrade the firmware, download the appropriate .bin file for your device and select 'Start Upgrade.' After the update is complete, power cycle the JS01 to ensure it is running the latest firmware. 6. Conversion Lists The following tables list the supported NMEA 2000 PGN’s and related J1939 messages.

  • Page 12: Specification

    Quark-elec warrants this product to be free from defects in materials and manufacture for one year from the date of purchase. Quark-elec will, at its sole discretion, repair or replace any components that fail in normal use. Such repairs or replacement will be made at no charge to the customer for parts and labour.

  • Page 13: Document History

    This product is designed to aid navigation and should be used to augment normal navigational procedures and practices. It is the user’s responsibility to use this product prudently. Neither Quark-elec, nor their distributors or dealers accept responsibility or liability either to the products user or their estate for any accident, loss, injury, or damage whatsoever arising out of the use or of liability to use this product.
