Summary of Contents for Koolance ALR-4600

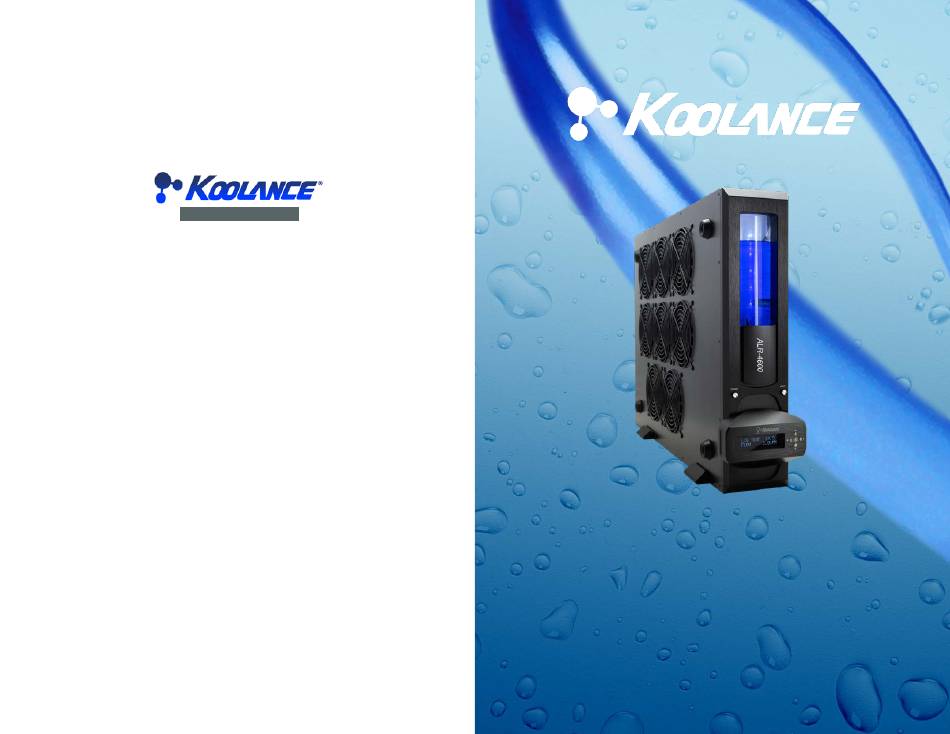

- Page 1 ® Superior Liquid Cooling Systems www.koolance.com ALR-4600 ALR-4600 User’s Manual User’s Manual English v1.0 9001 Printed in Korea...
- Page 2 Koolance Incorporated does not warrant them. TRADEMARKS The Koolance name and logo are trademarks or registered trademarks of Koolance, Inc. Other company and product names used in this publication are for identification purposes only and may be trademarks or registered trademarks of their respective companies.
-
Page 3: Table Of Contents
Product Diagram WARNING: The Koolance liquid coolant contains chemicals which may be harmful or fatal if swallowed. KEEP THIS AND ALL DANGEROUS CHEMICALS OUT OF THE REACH OF CHILDREN. Please refer to Main Secondary the coolant MSDS available on our website: www.koolance.com... -
Page 4: Positioning The System
Positioning the System Tube Fittings This product can operate in one of three orientations, illustrated below. A minimum Tube fittings are purchased separately. airflow clearance of 4 inches (102mm) should be provided on two sides of the unit, though more space may improve performance. When operating horizontally, the The inlet and outlet fitting threads are 3/8-inch unit should be rack mounted for airflow, rather than placed onto a flat surface. -
Page 5: Coolant Filling And Power On
1/2-inch (13mm) from the top of the reservoir. Never completely fill or “top-off” the reservoir. An air gap is needed to accommodate thermal expansion of the liquid. This product supports the Koolance System Monitor (KSM) software application for control and logging over the USB port. It is recommended to use the included USB cable, which is shielded. -
Page 6: Display Panel
CAUTION: To avoid permanent damage to the pump and other cooling system components, do not allow the liquid temperature The Koolance display panel allows monitoring and control of the cooling system’s to exceed 60°C (140°F) by setpoint or other methods. This is the functions. -
Page 7: Pump
PUMP DISPLAY The pump speed can be manually set from 1-10 (lowest to highest). Though not The display settings configure which values you wish to appear on the main screen recommended, it can also be disabled by lowering the value until “OFF” is displayed. display: PUMP DISPLAY... -
Page 8: Troubleshooting
Below is a list of operational issues and their most common solutions. Koolance Incorporated warrants that on the date of original purchase and for a period of one (1) year thereafter, this Product will be free from defects in material or 1.
