Panasonic AG-6841 H Instruction Manual

In] D"(Fd
Duplicator
P
Instruction Guide
Panasonic ivu^
Professional/Industrial video " *

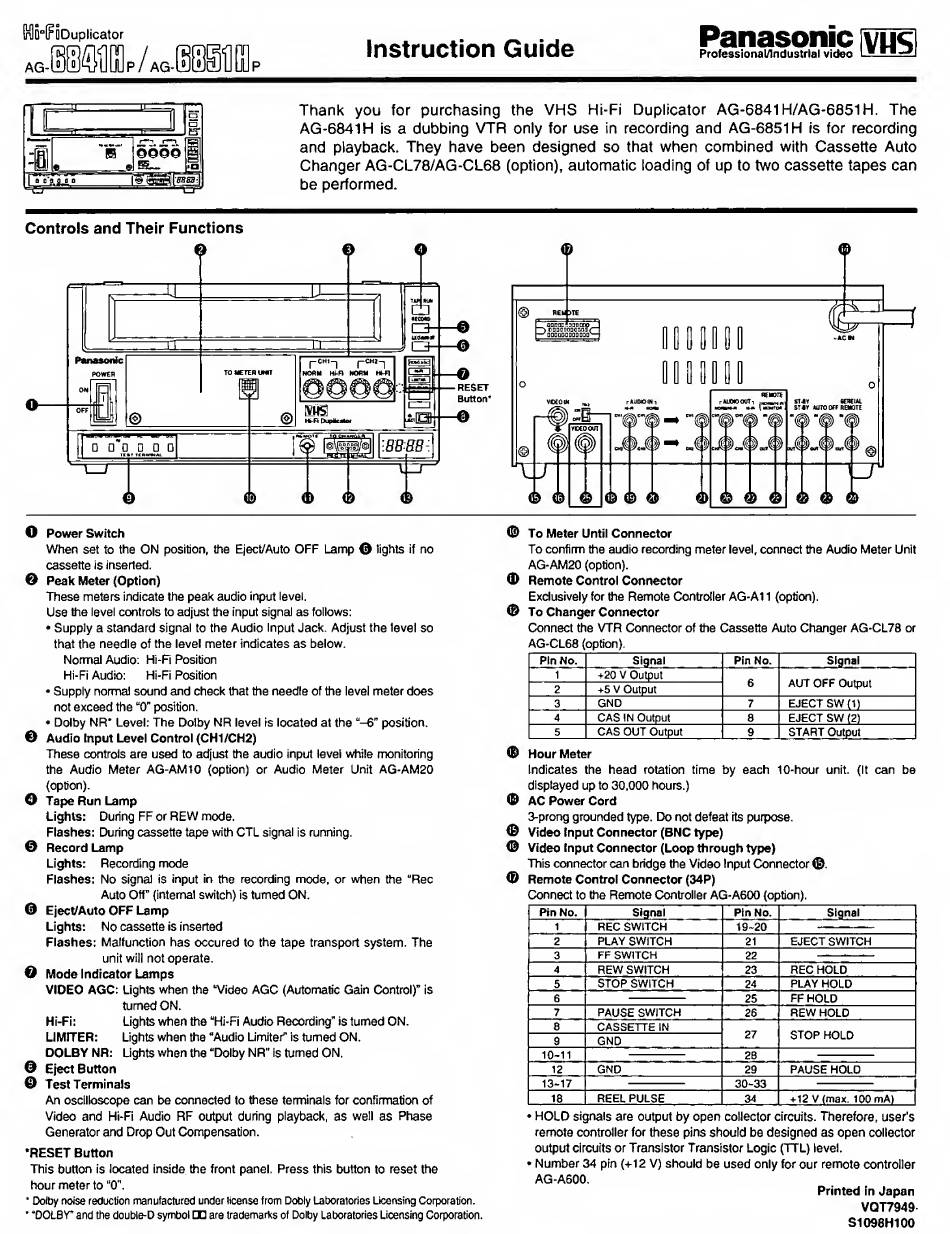

Controls and Their Functions
Thank you for purchasing the VHS Hi-Fi Duplicator AG-6841 H/AG-6851H. The
AG-6841 H is a dubbing VTR only for use in recording and AG-6851 H Is for recording
and playback. They have been designed so that when combined with Cassette Auto
Changer AG-CL78/AG-CL68 (option), automatic loading of up to two cassette tapes can
be performed.
O Power Switch
When set to the ON position, the Eject/Auto OFF Lamp © lights if no
cassette is inserted.
© Peak Meter (Option)
These meters indicate the peak audio input level.
Use the level controls to adjust the input signal as follows:
• Supply a standard signal to the Audio Input Jack. Adjust the level so
that the needle of the level meter indicates as below.
Normal Audio: Hi-Fi Position
Hi-Fi Audio: Hi-Fi Position
• Supply normal sound and check that the needle of the level meter does
not exceed the "0" position.
• Dolby NR* Level: The Dolby NR level is located at the "-6" position.
© Audio Input Level Control (CH1/CH2)
These controls are used to adjust the audio input level while monitoring
the Audio Meter AG-AM10 (option) or Audio Meter Unit AG-AM20
(option).
O Tape Run Lamp
Lights: During FF or REW mode.
Flashes: During cassette tape with CTL signal is running.
© Record Lamp
Lights: Recording mode
Flashes: No signal is input in the recording mode, or when the "Rec
Auto Off" (internal switch) is turned ON.
© Eject/Auto OFF Lamp
Lights: No cassette is inserted
Flashes: Malfunction has occured to the tape transport system. The
unit will not operate.
© Mode Indicator Lamps
VIDEO AGC: Lights when the "Video AGO (Automatic Gain Control)" is
turned ON.
Hi-Fi: Lights when the "Hi-Fi Audio Recording" is turned ON.
LIMITER: Lights when the "Audio Limiter" is turned ON.
DOLBY NR; Lights when the "Dolby NR" is turned ON.
© Eject Button
© Test Terminals
An oscilloscope can be connected to these terminals for confirmation of
Video and Hi-Fi Audio RF output during playback, as well as Phase
Generator and Drop Out Compensation.
"RESET Button
This button is located inside the front panel. Press this button to reset the
hour meter to "0".
* Dolby noise reduction manufactured under license from Dobly Laboratories Licensing Corporation.
• "DOLBY" and the double-D symbol DD are trademarks of Dolby Laboratories Licensing Corporation.
© To Meter Until Connector
To confirm the audio recording meter level, connect the Audio Meter Unit
AG-AM20 (option).
© Remote Control Connector
Exclusively for the Remote Controller AG-A11 (option).
© To Changer Connector
Connect the VTR Connector of the Cassette Auto Changer AG-CL78 or
AG-CL68 (option).
Pin No. Signal Pin No. Signal
1
+20 V Output
2 +5 V Output
6 AUT Urr
Output
3
GND
7
EJECT SW{1)
4
CAS IN Output
8
EJECT SW f2)
5
CAS OUT Output 9
START Output
© Hour Meter
Indicates the head rotation time by each 10-hour unit. (It can be
displayed up to 30,000 hours.)
© AC Power Cord
3-prong grounded type. Do not defeat its purpose.
© Video Input Connector (BNC type)
© Video Input Connector (Loop through type)
This connector can bridge the Video Input Connector ®.
© Remote Control Connector (34P)
Connect to the Remote Controller AG-A600 (option).
Pin No. Signal Pin No.
Signal
1
REC SWITCH
19-20
—
2 PLAY SWITCH 21 EJECT SWITCH
3
FF SWITCH
22
A
REW SWITCH 23 REC HOLD
5
STOP SWITCH 1 24 PLAY HOLD
6 25 FF HOLD
7 PAUSE SWITCH
26
REW HOLD
8
CASSETTE IN
9 GND
27
STOP HOLD
10-11 28
12 GND 29
^ PAUSE HOLD
13-17
30-33
18 REEL PULSE 34 +12 V (max. 100 mAI
HOLD signals are output by open collector circuits. Therefore, user's
remote controller for these pins should be designed as open collector
output circuits or Transistor Transistor Logic (TTL) level.
Number 34 pin (+12 V) should be used only for our remote controller
AG-A600.
Printed in Japan
VQT7949
S1098H100
