Summary of Contents for DENSITY Basic

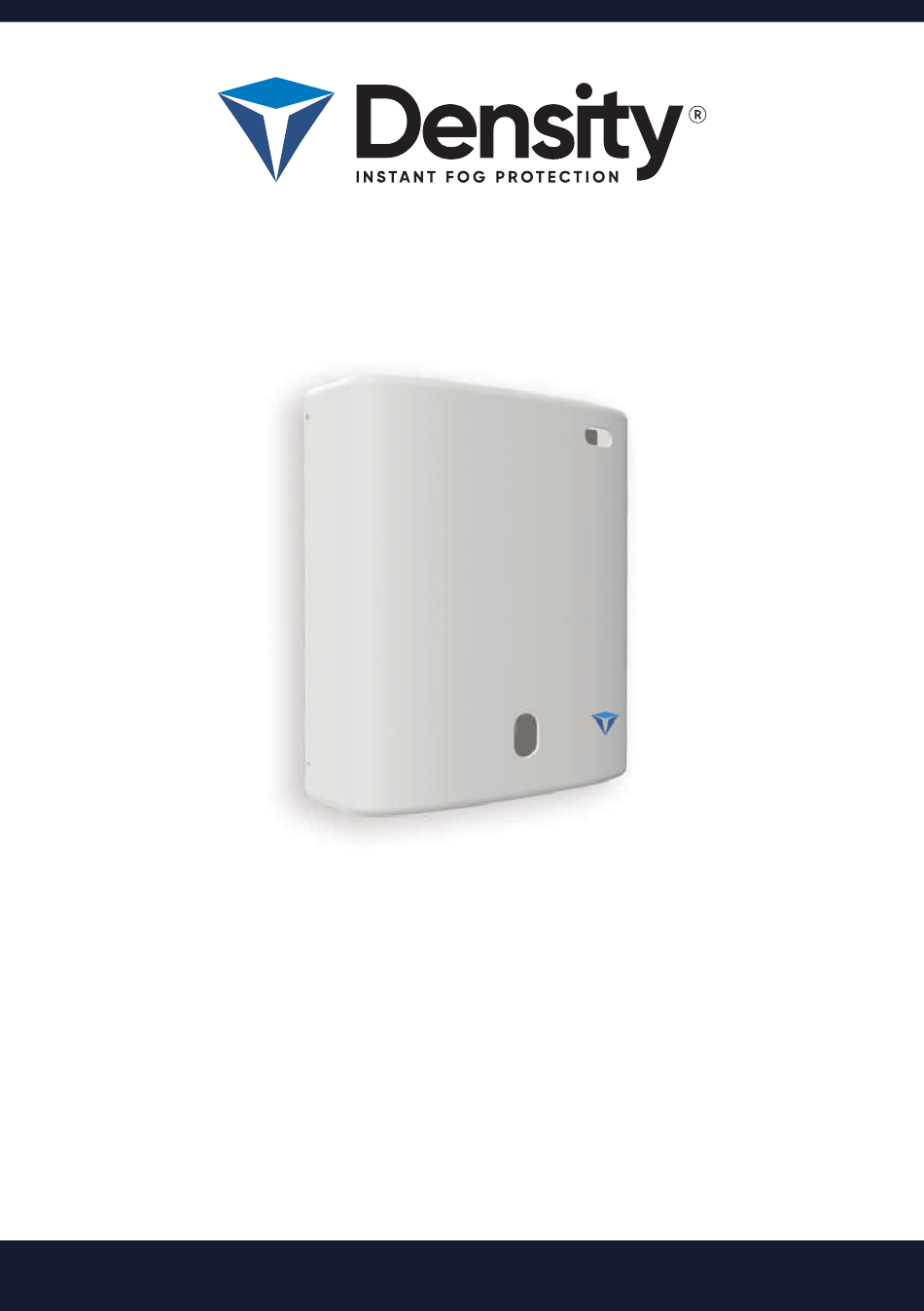

- Page 1 Installation and user manual DENSITY Basic Version 1.2 - October 2024 www.densityglobal.eu | support@densityglobal.eu www.densityglobal.eu | support@densityglobal.eu...
-
Page 2: Table Of Contents
WARNING! All DENSITY fogging systems should only be used with DENSITY-branded fluids. It is strictly forbidden to use any fluid not previously authorized in writing by DENSITY. Summary Package contents page 1 Product presentation page 2 Conditions of use and warnings... -
Page 3: Product Presentation
3. Conditions of use and warnings The fog generated by DENSITY Basic does not create problems or injuries to people during a short stay in a room filled with fog, if the system is used according to the manufacturer’s recommendations. -
Page 4: Installation Tips
7. The nozzle may reach high temperatures, touching it may cause burns. 8. When DENSITY produces fog avoid staying closer than 1 meter from the unit. 9. Before testing DENSITY, remember to report it in advance to the firefighters in your area to avoid false alarms. -
Page 5: Technical Specifications
It is always recommended to secure the fog generator to a wall even when it is placed on a flat surface. The optional mounting kit for Density Basic, mainly recommended for ceiling installation, include both battery and ® fluid bag holders. An optional orientable 15° (pan & tilt) VESA module is available for wall mounting, it can also simplify standard installation by allowing to use back holes for the routing of cables. -
Page 6: Electrical Power Supply
7. Electrical power supply The 230V input provides primary power to the heat exchanger and, by the use of a switching power supply, to the electronic board and the fluid pump. The heat exchanger’s working time without mains power ensures proper functioning for a certain period of time, usually around one hour, even in complete absence of mains power. -
Page 7: Power Supply Connection
8. Power supply connection 12V Power supply connection As for the fluid bag (500ml) in Density Basic model backup battery is NOT included and should be provided by the installer. Reference model: FIAMM FG 20121 A 230V Power supply connection... - Page 8 OUTPUT Power DC12 V 1-2 Output DC12v (max 200mA) for electrical connection of local devices connected to the board. It can be used to power a local PIR or a remote receiver. It is recommended not to overload the output. OUTPUTS 3 ARD/SHP - Reports the ARMING status (W2 open), or is active when TRIG is in progress (W2 close).
-
Page 9: Connection Examples
Density Basic inputs connected to standard alarm panel outputs ® Density Basic inputs connected with a clean contact (relays) alarm panel outputs ® Wiring example of Density Basic outputs to drive leds and/or relays ® Note: in the following examples the output signal ARD/SHP has the following meaning... - Page 10 The ON/OFF output of this alarm panel is an open relay when panel is OFF that continuosly keep close for all the time the alarm panel is monitoring. The alarm output of the panell is an open relay that close when alarm condition is detected. C - Wiring example of Density® Basic outputs to drive leds and/or relays...
-
Page 11: Shooting Time Setting And Fog Flow Orientation
11. Shooting time setting and fog flow orientation RESET SET TIME To set the shooting time, after opening the front panel, you must CLOSE the jumper W1 in SET position then, holding down the button S1, the 3 leds on the front will flash and each flash is equivalent to one second fog emission. If you press the button again, the shooting time is not added to the one previously set, but will restart from zero. - Page 12 There might be cases in which, due to specific characteristic of the location, nozzle type, levels of temperature and air pressure, degree of the fog density and light in the target area, the shooting time can be increased or decreased.
-
Page 13: Installation, Exchange And Bag Reset
12. Installation, exchange and bag reset Insert the bag in place as show in picture. Insert a new bag and push metal connector till a “click” is heard. -
Page 14: Front Leds Meaning
ON: Unit has reached the correct temperature. HEATING Blinking: Unit is warming, no shot possible. OFF: Device fault. The EMPTY signal also means that fluid is going LOW. It means that the unit has shot at least 240 seconds since last reset (Density Basic). ®... -
Page 15: Reset From Fault Condition
Note: The RED led (LED DL1, middle of the board), means that unit is ON. It is NOT a fault condition. 15. Maintenance possible solutions Density fogging systems don’t need special maintance, nevertheless is suggested a periodical check to the following ®... - Page 16 ACTION/SIGNAL FOUND POSSIBLE CAUSE POSSIBLE SOLUTION This condition is normal and can happen on All units are 100% tested Small fog flow coming out so a small ammount first installation, it will completely disappear from nozzle of fluid could be still in in a while when the unit will become completely hot.
- Page 17 ACTION/SIGNAL FOUND POSSIBLE CAUSE POSSIBLE SOLUTION Bag changed, reset needed Follow instructions Paragraph 13 Red front led BLINKING Empty bag - replace it following instructions on Paragraph 13 Unit still warming, wait max 20 min. with the unit Green front led is BLINKING connected to the mains power Verify on J10 that when alarm is ON there is a Wires error...
-
Page 18: Warranty
16. Warranty The warranty of DENSITY is two years and is handled directly from the dealer or authorized installer, so please contact your supplier to take advantage of warranty with the copy of the purchase document that contains the serial number of the unit. -
Page 19: Maintenance Form
17. Maintenance form DATE BATTERY EXCHANGE BAG EXCHANGE SIGNATURE It is mandatory to fill out this table in accordance with the security rules... - Page 20 Version 1.2 - October 2024 www.densityglobal.eu | support@densityglobal.eu www.densityglobal.eu | support@densityglobal.eu...
