LANSDOWN 600 UNDERSLUNG UNITS
INSTALLATION & AFTERCARE INSTRUCTIONS
Before installation
For wall hanging units: WARNING in order to prevent falling down this product must be used with the wall attachment device
provided.
It is recommended that the units secured to a suitably reinforced wall to ensure stability. This can be done through the back rail
(Fixings not included).
Joining Units
Two units can be joined together using fixing bolts or screws (not provided) to make a 1200 double unit. It is recommended that
units are joined before they are fixed to the wall.
Clamp the units together using suitable clamps, ensuring they are flush and level with each other. Drill holes through the side of the
unit and using the bolts, join units together.
Fixing Handles
• A pilot hole located at the back of the door can be drilled if using a single screw
knob
• If you have chosen a pull handle with 2 screws then please pilot and then drill
through the door with the handles in the desired location.
• Carefully drill any holes using a clamped block of wood to protect the front of
door - See figure 1.
• The handles can simply be screwed into place using the screws supplied.
• If you choose third party handles please measure carefully before drilling.
Fitting Worktop with Underslung Basin
• Follow supplementary instructions supplied with worktop and basin for
fitting basin to worktop.
• Apply a layer of silicone sealant to the worktop on all 4 sides to be fixed to
the panels, back rail and front section. See Figure 2.
• Connect plumbing services as necessary.
t. 01225 787 870 e. info@tavistock-bathrooms.co.uk w: www.tavistock-bathrooms.co.uk
block of wood
Tavistock, Brassmill Lane Trading Estate, Bath, BA1 3JF

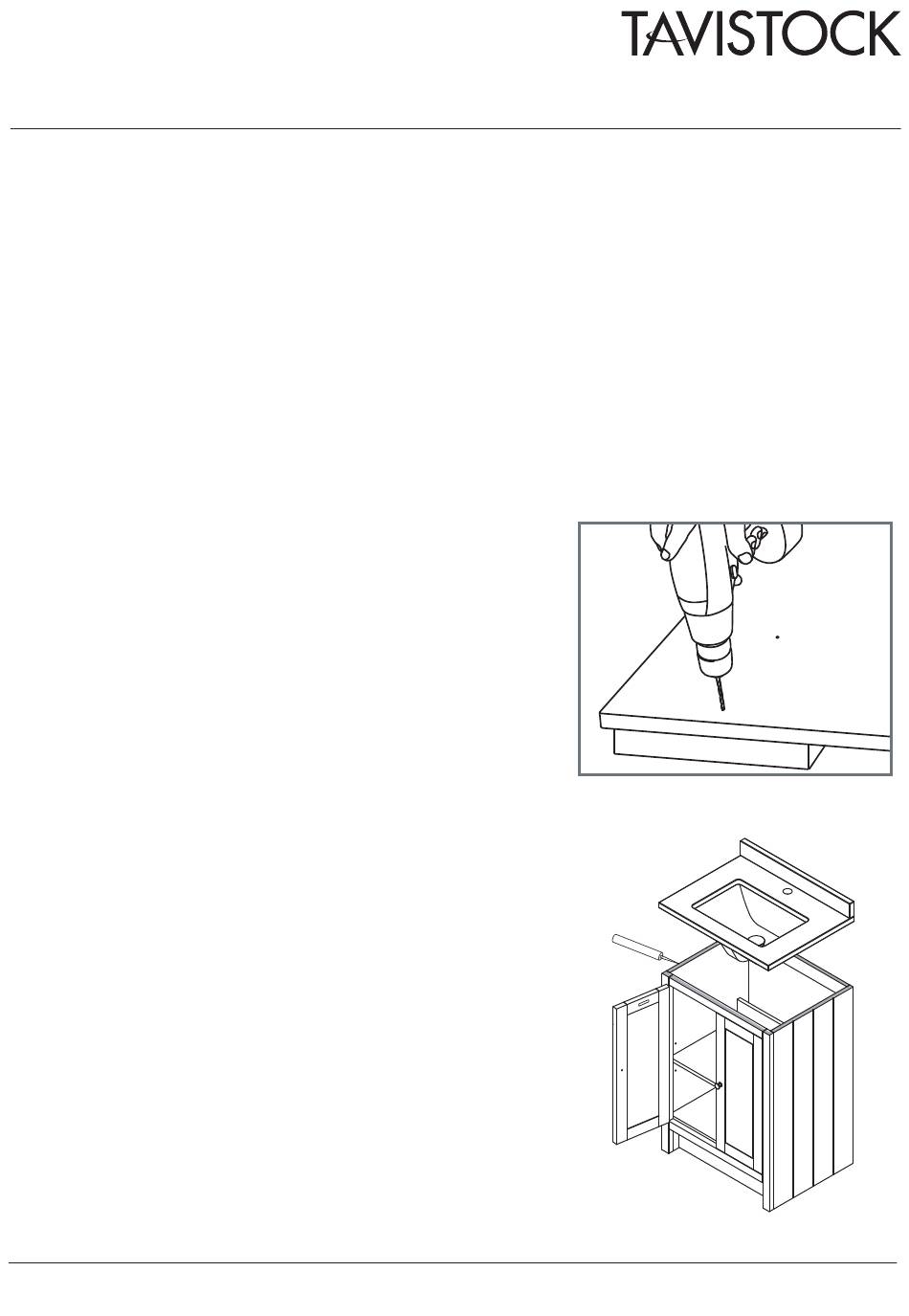

Figure 1
