Purpose
This document outlines the process of replacing the Automated Boat Shade Canvas.
Safety
The "CAUTION" symbol above is a sign that a safety risk is involved and may cause personal injury
and/or product or property damage if not safely adhered to and within the parameters set forth
Moving parts can pinch, crush, or cut. Keep body parts clear at all times.
Resources Required
• Wand (provided with shade)
1/4
•
" spacer
3/16
•
" hex wrench
• Phillips screwdriver
Procedure
1.
Press the extend button until the shade extends to its full length.
NOTE: It takes approximately six rotations to release the tension from the canvas.
2.
Insert the wand (Fig.1A) into the manual override slot and press the extend button again, while
rotating the wand toward the positive (+) sign until the canvas is fully extended.
Do NOT try to remove the canvas until all tension is released from the Automated Shade Arm.
Rev: 12.13.2024
AMS AUTOMATED BOAT SHADE CANVAS
REPLACEMENT INSTRUCTIONS
MARINE
in this manual.

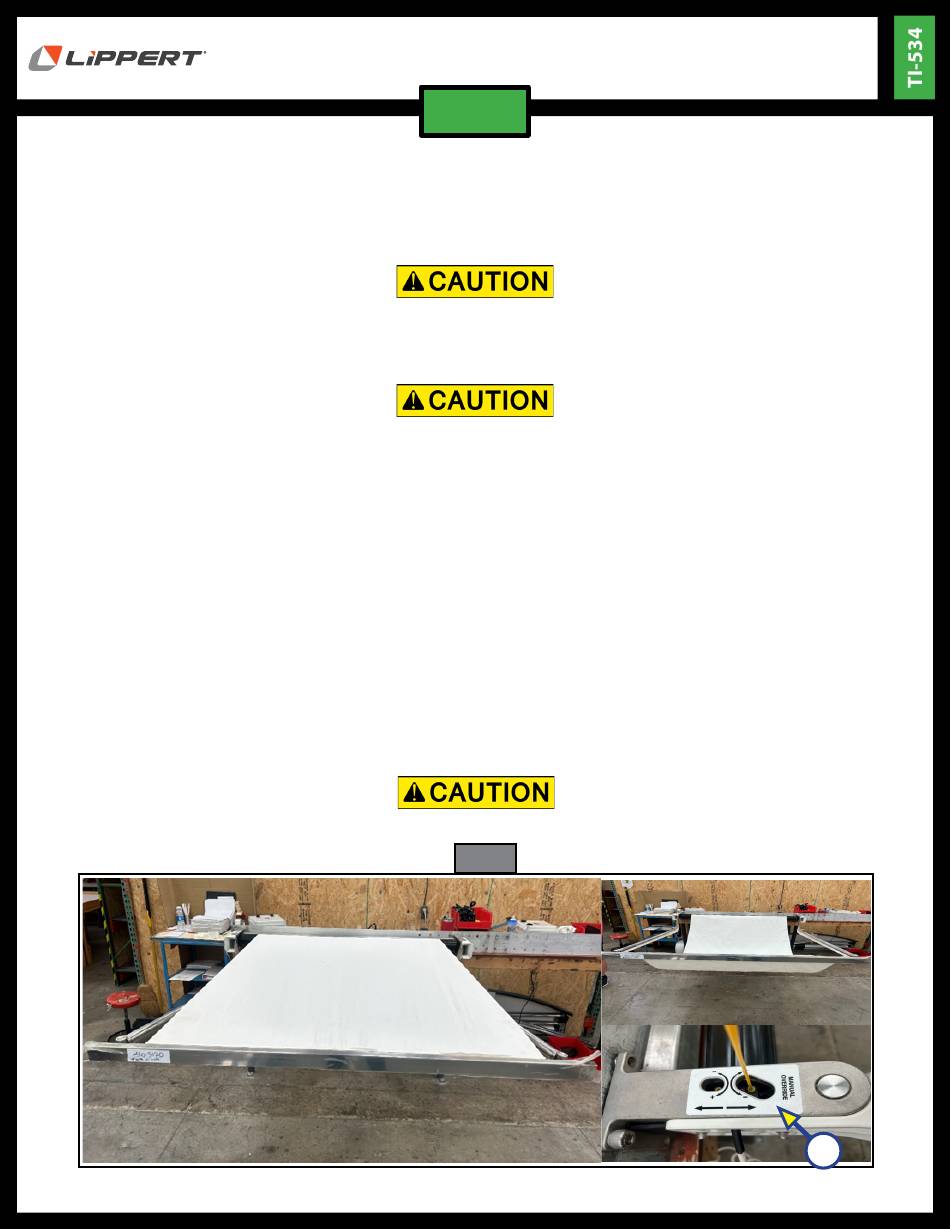

Fig. 1
Page 1
A
CCD-0008988
Advertisement
Summary of Contents for Lippert TI-534
- Page 1 AMS AUTOMATED BOAT SHADE CANVAS REPLACEMENT INSTRUCTIONS MARINE Purpose This document outlines the process of replacing the Automated Boat Shade Canvas. Safety The “CAUTION” symbol above is a sign that a safety risk is involved and may cause personal injury and/or product or property damage if not safely adhered to and within the parameters set forth in this manual.
- Page 2 AMS AUTOMATED BOAT SHADE CANVAS REPLACEMENT INSTRUCTIONS MARINE NOTE: The keder welt track position will vary, depending on how the canvas is removed. Prepare to remove the canvas (Fig.2): A. Remove the track stop for the stainless steel fascia located on the starboard side using a 1/8" hex wrench (Fig.
- Page 3 AMS AUTOMATED BOAT SHADE CANVAS REPLACEMENT INSTRUCTIONS MARINE Insert the pull pin and rest on the bracket (Fig. 5) Slide canvas out of the keder welt track and the fascia track. Slide the new canvas into the roller with the tag ALWAYS down. 10.
- Page 4 AMS AUTOMATED BOAT SHADE CANVAS REPLACEMENT INSTRUCTIONS MARINE 13. Ensure both sides of the canvas on the roller tube are centered (Fig. 6) Fig. 6 14. Measurements on both sides to ensure that the canvas is of equal lengths on both sides of the roller arm (Fig.
- Page 5 AMS AUTOMATED BOAT SHADE CANVAS REPLACEMENT INSTRUCTIONS MARINE 15. Add an equal amount of weight to the canvas for tension (Fig. 8). 16. Retract canvas until the bar touches the AMS arms (Fig. 9). 17. Remove weight from canvas. Fig. 8 4 lbs of weight Fig.
- Page 6 AMS AUTOMATED BOAT SHADE CANVAS REPLACEMENT INSTRUCTIONS MARINE 18. Lift canvas over both knuckles (Fig. 10) 19. Fully retract canvas (Fig. 11). Fig. 10 Knuckles Fig. 11 Page 6 Rev: 12.13.2024 CCD-0008988...
- Page 7 AMS AUTOMATED BOAT SHADE CANVAS REPLACEMENT INSTRUCTIONS MARINE 20. While holding the extend switch, spin the wand to the (-) negative sign rapidly (Fig. 12) 21. Ensure the shade stops before full extension (Fig 13). NOTE: If the shade fully extends, retract the shade and repeat step 19. Fig.
- Page 8 As a supplier of a broad array of highly-engineered components in the recreation and transportation product markets, safety, education and customer satisfaction are our primary concerns. Should you have any questions, please do not hesitate to contact us at 432-LIPPERT (432-547-7378) or by email at customerservice@lci1.com.
