Summary of Contents for Extralink ESP-500LITE

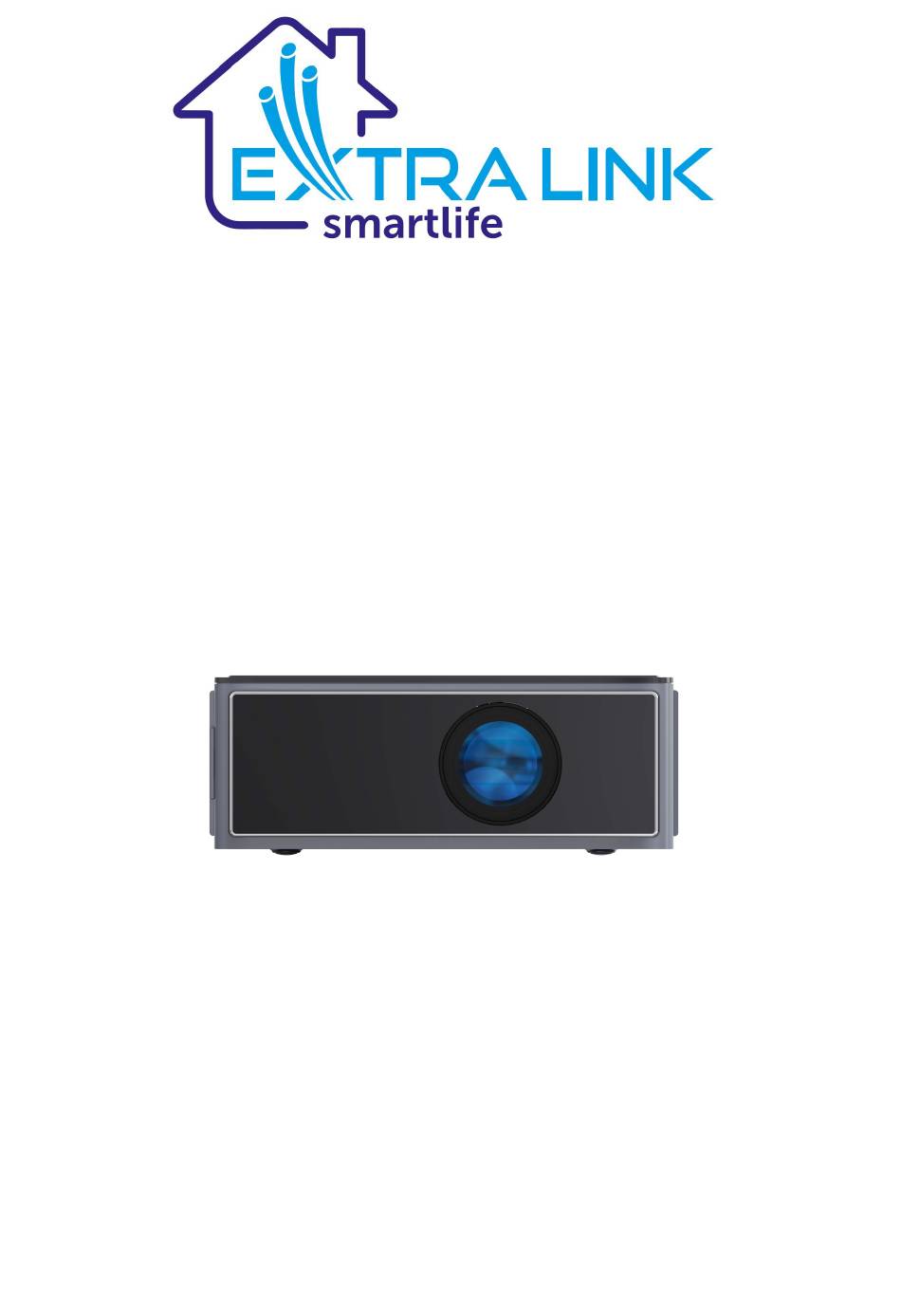

- Page 1 Smart LED Projector Model:ESP-500LITE USER MANUAL...
-
Page 2: Safety Cautions
Safety Cautions Thanks for your purchasing of our projectors. Please read through this user manual and keep it properly after reading for future reference. 1. Do not put the projector in the place where the warm air flows from the air conditions directly. - Page 3 Safety Cautions Don’t pile objects around projector Don’t locate projector in hot or heavy moist Don’t block the air vents (in & out) Don’t put it in dusty or smoky environment...
- Page 4 Parts and Panel Instruction Focus Camera Lens IR Receiver 3.5mm Jack HDMI SPDIF/OPTICAL Speaker AC Socket Air Vent Air Vent Air Vent Foot Pad e-Actuator Power/Focus Button...
-
Page 5: Device Connectivity
Device Connectivity DVD/VCD Player Laptop/PC (with HDMI port) LAN Port Blu-ray players and other HD devices AC Socket... - Page 6 Quick Guide 1. Projector Locating Please put the projector on a top flat surface horizontally. Press power button to turn on the projector. 2. Turn ON/OFF Turn ON Touch button on the top of projector or press button on the remote control to turn on the projector.
- Page 7 Remote Control Pairing Press button of the remote control or enter into setting and select Remote & Accessories to go to pairing interface, Press and hold the Bluetooth remote control for more than one second, the indicator light flashes quickly, send pairing or clear pairing voice, after successful pairing, the remote control indicator light changes from fast flashing to slow flashing for 2 seconds and then goes out.
- Page 8 5. Home Interface Instruction WiFi Bluetooth Weather Status Date & Time Status Status Recently Recommended Apps Recently-viewed Apps 6. Wi-Fi Connection Go to Setting interface to select details of Wi-Fi connections setting area. Or go to setting menu by pressing setting button on remote control, select network & internet to choose the Wi-Fi and connect it as you want.
- Page 9 8. Bluetooth Connection Go to Remote & Accessories in the setting, select Add accessory to search for Bluetooth devices and then choose right one for connection. 9. File Browser Go to MediaPlayer to select all kinds of files in internal or external USB memory devices to open and show on the screen such as audio, video or picture files.
-
Page 10: Quick Settings
10. Screen Mirroring Open EshareSever in APPS, then follow the instructions show on the screen to realize screen mirroring. (This feature is available for Windows, IOS and Android devices) Quick Settings Auto Focus Go to Quick Settings in the setting, select Auto Focus to enable auto focus feature to free your hands for imperceptible focus adjustment. - Page 11 Auto Keystone (Horizontal & Vertical) Go to Quick Settings in the setting, select Auto Focus to enable horizontal and vertical auto keystone feature to keep screen normal shape and at the best view angle for the audience. Auto Obstacle Avoidance Go to Quick Settings in the setting, select Auto Obstacle Avoidance to enable auto obstacle avoidance feature to avoid obstacles located in projection area automatically in order to keep the audience can always watch complete images.
-
Page 12: General Settings
Silent Mode Go to Quick Settings in the setting, select Silent Mode to enable silent mode for more quiet system running while watching at night. Virtual Mouse Go to Quick Settings in the setting, select Virtual Mouse to enable the remote control as a mouse in order to reach some point of some apps for full operation. - Page 13 Sound Setting Go to Projector Setting in the setting, select Sound to adjust audio balance, bass, treble, equalizer and enable or disable surround sound effect. Source Input Select Inputs in the setting or press button on the remote, then select HDMI as a signal source mode, press OK button on the remote control to switch input source from HDMI.
- Page 14 Keystone Setting Go to General Setting in the setting, choose Projector Setting, turn off auto focus, then you can see Vertical Correction and Horizontal Correction for you to adjust keystone on vertical or horizontal direction. Rotate Correction Go to General Setting in the setting, choose Projector Setting, turn off auto focus, then you can see Rotate Correction for you to adjust image angle to keep balance.
- Page 15 Four Point Keystone Go to General Setting in the setting, choose Projector Setting, turn off auto focus, then you can see Four Point Keystone to adjust keystone manually. Custom Calibration Go to General Setting in the setting, choose Projector Setting, turn off auto focus, then you can find Custom Calibration to calibrate the image properly if image sharpness or shape abnormity happens.
- Page 16 Factory Restore Go to System Preferences in the setting, select Reset by pressing OK buttons to start factory restore. This operation will erase all data from the device’s internal storage like google account, system and app data, settings and downloaded apps. Basic Specifications/Parts Projection Distance Projection distance...
-
Page 17: Cleaning Method
EU Declaration of Conformity Hereby, company Batna sp. z o.o. declares that the equipment type ESP-500LITE is in compliance with Directive 2014/53/EU. Importer/responsible entity: Extralink24, 1 Maja 23, 42-202 Częstochowa... -
Page 18: Warranty Card
WARRANTY CARD Please fill the requested information for official service and warranty. Customer Name: Product Model: Series Number: Address: Date of Purchase: Dealer Name: Phone No.: Failure Description: ※This warranty is void if the failure of the product and accessories or any part, sealant or component thereof is due to (i) misuse, (ii) tampering, (iii) negligence, (iv) misapplication, (v) abuse, (vi) accident, and/or, (vii) a failure to properly (a) maintain, (b) clean, (c) reassemble, (d) submerge.
