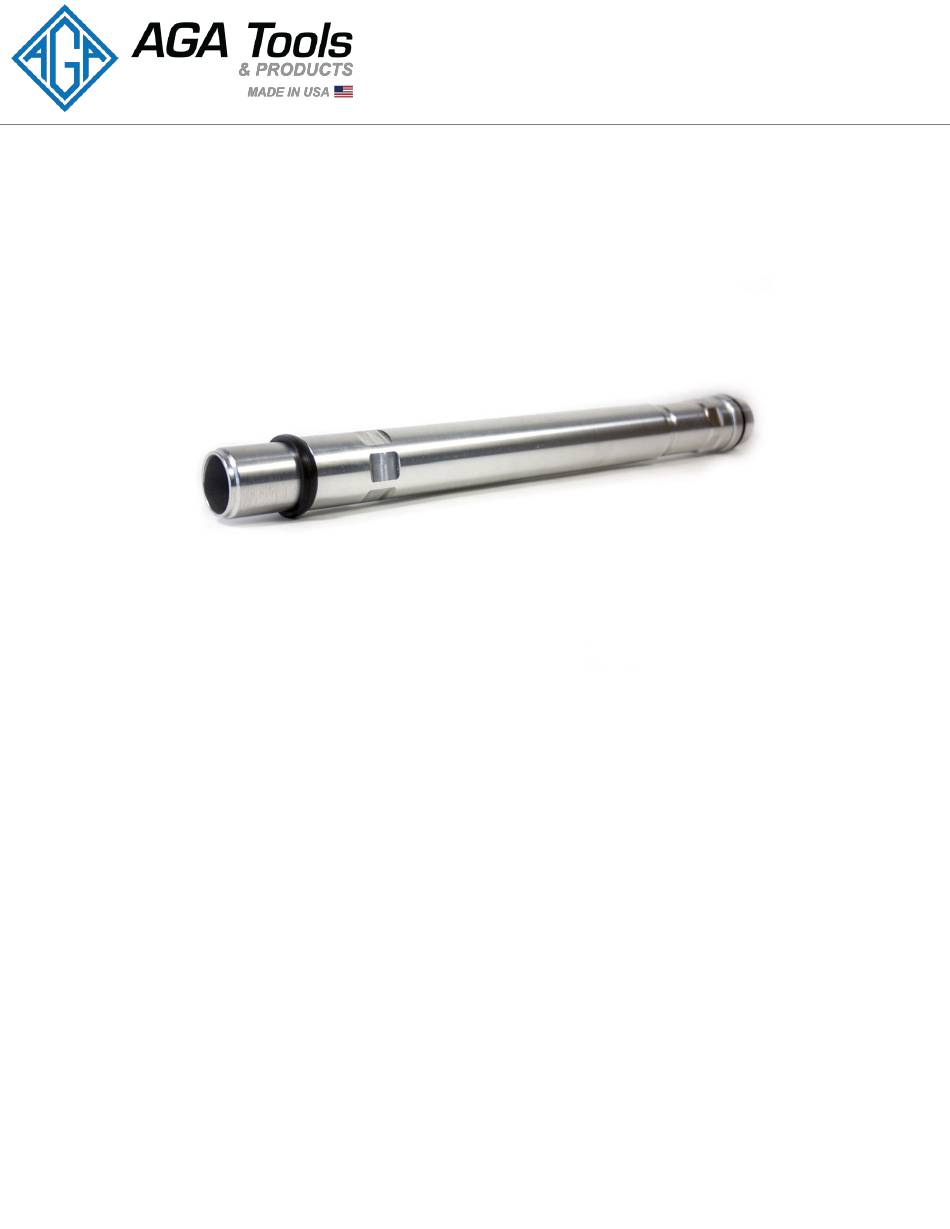

N62 & N62-TU Coolant Pipe
Part #: AGA-N62-6061
Problem:
Rubber seal on aluminum cooling tube has failed. Coolant is leaking into back area of engine
timing cover and out of hole.
Solution:
Install an AGA collapsible cooling tube. We have designed a tube and seals that can be installed in
under 10 hours.
Advertisement
Summary of Contents for AGA N62
- Page 1 Rubber seal on aluminum cooling tube has failed. Coolant is leaking into back area of engine timing cover and out of hole. Solution: Install an AGA collapsible cooling tube. We have designed a tube and seals that can be installed in under 10 hours.
- Page 2 Parts Included: N62 & N62-TU Coolant Pipe Grease Applicator Bag of Grease Wire Brush Additional Parts Needed to Complete the Repair N62: 11-53-1-710-048 Eng. Block Rear O-ring 11-51-7-507-717 Heat Pipe / WP O-ring 11-51-7-508-535 Water Pump Gasket 11-51-1-439-976 Pipe Pump/ Valley Pan...
- Page 3 Directions: Before starting this repair we highly recommend you watch the video on AGA’s YouTube channel or website. Instructions: These instructions are for experienced technicians only. Only an experienced technician should attempt this job. 1. Remove: Intake cam adjuster units, left and right ...
- Page 4 4. Pull tube out with lever bar. 5. Remove old seal w/pick tool. Seal groove must be completely clean, use a small wire brush to remove ALL debris from old seal, inspect with mirror. 6. Remove rear o-ring in back of engine block.
- Page 5 7. Install engine block front seal. Flat end of the seal should be facing towards the front of the car when installed in engine block. Apply white grease (supplied in the kit) to new seal; fold seal and insert into hole (see drawing on the left for directions).
