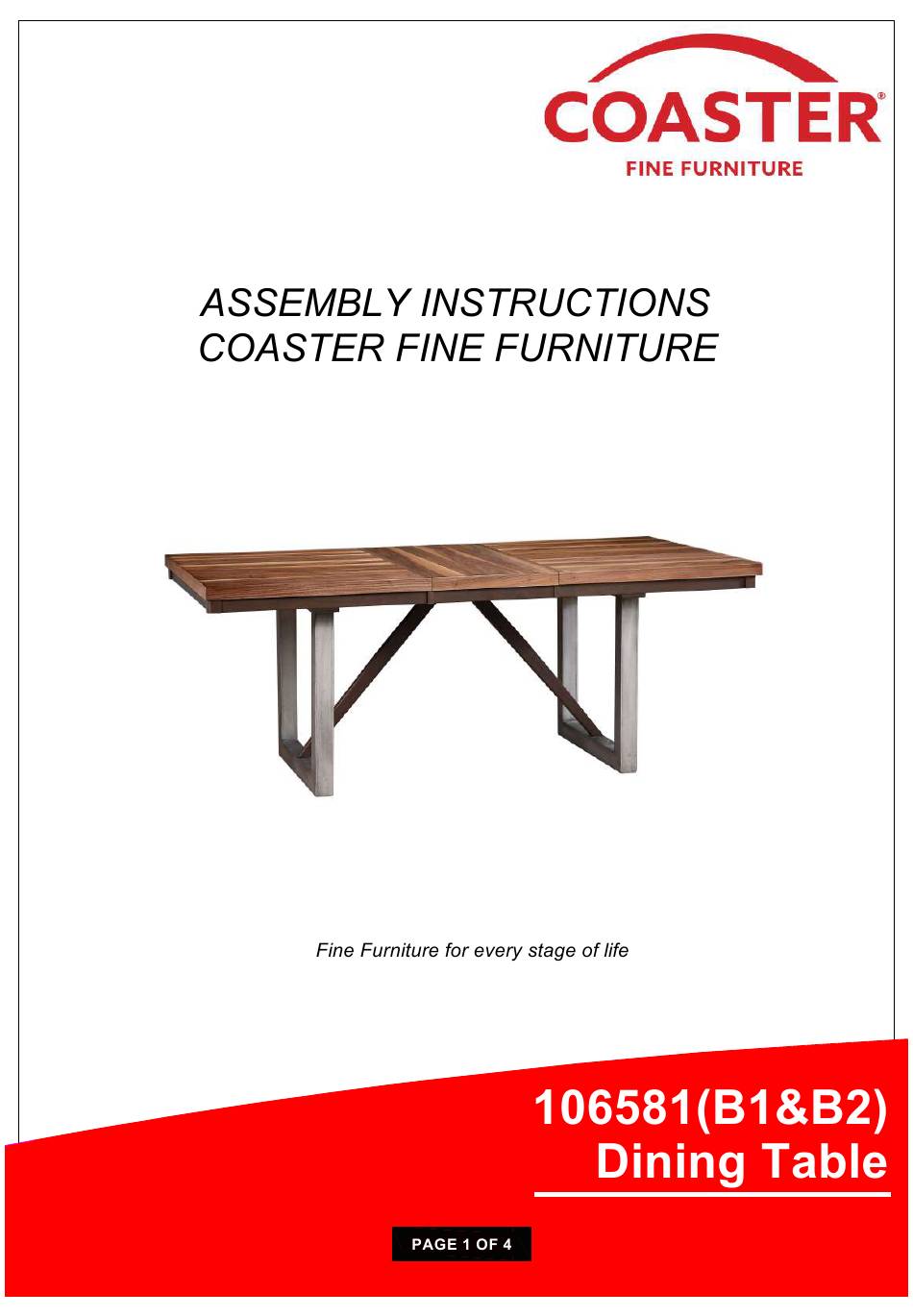

- Page 1 REVISION 0: 02/10/2015 REVISION 1: 10/16/2017 REVISION 2: 07/22/2019 COASTERFURNITURE.COM REVISION 3: 05/21/2020...
- Page 2 STRETCHER 2PCS B2 (BOX 2) LEG FRAME 2PCS HARDWARE IDENTIFICATION Z-B1 (BOX 1) - HARDWARE PACK IS LOCATED IN 106581 (B1) SHORT BOLT WITH WASHER 8PCS (M6 x 40mm - BLK) LONG BOLT WITH WASHER 2PCS (M6 x 60mm - BLK)
- Page 3 : 106581(B1&B2) ITEM ASSEMBLY INSTRUCTIONS STEP 1 Protective surface STEP 2 PAGE 3 OF 4 COASTERFURNITURE.COM...
- Page 4 : 106581(B1&B2) ITEM ASSEMBLY INSTRUCTIONS STEP 3 LEAF 180° TURN COUNTER-CLOCKWISE TO UNLOCK STEP 4 COMPLETE 180° TURN CLOCKWISE TO LOCK COASTERFURNITURE.COM PAGE 4 OF 4...
- Page 5 : 106581(B1&B2) ITEM 77.25" 17.75" 29.75" 29.75" 30.00" 21.75" 26.50" 42.50" 27.00" 47.75" Note : Dimension tolerance ±5% COASTERFURNITURE.COM...
