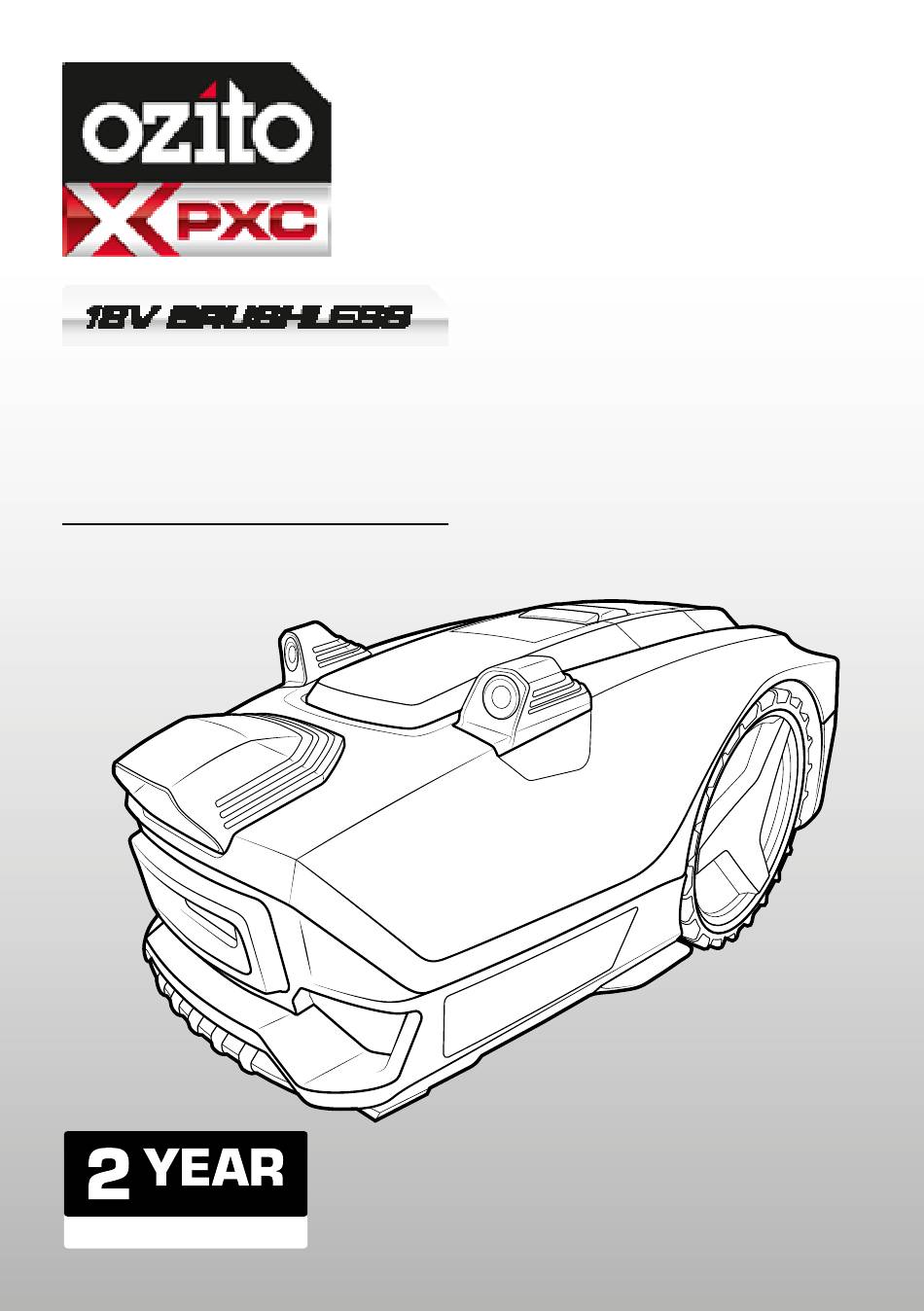

FREELEXO CAM
ROBOT LAWN MOWER
INSTRUCTION MANUAL
ozito.com.au
REPAIR WARRANTY*
PXRLMS-500
+1 YEAR ONLINE REGISTRATION
0524
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PXRLMS-500 and is the answer not in the manual?

Questions and answers

Related Manuals for Ozito PXRLMS-500

Summary of Contents for Ozito PXRLMS-500

  • Page 1 FREELEXO CAM ROBOT LAWN MOWER INSTRUCTION MANUAL ozito.com.au REPAIR WARRANTY* PXRLMS-500 +1 YEAR ONLINE REGISTRATION 0524...

  • Page 2: Electrical Safety

    Children should be supervised to ensure that they do not play with the appliance. • This machine is compatible and only to be used with all batteries & chargers from the Ozito PXC range. Refer to the PXC battery and charger manuals for information regarding charging, use and storage.
  • Page 3 GENERAL MACHINE SAFETY WARNINGS f) Dress properly. Do not wear loose clothing or jewellery. Keep your hair and clothing away from moving parts. Loose clothes, jewellery or long hair can be caught in moving parts. h) Do not let familiarity gained from frequent use of machines allow you to become complacent and ignore machine safety principles.

  • Page 4: Lawn Mower Safety Warnings

    LAWN MOWER SAFETY WARNINGS WARNING! If not used properly this lawn mower can be dangerous! This lawn mower can cause serious injury to the operator and others, the warnings and safety instructions must be followed to ensure reasonable safety and efficiency in using this lawn mower. The operator is responsible for following the warning and safety and instructions in this manual and on the lawn mower.
  • Page 5 5. Do not use damaged battery chargers. 6. Do not use the supplied battery charger to charge other cordless tools. Only charge Ozito Power X Change rechargeable batteries with an Ozito Power X Change Charger. 7. The battery pack may become warm during use. Allow the battery pack to cool to room temperature before commencing with the charging.

  • Page 6: Table Of Contents

    CONTENTS SAFETY WARNINGS..........Page 2 SPECIFICATIONS..........Page 7 KNOW YOUR PRODUCT........Page 8 Control Panel..........SETUP & PREPARATION........Page 11 1. How it Works..........2. Controls and Settings....... 3. Preparation..........4. The Lawn Mowing Boundary....5. Charging Station & Guide Cable.... 6.

  • Page 7: Specifications

    SPECIFICATIONS FREELEXO CAM ROBOT LAWN MOWER Input: No Load Speed: 3,400/min Cutting Diameter: 180mm Cutting Heights: 20 - 60mm (Stepless) Number of Blades: Mowing Area Gradient: 25% (14o) max. IP Rating: IP44 Noise Rating: 57dB Weight: 8.75g CHARGING STATION Input: 100-240V ~ AC 50/60Hz Output: 23V DC, 1500mA...

  • Page 8: Know Your Product

    KNOW YOUR PRODUCT 1. Control Panel 2. Cutting Height Adjustment 3. Camera 4. Distance Sensor 5. Control Panel Cover 6. STOP Button/Control Panel Cover Release Button 7. Rain Sensor 8. Battery Cover 9. Carry Handle-Front 10. Front Wheel 11. USB Connection 12.

  • Page 10: Control Panel

    KNOW YOUR PRODUCT - CONTROL PANEL 1. Time LED’s: Illuminates for the corresponding daily mowing time selected 2. Rain Sensor LED: Indicates as to whether the rain sensor has triggered 3. Mowing Times/PIN Numbers: Buttons for setting the mowing time and for entering the PIN 4.

  • Page 11: Setup & Preparation

    SETUP & PREPARATION 1. HOW IT WORKS Read the operating instructions fully before you start work on the installation of the robot lawn mower. The quality of the installation work has a direct effect on the mowing results. General Overview of the Technology. The robot lawn mower chooses its direction on a random basis.
  • Page 12 SETUP & PREPARATION (cont.) 1. HOW IT WORKS (cont.) • The global navigation satellite system (GNSS) is also used to acquire location-specific sunrise and sunset data. There must be sufficient daylight for the robot lawn mower to work properly. Check the lens of the camera unit regularly for signs of dirt and clean as required. Sensors, Camera and GNSS Module The robot lawn mower is equipped with a number of safety sensors, a camera and a Global Navigation Satellite System (GNSS) module.
  • Page 13 • Magnetic tape sensor: The robot lawn mower is equipped with a magnetic tape sensor for recognizing a magnetic tape lying on the ground. When the robot lawn mower comes across a magnetic tape it will stop and begin to mow again in a random direction. The magnetic tape serves as a virtual boundary for creating areas of the garden where the robot lawn mower is not allowed to mow.

  • Page 14: Controls And Settings

    SETUP & PREPARATION (cont.) 2. CONTROLS AND SETTINGS Main Switch The robot lawn mower is equipped with a main switch. The switch is accessed from underneath the robot mower. Use the Main Switch to switch the robot lawn mower ON ( I ) and OFF ( 0 ).
  • Page 15 A locking mechanism prevents unauthorised use of the robot lawn mower without a valid code. You have to enter a personal four-digit security code to unlock the robot lawn mower. • Unlock the Control Panel 1. Press the ‘STOP’ button to open the control panel cover and press the ‘Padlock’ button. 2.
  • Page 16 SETUP & PREPARATION (cont.) 2. CONTROLS AND SETTINGS (cont.) • Setting the Mowing Time Duration (Operating Hours) Important!: The time you set this Robot Mowers mow time duration will be the same time it mows every day. ie I made these changes at 11am and the mower will go out this time every day or second day at 11am.
  • Page 17 4. Press the ‘START A/B’ button and close the control panel cover to restart the robot lawn mower. The 3 Seconds time at which the change was made will become the same time daily start time. The number of hours shown (8 Hours for example) is the daily work duration (mowing time).
  • Page 18 SETUP & PREPARATION (cont.) SETUP & PREPARATION SETUP & PREPARATION SETUP & PREPARATION (cont.) 2. CONTROLS AND SETTINGS (cont.) • STOP Status When you press the ‘STOP’ button, the robot lawn mower will adopt a ‘STOP’ status and wait for further instructions. This will be indicated by the time LEDs flashing one after the other. The robot lawn mower will interrupt its mowing until this ‘STOP’...

  • Page 19: Preparation

    3. PREPARATION Grass 60mm or Shorter If the grass is taller than 60mm (depending on your species of grass) it has to be shortened first to avoid exposing the robot lawn mower to excessive load and adversely affecting its operating efficiency. 1.
  • Page 20 SETUP & PREPARATION (cont.) SETUP & PREPARATION SETUP & PREPARATION (cont.) SETUP & PREPARATION (cont.) 3. PREPARATION (cont.) Fitting & Removing the Battery 1. Carefully lift open the battery cover and slide the battery into the robot lawn mower aligning the ribs so that it clicks into place. 2.

  • Page 21: Adjusting The Cutting Height

    Adjusting the Cutting Height 1. Press the ‘STOP’ button on the robot lawn mower to open the Control Panel Cover and unlock the control panel following the unlock procedure. 2. Rotate the Cutting Height Adjustment dial to select the desired cutting height. Always start with a higher cutting height and reduce it in small steps until you reach the desired height.

  • Page 22: The Lawn Mowing Boundary

    SETUP & PREPARATION (cont.) SETUP & PREPARATION 4. THE LAWN MOWING BOUNDARY The robot lawn mower uses the camera unit to check the boundaries of the mowing area. The camera unit analyses the mowing area lying ahead of it (approx. 1m²). If the robot lawn mower comes up against a boundary of the mowing area, it can use various parameters to determine a boundary quality value.
  • Page 23 • Lawn Boundary with Water: The robot lawn mower will recognise the lawn boundary as described above. However where there is water involved, we recommend protecting the boundary with a raised edge or magnetic tape. > 500mm • Raised Edge 250mm or Higher: The mower will detect the raised object with a minimum height of 250mm using it’s distance or collision sensors.
  • Page 24 SETUP & PREPARATION (cont.) SETUP & PREPARATION SETUP & PREPARATION (cont.) SETUP & PREPARATION (cont.) 4. THE LAWN MOWING BOUNDARY (cont.) • Raised Edge 100mm or Higher: The robot lawn mower can use the collision sensors to collide with obstacles below 250mm. This function can also be used to define a lawn boundary.
  • Page 25 Preparing Your Lawn Boundary 1. Start at any point of the lawn boundary and examine the boundary quality based on step 2 below. Follow the boundary line until you arrive back at your starting point. Look for over hanging flowers, plants or branches that may obscure the line of sight of the robot mower and some pruning may be required.

  • Page 26: Charging Station & Guide Cable

    SETUP & PREPARATION (cont.) SETUP & PREPARATION SETUP & PREPARATION (cont.) 5. CHARGING STATION & GUIDE CABLE WARNING! DO NOT PLUG POWER ADAPTOR INTO POWER SOURCE OR SWITCH ON UNTIL INSTALLATION OF CHARGING STATION AND GUIDE CABLE IS SATISFACTORILY COMPLETED. The Charging Station and Guide Cable will be used to create a search loop for the Robot Lawn Mower to return to when finished mowing or the battery requires charging.
  • Page 27 Installing the Search Loop The guide cable can be laid both on the ground and in the ground. The pegs might break while they are being hammered into hard or dry ground. If the ground is very dry, water the lawn before installing the guide cable.
  • Page 28 SETUP & PREPARATION (cont.) SETUP & PREPARATION SETUP & PREPARATION (cont.) 5. CHARGING STATION & GUIDE CABLE (cont.) 3. Using the supplied 300mm ruler, ensure Lawn Boundary Guide Cable that the entire length of the guide cable raised above ground has at least a 300mm gap left and right of any obstacles or lawn boundaries.

  • Page 29: Calibration & Initial Charge

    6. CALIBRATION & INITIAL CHARGE The Robot Lawn Mower must calibrate the position of the Charging Station with the help of the Global Navigation Satellite System (GNSS) in order to find its way back to the search loop and to the Charging Station. •...
  • Page 30 SETUP & PREPARATION (cont.) SETUP & PREPARATION (cont.) SETUP & PREPARATION (cont.) SETUP & PREPARATION SETUP & PREPARATION (cont.) 6. CALIBRATION & INITIAL CHARGE (cont.) 2. Open the battery cover and insert the 18V battery into the Robot Mower. 3. Press the Main Switch into the ON ( I ) position.

  • Page 31: Charging Information

    Charging Information WARNING! DO NOT USE THE POWER SUPPLY UNIT IF IT IS DAMAGED. IN THE EVENT OF ANY DAMAGE TO CABLES OR THE POWER SUPPLY UNIT, CONTACT AN AUTHORIZED PROFESSIONAL IMMEDIATELY FOR REPLACEMENT WARNING! • DO NOT CHARGE THE ROBOT LAWN MOWER IN A DAMP LOCATION. •...
  • Page 32 SETUP & PREPARATION (cont.) SETUP & PREPARATION (cont.) APPLICATIONS SETUP & PREPARATION (cont.) SETUP & PREPARATION (cont.) 6. CALIBRATION & INITIAL CHARGE (cont.) If there is an obstacle on the guide cable during the trip back to the charging station, the robot lawn mower will come to a stop in front of the obstacle after several attempts and will not be able to get back to the charging station.

  • Page 33: Obstacles In The Mowing Area

    7. OBSTACLES IN THE MOWING AREA Obstacles are objects in the mowing area can sometimes be thick matted grass areas which the robot lawn mower considers an obstacle and should be addressed, to remove this which can often mean lower mowing or scarifying. The robot lawn mower can recognise many obstacles by means of the sensors.

  • Page 34: Magnetic Tape

    SETUP & PREPARATION (cont.) SETUP & PREPARATION (cont.) SETUP & PREPARATION (cont.) SETUP & PREPARATION (cont.) 8. MAGNETIC TAPE Obstacles such as fences and hedges which poorly reflect the distance signal transmitted by the robot lawn mower are not detected in part or only very late. Obstacles with a weak optical contrast relative to the mowing areas can also be difficult to recognize.
  • Page 35 2. Use the pegs to fasten the magnetic tape to the ground, spacing each peg a maximum of 1m apart. The magnetic tape can be installed both on the ground and at a depth of approx. 50mm in the ground. >800mm Important!: Keep a distance of at least 800mm away from the guide cable and between two...

  • Page 36: Operation

    OPERATION 9. INITIALISING First Initialising Run The mower uses it’s first run to map out the boundaries of your lawn. The mower will only begin cutting when an area has been mapped. Depending on the size of your lawn, the initialising run may take several hours and in the case of very large lawns may also require multiple runs in order to recharge the battery.
  • Page 37 1. Press the ‘STOP’ button on the Robot Lawn Mower to open the Control Panel Cover. 2. Press the ‘Padlock’ button to unlock the control panel. Note: LED illuminated and Beep notification when key pad pressed correctly. 3. Enter the PIN slowly in sequence and confirm the entry with the ‘OK’...
  • Page 38 OPERATION OPERATION (cont.) 9. INITIALISING (cont.) Guide Cable LED When the robot lawn mower is in automatic mode, it checks in regular intervals whether the current boundary quality value of the mowing area has changed compared to its reference value. As soon as the robot lawn mower is in the charging station, the corresponding status of the last determined comparative boundary quality value will be displayed via the Guide Cable LED.

  • Page 39: Switching On

    10. SWITCHING ON Checking the Installation of the Guide Cable and Charging Station When the LED on the charging station lights up green, the mowing area is ready for the robot lawn mower. If the Green led is flashing there is something wrong with the loop connection.

  • Page 40: Checking The Mowing Area

    OPERATION (cont.) 10. SWITCHING ON (cont.) Checking the Mowing Area Evaluate the boundaries of your lawn realising that your mower detects , green grass, contrasting colours, physical edges and the camera vision may be confused by branches, overhanging grass or plants. Walk the entire boundary with line trimmer or other tools to remove any confusion for your mower.
  • Page 41 Checking the position of the Charging Station Check the position of the charging station by positioning the robot lawn mower at various points of the lawn after mapping calibration is completed and have the mower search for the charging station. Note: The robot mower will search for charging base using GNSS and may require time to return to charging station.

  • Page 42: Secondary Areas

    OPERATION (cont.) 11. SECONDARY AREAS Main Area and Secondary Area Secondary area (B) refers to a work area that is not directly connected to the main area (A), Area B is defined as an area where there is a partition in the mowing area like a fence, path, stepping stones or garden edging that stops the mower being able to return to area A.
  • Page 43 Operating in Additional Areas For use in additional new areas, you must delete secondary are B mapping sequence.

  • Page 44: Troubleshooting

    Requesting a new PIN if you lose it Contact Ozito Customer Service for instructions on how to receive and reset your PIN. Have your receipt and the serial number of the robot lawn mower ready as you need them in order to get your PIN.
  • Page 45 Switch off the main switch OFF ( 0 ) and then switch it back on again ON ( I ) to restart the robot lawn mower. GNSS LED Hardware fault on the GNSS module. Contact Ozito Customer Service. Illuminated RED Battery LED The battery is fully charged.
  • Page 46 TROUBLESHOOTING (cont.) Robot Lawn Mower (cont.) Fault Possible cause Remedy Guide Cable The robot lawn mower is situated in the The robot lawn mower is ready. LED Illuminated charging station or near the search loop GREEN and the deviation from the reference quality value is small.
  • Page 47 Switch off the main switch OFF ( 0 ) and then switch it back ON ( I ) again to restart the robot lawn mower. Check the rear wheels and the blade plate for blockages. If you are unable to remove the blockages, contact Ozito Customer Service.
  • Page 48 To avoid cutting yourself, be sure to switch off the robot lawn mower and wear work gloves while you clean the blades. Damaged blade drive or drive motor. Contact Ozito Customer service. Other parts of the robot lawn mower are Contact Ozito Customer service. damaged.
  • Page 49 Magnetic Tape Fault Possible cause Remedy The robot lawn The magnetic tape is laid too deep in Lay the magnetic tape on the ground or at a depth of approx. 50mm in the mower fails to the ground. ground. recognize the magnetic tape The magnetic tape does not work Wait for the temperature to cool.

  • Page 50: Maintenance

    MAINTENANCE WARNING! PRIOR TO ANY MAINTENANCE SWITCH OFF AND DISCONNECT THE AC POWER ADAPTOR FROM THE CHARGING STATION. ALWAYS ENSURE THE ROBOT LAWN MOWER BLADE HAS COMPLETELY STOPPED, THE MAIN SWITCH IS SWITCHED OFF ( 0 ) AND REMOVE THE BATTERY. Cleaning •...
  • Page 51 ALWAYS USE GLOVES WHEN HANDLING THE BLADES. SHARP EDGES COULD CAUSE INJURY. Only replace the blades with a genuine Ozito replacement blade, as this will ensure top performance and safety under all conditions. The robot lawn mower is equipped with three blades fitted to a blade plate. These blades have a service life of up to 3 months when used everyday (if they do not strike any obstacles).

  • Page 52: Software Update

    MAINTENANCE (cont.) Software Update By registering online at www.ozito.com.au within 30 days of purchase for the additional 1 Year Repair Warranty, you will be contacted when a software update becomes available. You will need to copy the new software to an empty USB stick (not included).
  • Page 53 Storage • Fully charge the battery before putting it into storage over winter and switch off the robot lawn mower at the main switch OFF ( 0 ). Take the battery out of the equipment. Disconnect the AC power supply adaptor from the power supply and the charging station. •...

  • Page 54: Spare Parts

    Blades 12 Pack PXRMB-012 Garage (accessory) PXGAR-500 For further information, or any parts or accessories not listed here, visit www.ozito.com.au or contact Ozito customer service Australia 1800 069 486 New Zealand 0508 069 486 E-mail: enquiries@ozito.com.au CARING FOR THE ENVIRONMENT Tools that are no longer usable should not be disposed of with household waste but in an environmentally friendly way.

  • Page 55: Description Of Symbols

    DESCRIPTION OF SYMBOLS Volts Hertz Alternating current Watts Ø Direct current Diameter Ingress protection from water No load speed Decibel level Warning /min Milliamperes Revolutions or reciprocations per minute SMPS (Switch mode power supply unit) Wear safety gloves Regulator compliance mark (RCM) Thrown objects can cause severe injury.

  • Page 56: Warranty

    2 YEAR REPAIR WARRANTY Your Ozito PXC 18V FREELEXO CAM Robot Mower & Charging Station are guaranteed for a period of 24 months from the original date of purchase and are intended for DIY (Do It Yourself) use only. If the product is defective it will be repaired or replaced in accordance with the terms of this warranty.
