Summary of Contents for Srne SR-ATS380S63-S3

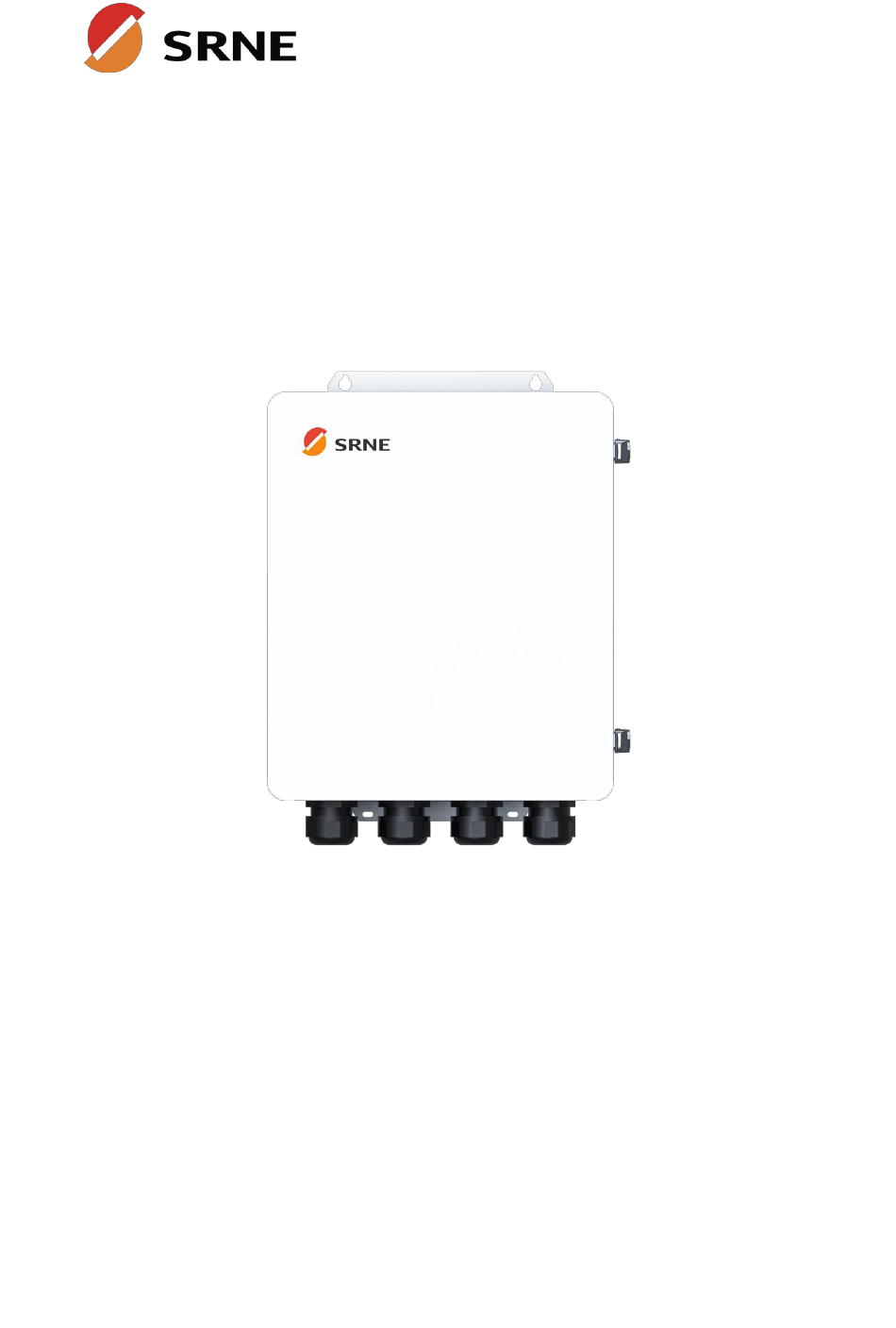

- Page 1 Smart switch box User Manual SR-ATS380S63-S3 V1.0...
-
Page 2: Table Of Contents
CONTENTS 1.Safety ............................. 1 1.1、How to use this manual ..................... 1 1.2、Symbols in this manual ....................1 1.3.Safety instructions ......................2 2.Production Instructions ......................2 2.2 Features ..........................2 2.5. Overview of external interface pins ................5 2.6.Dimension drawing ......................7 3. - Page 3 8.Datasheet ............................21 V1.0...
-
Page 4: Safety
1.Safety 1.1、How to use this manual This manual contains important information、guidelines、operation and • maintenance for ATS • The manual must be followed during installation and maintenance. 1.2、Symbols in this manual Symbol Description DANGER indicates a hazardous situations which if not avoided will △... -
Page 5: Safety Instructions
2.Production Instructions 2.1Instructions SR-ATS380S63-S3 is generally used for UPS input front-end, which is used for switching between two different AC sources. ATS is mainly used in emergency power supply systems, switching appliances that automatically transfer load circuits from one power supply to another (backup) power supply to ensure continuous and reliable operation of critical loads. -
Page 6: System Connection Diagram
2.3 System connection diagram... -
Page 7: Product Overview
2.4 Product Overview Cover clips Grounding Atomatic transfer switch GRID Input port AC Iput（L1+L2+L3+N） UPS Input port UPS Iput（L1+L2+L3+N） Output 1 port Output 2 Output 2 port Output 1... -
Page 8: Overview Of External Interface Pins
2.5. Overview of external interface pins 1-2:common switching signal output, and external power connecting indication signal output, (dry contact). 3-4：standby switching signal output, and external power connecting indication signal output, (dry contact). 5-6：firefighting with double connections (dry contact or access to DC 24V available). - Page 9 9-10-11：generator control signals 9-Normally open terminal; 10-Common terminal; 11-Normally closed terminal; When the standby power supply is the auto-start generator set, the user may finish automatic start of the generator functions by connecting the generator controller through 10-11terminals.Inside 9-10-11, there is a group of dry contacts for the passive relay, where 10 is common terminal for relay, 11 is normally closed terminal, 9 is the normally open point;...
-
Page 10: Dimension Drawing
2.6. Dimension drawing... -
Page 11: Installation
3. Installation 3.1 Packing list Before unpacking the SR-ATS380S63-S3, inspect the outer packaging for visible damage, such as cracks or other possible signs of damage inside. If there is any packaging abnormality, please do not open it and contact us as soon as possible. -
Page 12: Select The Mount Location
3.2.Select the mount location ATS series can be used outdoors (protection class IP54). Please consider the followings before selecting the location： • Choose the solid wall to install the ATS. • Mount the ATS at eye level. • The ambient temperature should be between-25~60℃（-13~140℉）... -
Page 13: Installation Tool Preparation
Punch 4 mounting holes in the wall with an hammer drill according to the specified size, and insert 4 M5*35 expansion screws above. △ CAUTION 1、When handling SR-ATS380S63-S3, please pay attention to maintain the balance to prevent the machine from falling and injuring the operator. -
Page 14: Load Connection
4.Connection 4.1.AC sources connection 4.2.Load connection Cable recommend Model Cable Diameter Max input current 10mm /6AW SR-ATS380S63-S3... -
Page 15: Operation
△ DANGER Please make sure that the positive and negative terminals of the distribution board • are connected correctly, and do not connect them in reverse, otherwise the distribution board may be damaged. Before connecting AC inputs and outputs, the circuit breaker must be opened to •... - Page 16 and the undervoltage or underfrequency indicator flashes at 1Hz. Red LED, indicating the backup power supply status. Normally, the Backup power source supply is "steady on". Any phase off indicator is off. The overvoltage or Backup power overfrequency indicator blinks at 5HZ, undervoltage or underfrequency indicator blinks at 1HZ.
- Page 17 "off". To switch the working mode of the controller to Automatic mode or Manual mode, press Automatic or Automatic or Manual Manual Double key to deactivate the fire signal. This is a multiplexing key, manual mode, press this key, dual power forced to I common switch closing; In the Ⅰcommon/ △key Settings state, press this key to set the parameter increase.
-
Page 18: Operation Setting
5.2.Operation setting ①P-01 Power mode：0：Grid--Grid；1：Grid--Generator；Defaut setting：Grid--Generator； ②P-02 Work mode：0：Self-work and self-recovery；1：Self-work and not self-recovering； default：Self-work and not self-recovering； ③P-03 Power Priority：0：Normal priority；1：Backup Priority； Default：Normal priority； ④P-03 Conversion delay time:0~60s Default：0.5s； ⑤P-03 Return the delay time:0~60s Default：0.5s； Press “Settings” Press “Up”and “Down” P-01. -
Page 19: Led Indicator
5.3.LED indicator Indicator status description Common power Grid connected source Grid disconnected UPS/Generator connected Backup power source UPS/Generator disconnected Common power source is loading Normal switch Common power source is not loading Backup power source is loading Backup switch Backup power source is not loading Enable automatic mode Automatic Enable manualc mode... -
Page 20: Trouble Shooting
6.Trouble shooting 6.1 Lack of phase 1、When the main power is switched to backup power, the back power is lack of phase, and it can be switched (when the main power is lost, when the backup power is lack of phase, the ATS will act, and the missing phase is the live wire) Note:When the main and backp power L1 aree lost at the same time, the ATS will be shut down directly (when the L1 of main power lost,it will be switched to the backup power it will not be... -
Page 21: Wiring
6.2 Wiring 1、When the main power is lost and the backup power is present but the backup power line connection is reversed, the ATS switches to the backup power. 2、When the main and standby power are connected at the same time, but the main wire sequence is misconnected and reversed, the ATS will not automatically switch to the standby side. -
Page 22: System Maintenance
7.System maintenance In order to ensure the long-term operation of SR-ATS380S63-S3, it is recommended to perform routine maintenance as described in this section. △ DANGER 1.When carrying out system maintenance, cleaning, electrical connection, grounding reliability and other maintenance, please perform the above operations after power-off to ensure that SR-ATS380S63-S3 has no power and ensure personal safety. - Page 23 the cable in contact with the metal surface for cuts. Check that the plug of the unused waterproof connector is properly inserted and the locking cap is secured. Ground Semi-annually/Once Check that all grounding cables are securely earthed reliability a year Check and carry out the conversion test to confirm that the product is working normally, pay attention to moisture-proof Conversion...
-
Page 24: Data Sheet
8.Datasheet Model SR-ATS380S63-S3 AC input（GRID） Grif connection Three phase Rated AC 380,400,415/342~440 voltage/Range Rated input 230V/400V voltage Rated input 50~60HZ(±0.3HZ) frequency range Max. current AC INPUT（UPS） Inverter Three phase connection Rated AC 380,400,415/342~440 voltage/Range Rated input 230V/380V voltage Rated input 50~60HZ(±0.3HZ) - Page 25 Max.Number of connection Load output Load connection Three phase Rated AC 380,400,415/312~485 voltage/Range Rated output 230V/380V voltage Rated output 50~60HZ(±0.3HZ) frequency range Max.Number of connection General Operating Temperature -25~60℃（45℃~60℃ Derating） range Ambient Humidty 0-100% Altitude 3000m Protective Class Class I Overvoltage Ⅲ...
- Page 26 Ingree IP54 Protective Dimension 452mm*382mm*143mm Weight 13.5KG Warranty 5 years Cetification IEC62109-1/-2 EN61000...
- Page 27 Contact US SRNE Solar Co.,Ltd. 4-5F,Building13A,Taihua Wutong Industrial Park,Shenzhen service@szshuori.com...
