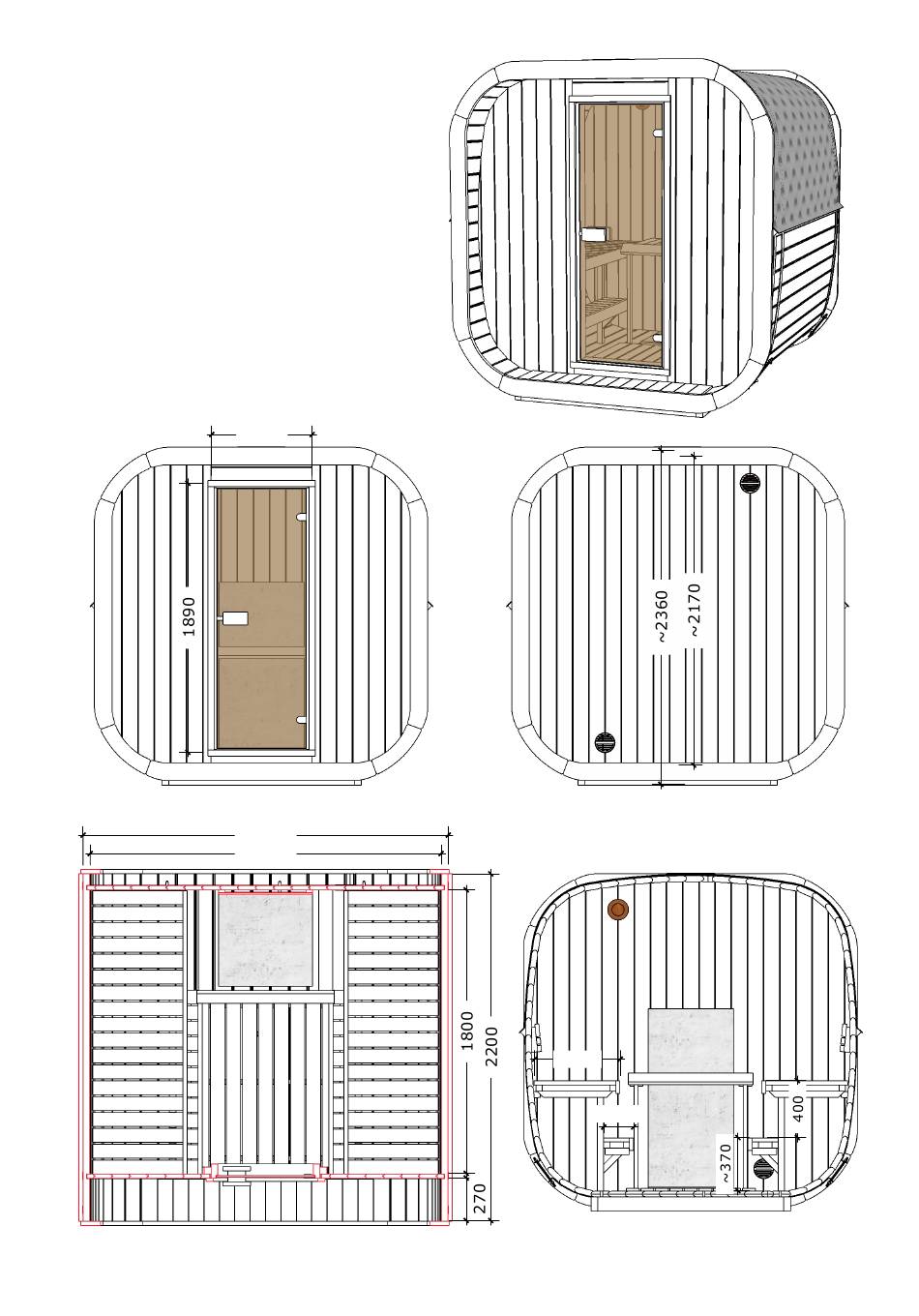

- Page 1 Icon Sauna 220, Ø226 2310 2220 (T-IC26-PES-PTS-101)
- Page 2 Sauna "Icon" 220,Ø226 NB! Please read whole manual before start. All given measurements are in millimeters! (T-IC26-PES-PTS-101)
- Page 3 Details list 1/6 Sauna "Icon" 220,Ø226 DET 1 47 60 Article. 2100 K-SM100/2100XX DET 2 1300 Article. K-SM100/1300 DET 3 1927 Article. 1796 T-STL117/1927XLM02 DET 3b 1927 Article. 1796 T-STL117/1927-01V DET 3a 1796 Article. T-STL117/1927-01P 1927 DET 3b/H 1796 Article.
- Page 4 Details list 2/6 Sauna "Icon" 220,Ø226 DET 6a DET 3 vastaspool 2200 Article. 1796 T-STL117/2200XL-01P DET 6b DET 3 vastaspool 1796 Article. 2200 T-STL117/2200XL-01V DET Ta Article. T-SL117/710UK1 DET Tb Article. T-TL94/710J DET Sb Article. T-IC26-PES/28-02V DET Sa Article. T-IC26-PES/28-02P DET Y1 Article.
- Page 5 Details list 3/6 Sauna "Icon" 220,Ø226 DET 10a Article. K-HP44/530XP-XP DET 10c Article. K-HP44/170 DET 10 1791 Article. TL-LAMOD-1791-02 DET 11a Article. K-HP44/700 DET 11 1164 Article. TL-LAMOD-1164/210 DET 11b Article. K-HP44/250XP-XP DET 20 Article. T-HL94/595 DET L Article. K-HL44/1200 DET 20a Article.
- Page 6 Details list 4/6 Sauna "Icon" 220,Ø226 DET 15b Article. TL-LAV42/90 DET 15c Article. TL-LAV42/770 DET 15d Article. TL-LAV90/870 DET 26 1760 Article. TL-STMOD-1760-02 DET 21 Article. U-7/19 DET 21c Article. K-HP44/1890 DET 21d Article. K-HP44/780 DET 21a Article. K-HL44/1860 DET 21b Article.
- Page 7 Details list 5/6 Sauna "Icon" 220,Ø226 DET 25a Article. MU-OL-IC-26-1 DET 25b Article. MU-OL-IC-26-2 DET 27 1080 Article. T-PORE-900/1080 Underlay felt 12 m. Article. KAT-AL DET N Article. KAT-HAR DET O Article. KAT-SIN DET B Article. MU-VITKL-RV DET A1 2300 Article.
- Page 8 Details list 6/6 Sauna "Icon" 220,Ø226 DET G Article. MU-VENT-100-PU DET F Article. MU-VENT-100-ZN Article. Article. KI-KERL-12-RV6 KI-ICO-160-220 L=~250 ~430 x350 (T-IC26-PES-PTS-101)
- Page 9 Sauna "Icon" 220,Ø226 Back 12x M Top view. 6x DET 2 mm=mm 2x DET 1 12x M mm=mm DET W Front Top view. Side view. DET B 4x M DET A1 DET 3 mm=mm Make all 3 sets, rest of them You will need later.
- Page 10 Sauna "Icon" 220,Ø226 28x M Use rubber mallet! Side view. Use rubber mallet! Side view. DET 3b/H have slot at the end. Top view. Fix screws over the one board, diagonally in every board. Fix DET 3b/H with Top view.
- Page 11 Sauna "Icon" 220,Ø226 Wooden front wall assembly 4x DET V 16x J 4x I Cut board from pallet L=~2100mm. (T-IC26-PES-PTS-101)
- Page 12 Sauna "Icon" 220,Ø226 Wooden back wall assembly 2x M Pre-drill holes Ø5 4x I Cut board from pallet L=~2100mm. (T-IC26-PES-PTS-101)
- Page 13 Sauna "Icon" 220,Ø226 Use waterlevel Brackets inside Make sure the marking on the wall is centered in the notch. 2x H (T-IC26-PES-PTS-101)
- Page 14 Sauna "Icon" 220,Ø226 4x H Use waterlevel Brackets inside DET 3c DET 3d Fix temporarily to support walls. Make sure the marking on the wall is centered in the notch. Predrill holes Ø4mm. 3x H (T-IC26-PES-PTS-101)
- Page 15 Sauna "Icon" 220,Ø226 Remove DET 3c/d from their temporary positions and use during the next step. Use rubber mallet! ~5-7 Important! DET 3c Leave space. DET 3d IMPORTANT! Be sure to leave a 5-7 mm. gap when tightening screws to leave room for adjustment when the outer bands (A2) are installed.
- Page 16 Sauna "Icon" 220,Ø226 DET 6a DET 6b DET 3d DET 3c Glue Raise slightly before installing the combined board Use wood glue Use rubber mallet! between boards Use proper size screws(5pc.) Pre-drill holes Ø4 (T-IC26-PES-PTS-101)
- Page 17 Sauna "Icon" 220,Ø226 1xDET A2 12x H ~240 mm 2xDET 4a Pre-drill holes Ø4 56x H 14xDET 4b Pre-drill holes Ø4 Use ratchet strap so close to the ends that You can remove screws. Don´t fix it very tightly yet!
- Page 18 Sauna "Icon" 220,Ø226 Remove all screws 2xDET A2 ~240 mm Proceed the same way as described on previous page. Remove all brackets. Now fix all nuts tightly! Upper vent Remove ratchet strap! 1xDET G 6x K Lower vent 3xDET F...
- Page 19 Sauna "Icon" 220,Ø226 Install DET 10c in the Pre-drill holes Ø4 middle of the saunaroom. 2x DET 10c 4x DET 10a 4x H 12x H Attention! Leave ~5 mm. gap from back of benching coming into contact with barrel staves!
- Page 20 Sauna "Icon" 220,Ø226 Use waterlevel Back wall Side view Pre-drill holes Ø4 Pre-drill holes Ø4 Pre-drill holes Ø4 8x H DET 11a 2x DET 10c Front wall (inside) Front wall (inside) 2x DET 11a Front wall (inside) Pre-drill holes Ø4 Pre-drill holes Ø4...
- Page 21 Sauna "Icon" 220,Ø226 Pre-drill holes Ø5 Pre-drill holes Ø5 10x J 4x I 2x J 5xDET 20 1xDET 20a 6x I(K) Leave the gap between board and wall. 2xDET L 1xDET 20b 2x J Pre-drill holes Ø5 2x DET 15a...
- Page 22 Sauna "Icon" 220,Ø226 Pre-drill holes Ø4 Place saunaheater first. 4x J 2x DET 26 6x H 1x DET 15d Pre-drill holes Ø4 2x M 1x DET 21 Attention! The door must open outwards. If you need the door handle to be...
- Page 23 Sauna "Icon" 220,Ø226 Press door tightly against the wall and fasten from inside 2x DET 21a 2x DET 21b 8x H 16x J 20x H 5x H 5x H 2xDET 22 (T-IC26-PES-PTS-101)
- Page 24 Sauna "Icon" 220,Ø226 DET N NB! Before roof shingles, install underlay felt. Check underlay felt installation manual on extra pages. Attention! Refer to shingle installation manual provided in package. End view. End view. Cut and use it on the ohter side...
- Page 25 Sauna "Icon" 220,Ø226 Leave small gap between boards. 4xDET 25a 4xDET 25a 4xDET 25b 4xDET 25b 28x H 28x H 1x DET 27 (T-IC26-PES-PTS-101)
- Page 26 Underlay felt installation manual. Attention! Refer to underlay installation manual provided in package. Cut off Remove Proceed same way bottom film first. ~50 mm as shown in diagram I Cut and ~50 mm over the edge. remove top film over the edge. Turn end to Clamp end the edge.
