MOUNT INSTALLATION
SPECIFICATIONS
Compatibility
Cobalt
Static Sapphire
Power Supply
120 volt & solar power
Operating Environment
Outdoor use
|
O X B L U E . C O M
1 7 7 7 E L L S W O R T H I N D U S T R I A L B LV D N W, AT L A N TA , G E O R G I A 3 0 3 1 8
VPTZ Sapphire

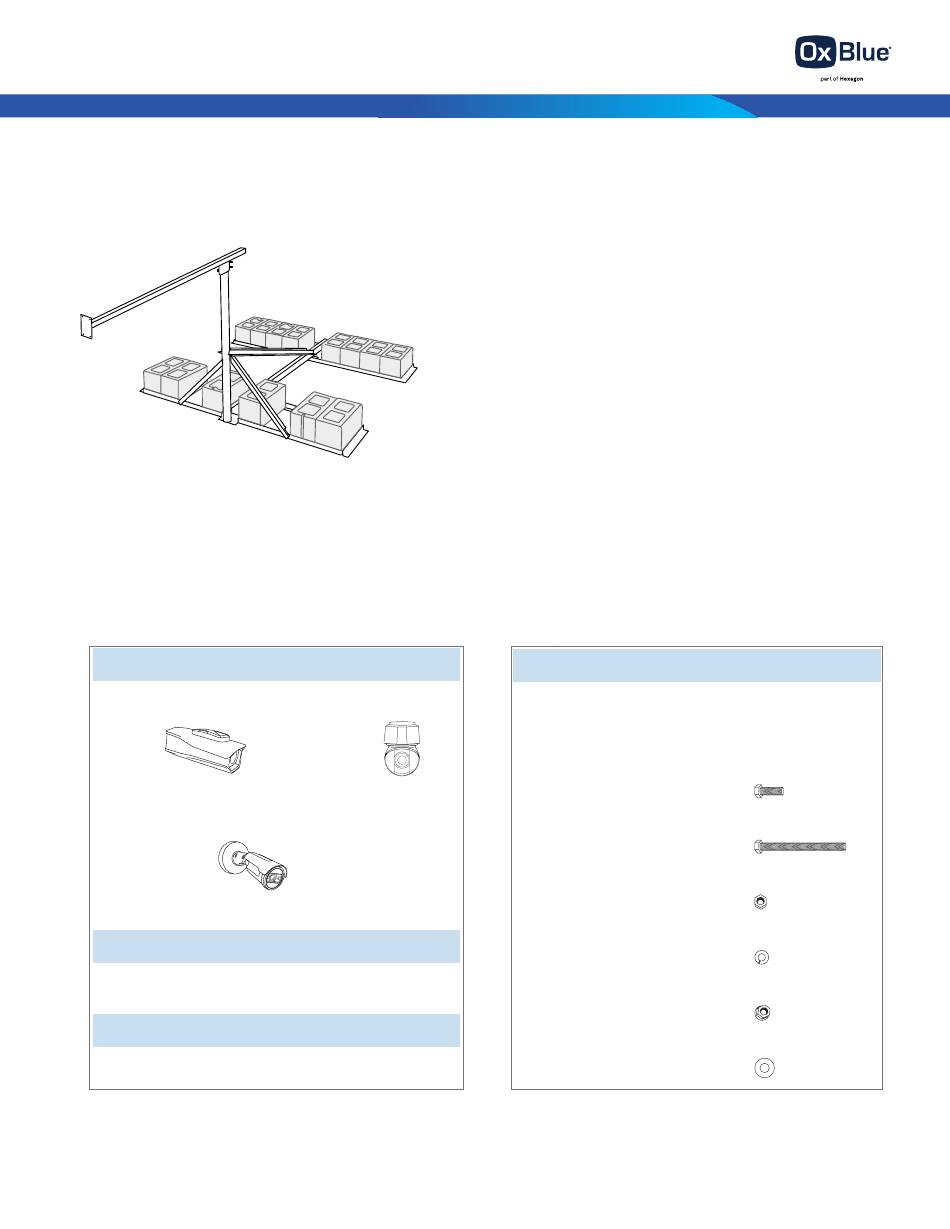

CANTELIVER MOUNT
The canteliver mount is a heavy duty
non-penetrating roof mount for ground
and roof-top mounting. It's 60" cantilever
arm mounts the camera over the
building's parapet wall.
Hardware
Support tube assembly (1), 6' ballast angle (4), 16" side
pad (4), mast (1), rear brace (1), right side brace (1), left
side brace (1), mast adaptor (1), camera arm with axis
plate (1) camera mount (1), coupler (1), cinder blocks
(not provided)
A
3/8"x1" bolt GR.5 (18)
B
3/8" x 4" thread bolt GR.5 (3)
C
3/8" hex nut (19)
D
3/8" lockwasher (19)
E
3/8" whiz lock nut (2)
F
3/8" uss flatwasher (2)
|
8 8 8 . 8 4 9 . 2 5 8 3
®
Advertisement
Related Manuals for Hexagon OXBLUE CANTELIVER MOUNT
Summary of Contents for Hexagon OXBLUE CANTELIVER MOUNT
- Page 1 ® MOUNT INSTALLATION CANTELIVER MOUNT The canteliver mount is a heavy duty non-penetrating roof mount for ground and roof-top mounting. It’s 60” cantilever arm mounts the camera over the building’s parapet wall. SPECIFICATIONS Compatibility Hardware Support tube assembly (1), 6’ ballast angle (4), 16” side pad (4), mast (1), rear brace (1), right side brace (1), left side brace (1), mast adaptor (1), camera arm with axis plate (1) camera mount (1), coupler (1), cinder blocks...
- Page 2 MOUNT INSTALLATION Mast Support Tube Assemble the two ballast trays using Attach the support tube and mast to four sets of hardware A, C, D listed on the ballast trays using four sets of A, C, page one. D. The mast is attached at the front end using the same sets of hardware.
