Hadex T343 Operating Instructions

T343 - Switching clock 230V digital on DIN rail
Dear Customers,
Thank you for your trust and for purchasing this product. This instruction manual is
included with the product. It contains important instructions for commissioning
and operating the product. If you pass the product on to other persons, make sure
that you also give them this manual. Keep this manual so that you can read it again
at any time!

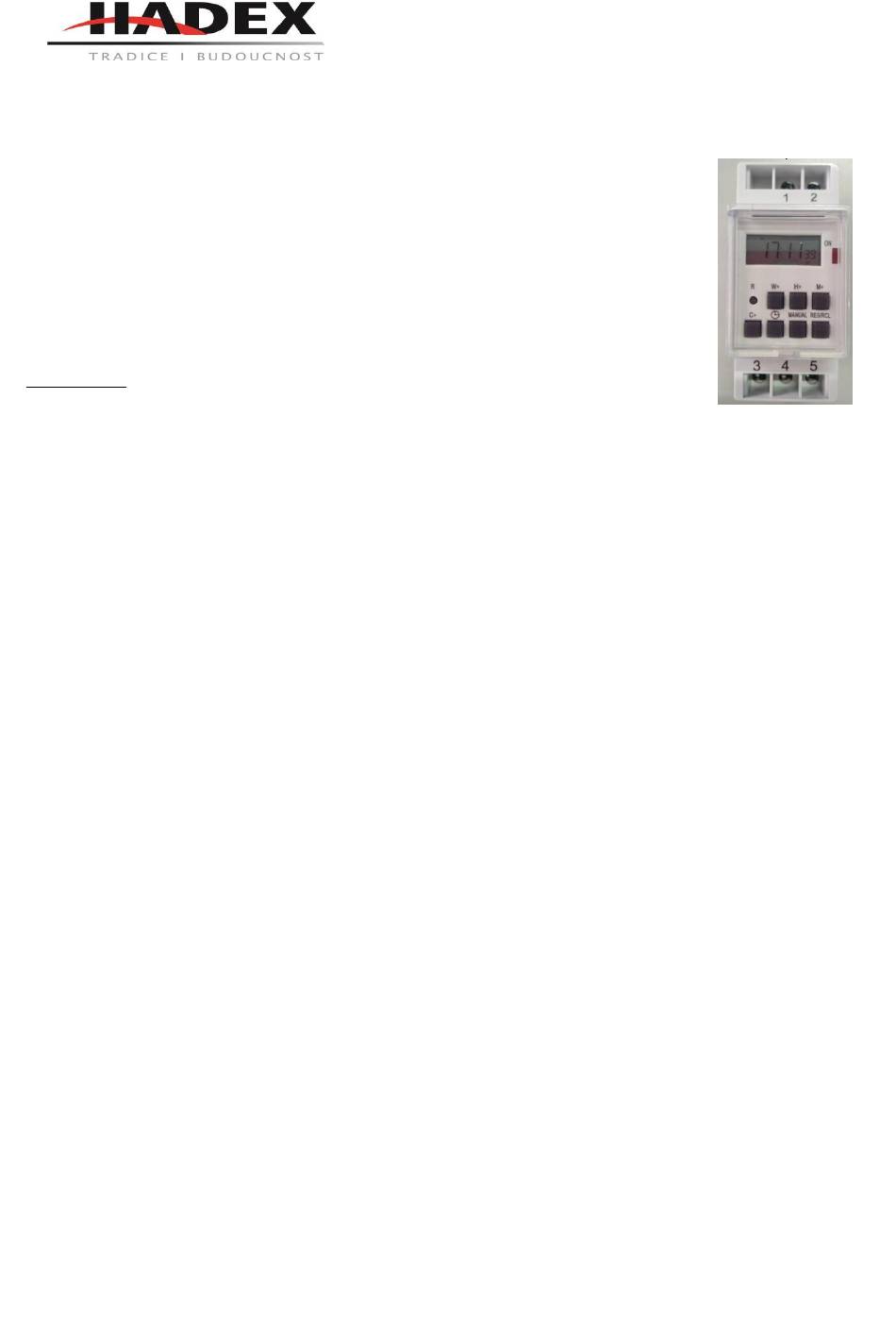

Description:
IMPORTANT
Do not connect an appliance whose load exceeds 16 Amp. If the timer needs to be cleaned, unplug it
and wipe the timer with a dry cloth.
DO NOT IMMERSE THE TIMER IN WATER OR ANY OTHER LIQUID.
Heaters and similar appliances should never be left unattended during operation. The manufacturer
recommends that such devices should not be connected to timers.

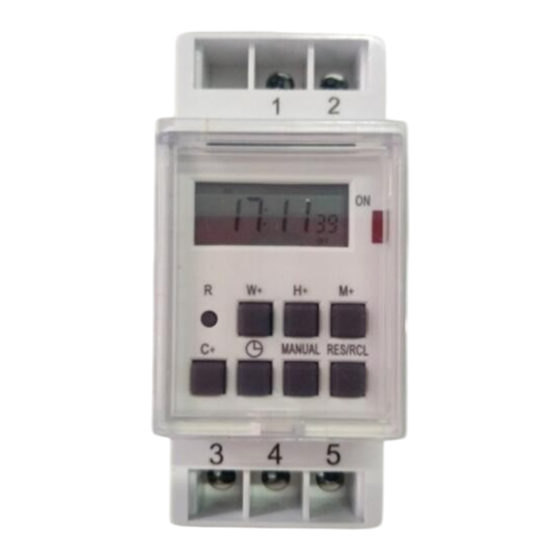

DESCRIPTION OF PRINTS
a) RESET: Clears all data in memory, including the current time and all programs.
b) CLOCK: Set the current time in combination with the WEEK, HOUR, MINUTE buttons. Select 12 or
24 hour mode in combination with the TIMER button
(timer). Activate the Daylight Saving Time function in combination with the MANUAL button.
c) TIMER: Program settings combined with WEEK, HOUR, MINUTE buttons. Select the 12 or 24
hour mode in combination with the CLOCK button.
d) MANUAL: Selection of timer operating modes.
e) WEEK: Set the week in combination with the CLOCK or TIMER button.
f) HOUR: Set the hour in combination with the CLOCK or TIMER button.
j) MINUTE: Set the minute combined with the CLOCK or TIMER button.
h) RST/RCL: Overwrites programs or recalls overwritten programs.
i) LED indicator: displays the output power status. When the indicator is on, the power output is
displayed. If the indicator is not lit, no output power is available.
GENERAL INFORMATION
1. 10 ON/OFF programs with 1 increments.
2. Output LED indicator.
3. Displays seconds.
4. Optional manual on/off.
5. Selectable 12/24 hours mode.
6. Daylight Saving Time function.
7. 16 combinations of day or blocks of days available as follows:
M
ON
TU
E
W
ED
TH
U
FRI
SA
