Summary of Contents for Turtle DANTE PRO

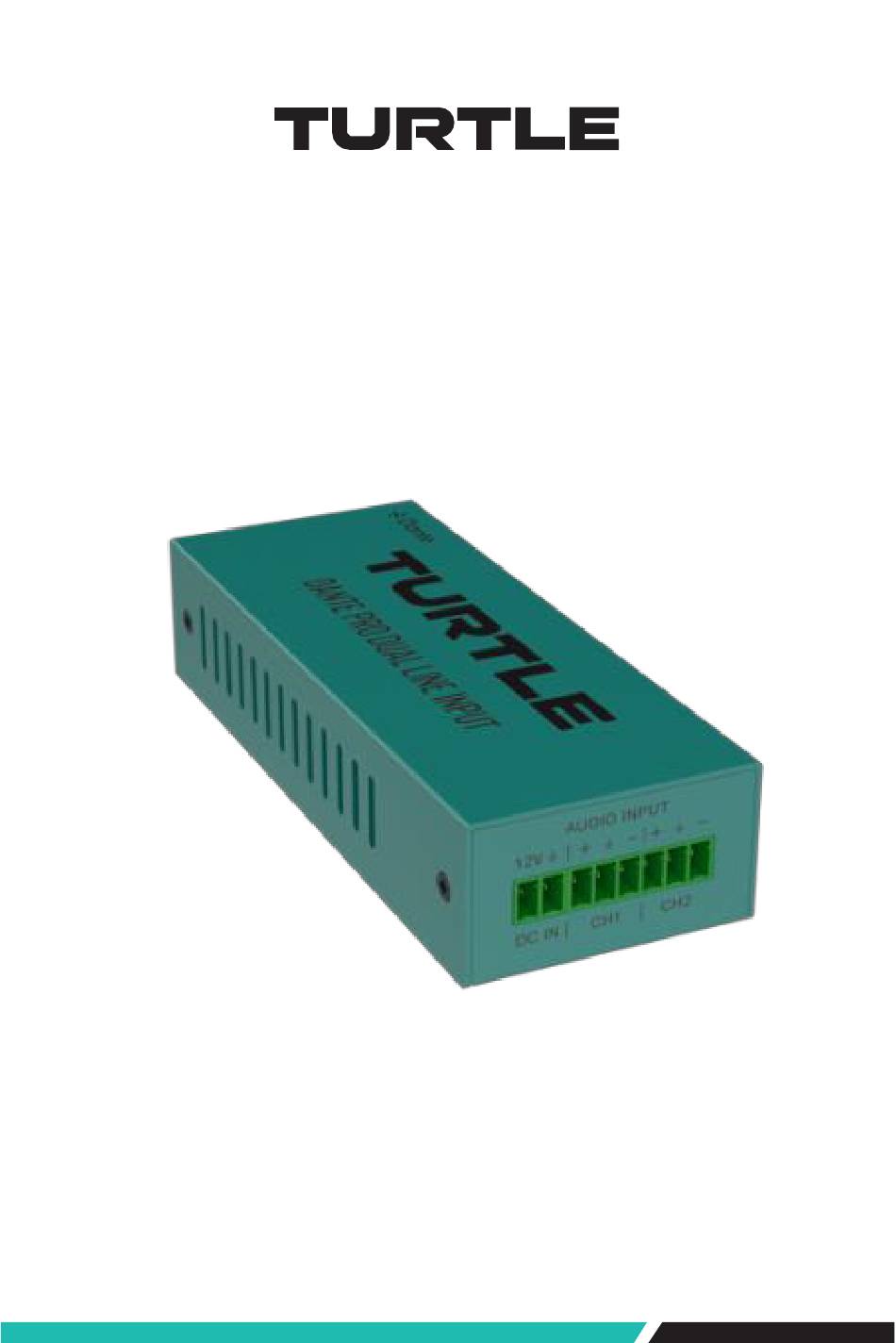

- Page 1 DANTE PRO DUAL LINE INPUT CONVERTER User Manual VER 1.0...
-
Page 2: Table Of Contents
TAV-D2LEN-PRO Dante Pro Dual Line Input Converter Thank you for purchasing TURTLE product For optimum performance and safety, please read these instructions carefully before connecting, operating or adjusting this product. Please keep this manual for future reference. Surge protection device recommended... -
Page 3: Introduction
Dante® digital audio. With 3-level sensitivity adjustment for analog outputs, you can tailor your sound with ease. The Dante Pro Dual Line INput is in a rugged metal chassis and can be powered PoE or 12V DC using the phoenix connectors. -
Page 4: Specifications
TAV-D2LEN-PRO Dante Pro Dual Line Input Converter 4. Specifications Technical Video Network 100M Bandwidth PCM 2.0 44.1kHz/48kHz/96kHz Audio Formats up to 24bit Transmission 100m (CAT6/6A) Distance Control Method Dante Controller Connection 1x PWR [2-pin phoenix, 3.81mm] Inputs 1x AUD [6-pin phoenix, 3.81mm]... -
Page 5: Operation Controls And Functions
TAV-D2LEN-PRO Dante Pro Dual Line Input Converter 5. Operation Controls and Functions Name Function Description DC 12V power input port. DC IN AUDIO 2 channel analog audio input INPUT ports, supporting balanced and (CH1/CH2) unbalanced audio. Dante digital audio output port. -
Page 6: Application Example
TAV-D2LEN-PRO Dante Pro Dual Line Input Converter 6. Application Example USB Audio Encoder/Decoder USB Audio Laptop Dante Audio 100/1000M Network Switch Dante Audio Encoder Audio L/R Audio Audio Decoder Dante Audio L/R Audio Speakers Trademarks Dante is registered trademark of Audinate Pty Ltd. All ®...
