Summary of Contents for Elation ARIA X2 IPH BRIDGE

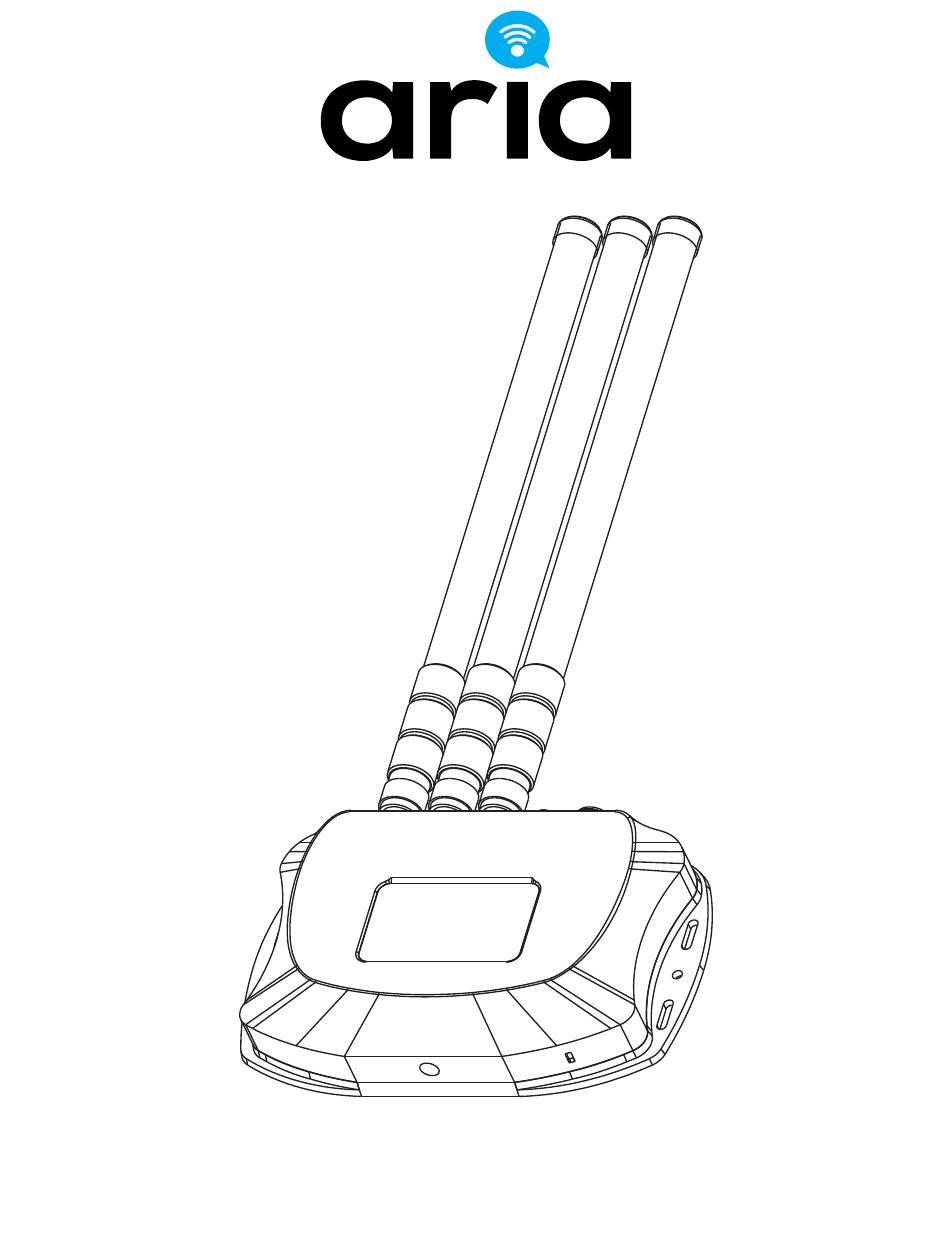

  • Page 1 ARIA X2 IPH BRIDGE User Manual...
  • Page 2 +31 45 546 85 66 | www.elationlighting.eu | info@elationlighting.eu Elation Professional Mexico | AV Santa Ana 30 | Parque Industrial Lerma, Lerma, Mexico 52000 +52 (728) 282-7070 D O C U M E N T V E R S I O N Due to additional product features and/or enhancements, an updated version of this document may be available online.

  • Page 3: Table Of Contents

    C O N T E N T S General Information | IP67 Rated Limited Warranty (USA Only) Safety Guidelines Overview Connections Installation Instructions Setup System Menu Frequency & Wireless Location Guidelines Firmware Update Maintenance Guidelines Torque Settings for Screws IP Test Parameters Specifications Dimensional Drawings...

  • Page 4: Box Contents

    • Antennas (x3) • Rail Track Brackets (x2) CUSTOMER SUPPORT Contact ELATION Service for any product related service and support needs. Also visit forums.elationlighting.com with questions, comments or suggestions. ELATION SERVICE USA - Monday - Friday 8:00am to 4:30pm PST 323-582-3322 | support@elationlighting.com...

  • Page 5: Limited Warranty (Usa Only)

    B. For warranty service, send the product only to the Elation Professional factory. All shipping charges must be pre-paid. If the requested repairs or service (including parts replacement) are within the terms of this warranty, Elation Professional will pay return shipping charges only to a designated point within the United States.

  • Page 6: Safety Guidelines

    This device is a sophisticated piece of electronic equipment. To guarantee a smooth operation, it is important to follow all instructions and guidelines in this manual. Elation Professional is not responsible for injury and/or damages resulting from the misuse of this device due to the disregard of the information printed in this manual.

  • Page 7: Overview

    O V E R V I E W M12 Mounting Device Hole Lock Mode Display Power Button Screen Button Aria X2 Indicator Indicator POWER ARIA X2 SM220 SM220 Indicator Indicator Enter Down Button Button Fuse Power T1.25A / Valve 250V Subgig Aria X2 Aria X2...

  • Page 8: Dmx Connections

    C O N N E C T I O N S AC CONNECTIONS This device is rated for 100-277V 50/60Hz, and accepts AC mains power within that range. Do not connect it to power outside this range. Note that the device uses a T1.25A/250V fuse. Damage resulting from incorrect connection is not covered under warranty.

  • Page 9: Installation Instructions

    CONSUMPTION OF OTHER MODEL DEVICES MAY EXCEED THE MAXIMUM POWER OUTPUT OF THIS DEVICE. CHECK SILK SCREEN FOR MAXIMUM AMPS. THE ARIA X2 IPH BRIDGE IS DESIGNED TO BE TRUSS-MOUNTED; HOWEVER, IT CAN BE USED STAND-ALONE, WHERE THE DEVICE MUST SIT ON A FIRM FLAT SURFACE.

  • Page 10: Wall Mount Installation

    I N S TA L L AT I O N G U I D E L I N E S WALL MOUNT INSTALLATION Thread the safety cable loop into the M12 mounting hole on the top of the device, as shown in the below left image.
  • Page 11 I N S TA L L AT I O N G U I D E L I N E S DIN RAIL ADAPTERS Secure two DIN Rail Adapters to the rear face of the X2 IPH Bridge, using two screws per adapter. Then, mount the X2 IPH Bridge by aligning the tabs of the DIN Rail Adapter with the slot of the DIN rail.

  • Page 12: Clamp Mounting

    I N S TA L L AT I O N G U I D E L I N E S CLAMP MOUNTING To suspend this device from a truss or other elevated installation, thread a mounting clamp of the appropriate weight rating into the M12 mounting hole on the top face of the device, then use the clamp to attach the device to the truss.

  • Page 13: Setup

    S E T U P CONNECTING DMX CONTROLLER TO ARIA X2 IPH BRIDGE This device has the flexibility to receive signal from the controller, and transmit the signal to other devices or additional bridges, via multiple protocols. Input and output signals may be received or transmitted via either of the Aria antennas, the SM220 antenna, or the physical DMX connection.

  • Page 14: System Menu

    S Y S T E M M E N U The Aria X2 Bridge features an LCD display screen with 4 control buttons, which can be used to easily adjust any device settings. Button functions and locations are as described below: •...
  • Page 15 S Y S T E M M E N U OPTIONS / VALUES (Default Settings in BOLD) MAIN MENU Aria Settings 2.4 GHz Frequency Sub Gig US Sub gig EU 2.4 GHz Ch 00 - 15 Sub Gig Ch 00 - 09 Mesh Enable On / Off Bluetooth...

  • Page 16: Frequency & Wireless Location Guidelines

    F R E Q U EN CY & W I R E LE S S L OCAT ION G UIDE L IN E S 2GHZ Versus Sub-Gig (GHz) Frequencies Sub-GHz frequencies offer greater resilience and range than higher frequencies, making them ideal for reliable communication over extended distances or in challenging environments.

  • Page 17: Firmware Update

    F I R M WA R E U P D AT E 1. First, turn on the fixture and ensure that Bluetooth is enabled. 2. Next, open the Aria X2 app on your phone and press the ‘Refresh’ button. The app will search for devices and display the current software version of the fixture and Aria module.

  • Page 18: Maintenance Guidelines

    M A I N T E N A N C E G U I D E L I N E S DISCONNECT POWER BEFORE PERFORMING ANY MAINTENANCE! FUSE REPLACEMENT Locate and remove the unit’s power cord. Once the cord has been removed, locate the fuse holder next to the power socket.

  • Page 19: Torque Settings For Screws

    T O R Q U E S E T T I N G S F O R S C R E W S IN ORDER TO MAINTAIN THE IP65 RATING ON THE LIGHTING FIXTURES, ALL SCREWS MUST BE TIGHTENED TO THE FOLLOWING TORQUE SPECIFICATION USING A TORQUE DRIVER. Refer to the table and diagram below for torque specifications.

  • Page 20: Ip Test Parameters

    I P T E S T PA R A M E T E R S Following any repair or maintenance procedure that requires disassembly of the fixture, use Elation’s IP Tester to confirm the IP integrity of the fixture. The air valve is located on the back panel next to the display screen, as shown in the diagram below.

  • Page 21: Specifications

    S P E C I F I C AT I O N S Features: Single DMX Universe 2.4 GHz Bands WiFi and Bluetooth 5.2 Configuration via App or Front panel Wireless to DMX or DMX to Wireless IP67 Housing Supported Protocols: DMX512 Proprietary 802.15.4 Aria X2 Mesh Protocol...

  • Page 22: Dimensional Drawings

    D I M E N S I O N A L D R AW I N G S Drawings not to scale 1.8 in 9.2 in (233.70mm) (46.00mm)
  • Page 23 This page intentionally left blank.
