Siemens RCR111ZB Manual
Siemens RCR111ZB Manual

Siemens RCR111ZB Manual

Connected home receiver

Advertisement

Quick Links

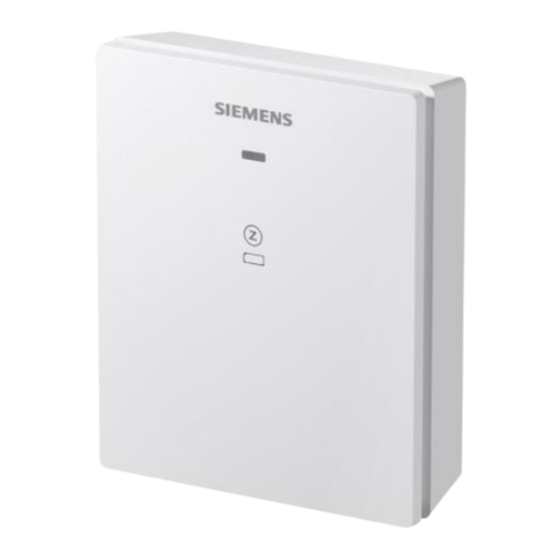

Connected Home Receiver
RCR111ZB
A6V16302437_en--_a
2024-12-15
For heating systems
Operating voltage AC 230 V
Communicates with Connected Home Hub via Zigbee network
Controls boiler via OpenTherm
Collects and processes heating demands of all rooms via thermostats and/or
actuators, and send control signals to OpenTherm
temperature control of each room, and for control of domestic hot water
Auto adaptation based on different boiler types: Modulating control or On/Off
control
Domestic hot water function
Frost protection when all thermostats and wireless room actuators (WRAs) are in
protection (Off) mode
Adjustable commissioning and control parameters via mobile application
LED indication of operating state
Firmware upgrade over the air via Zigbee
®
®
boiler for demand-based
Siemens AG
Smart Infrastructure

Advertisement

loading
Need help?

Need help?

Do you have a question about the RCR111ZB and is the answer not in the manual?

Questions and answers

Summary of Contents for Siemens RCR111ZB

  • Page 1 Connected Home Receiver RCR111ZB For heating systems ● Operating voltage AC 230 V ● Communicates with Connected Home Hub via Zigbee network ● ® Controls boiler via OpenTherm ● Collects and processes heating demands of all rooms via thermostats and/or actuators, and send control signals to OpenTherm ®...
  • Page 2 The RCR111ZB is part of Siemens Connected Home ecosystem. Typical application: ● Residential apartments ● Single family homes To control the following equipment: ● ® OpenTherm boilers Functions ● Network joining initiator ● Configurable function via mobile application "Connected Home" (downloadable from ®...
  • Page 3 LED flashes red rapidly rather than orange rapidly. Type summary Type Stock number Description RCR111ZB S55772-T119 Connected Home Receiver Ordering When ordering, indicate product number, stock number and description. Inbox item...
  • Page 4 RCM declaration A5W02648035A Product environmental declaration A5W90009801 Related documents such as environmental declarations, CE declarations, and so on, can be downloaded at: http://siemens.com/bt/download. Notes Safety CAUTION National safety regulations Failure to comply with national safety regulations may result in personal injury and property damage.
  • Page 5 For additional details, refer to Siemens information on disposal. Warranty Technical data on specific applications are valid only together with Siemens products listed under Equipment combinations [▶ 4]. Siemens rejects any and all warranties in the event that third-party products are used.
  • Page 6 Degree of protection of housing as per EN 60529 IP30 Classification as per EN 60730 Function of automatic control devices Type 1 Operation altitude < 3000 m Degree of pollution Overvoltage category Climatic ambient conditions Siemens A6V16302437_en--_a Smart Infrastructure 2024-12-15...
  • Page 7: Connection Diagrams

    The product environmental declaration A5W90009801* contains data on environmentally compatible product design and assessments (RoHS compliance, materials composition, packaging, environmental benefit, disposal). * The documents can be downloaded from http://siemens.com/bt/download. General Receiver with box, user document and accessory 222 g Receiver...
  • Page 8 Application examples ® OpenTherm boiler, multi-zone control ® OpenTherm boiler, reference room control Connected Home Receiver RCR111ZB Connected Home Hub GTW100ZB Connected Home Thermostat wireless ® OpenTherm connection ® OpenTherm boiler Circulating pump R1, Rn Individual room/zone Connected Home wireless room actuator...
  • Page 9 Dimensions Regulatory compliance information Radio equipment directive The equipment uses harmonized frequency in Europe and complies with Radio Equipment Directive 2014/53/EU (formerly 1999/5/EC). Siemens A6V16302437_en--_a Smart Infrastructure 2024-12-15...
  • Page 10 Issued by © Siemens 2024 Siemens Switzerland Ltd Technical specifications and availability subject to change without notice. Smart Infrastructure Global Headquarters Theilerstrasse 1a CH-6300 Zug +41 58 724 2424 www.siemens.com/buildingtechnologies Document ID A6V16302437_en--_a Edition 2024-12-15...
