Summary of Contents for Channel Safety Systems ORB-R-RS4-OLED ORB-R-RS8-OLED

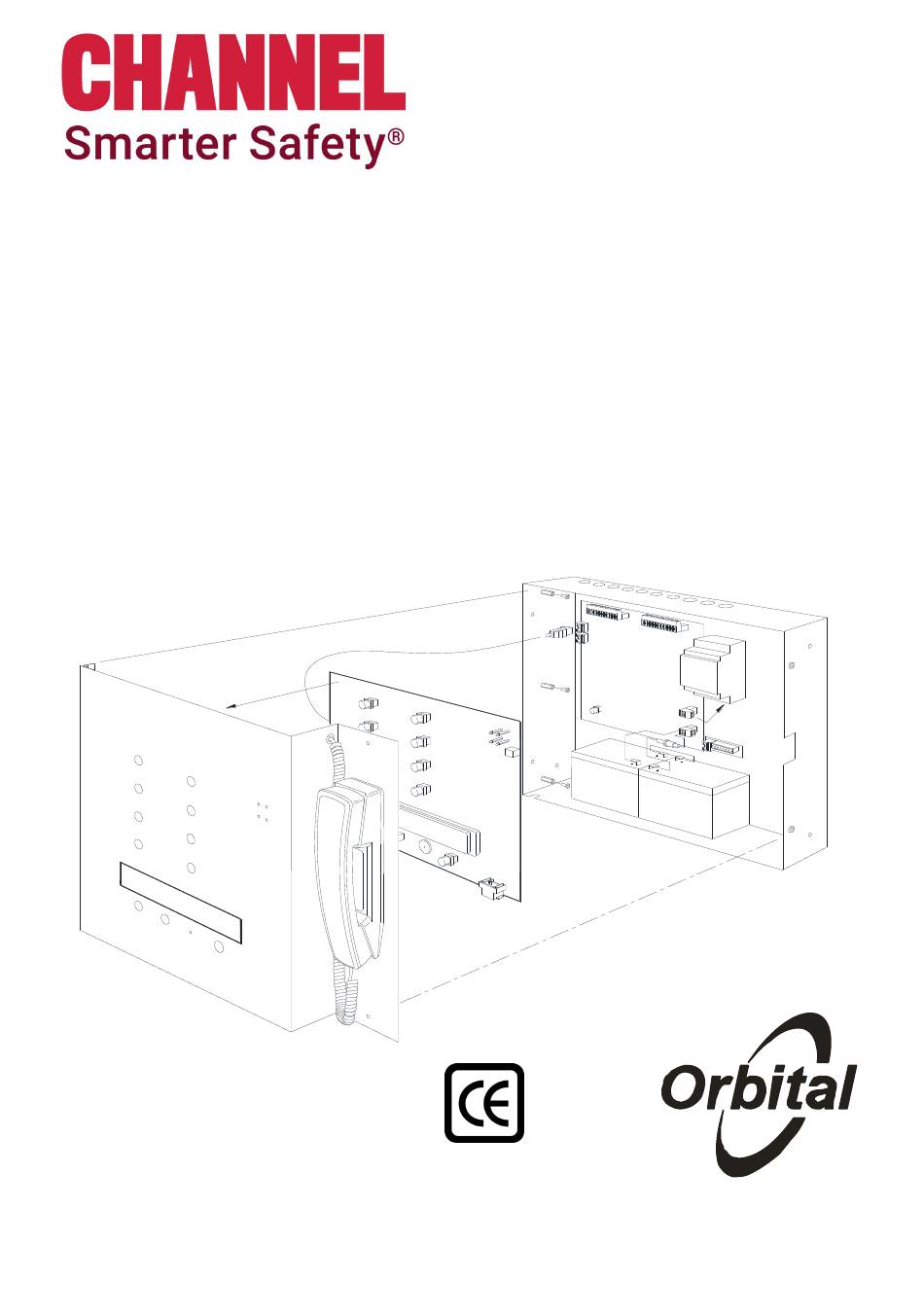

- Page 1 INS 1047 v1.0 03/25 ORB-R-RS4-OLED ORB-R-RS8-OLED Disabled Refuge Emergency Voice Communication System ORB-R-RS4/8/OLED — Commissioning / User Manual. Revision 5...
- Page 2 ORB-R-RS8-OLED — Commissioning / User Manual Safety Information Observe all safety information on the product labels. ESD Precautions This product contains static-sensitive devices. Observe ESD precautions when working on the equipment with the cover / door removed. Copyright @2018 Cameo Systems Limited Cameo Systems Limited 29 Haviland Road, Ferndown Industial Estate,...
-
Page 3: Table Of Contents
ORB-R-RS8-OLED — Commissioning / User Manual Contents 1 Introduction..............................4 1.1 Terms and definitions..........................4 2 Installation..............................5 2.1 Installation Connect Field Cabling......................6 2.2 Installation Switch F..........................6 2.3 Installation Connector J..........................6 2.4 Installation Connector K..........................6 2.5 Flush mounting bezel assembly........................ 7 2.6 Surface mounting sleeve assembly...................... -
Page 4: Introduction
ORB-R-RS8-OLED — Commissioning Manual 1. Introduction This commissioning manual provides general guidance for the operation, configuration, commissioning, maintenance, and fault finding of the ORB-L-RS4 (RS8) (RS16) -OLED. The disabled refuge system has been manufactured to comply with BS5839 Pt9. Disabled Toilet Alarm has been manufactured to comply with BS8300. -
Page 5: Installation
ORB-R-RS8-OLED — Commissioning Manual 2. Installation : (refer to Dwg. C51313/E) Install central enclosure, with cable entry gland at top, at a height of approx. 1.5 metres above floor height. Ensure fixings can support a load of 20 Kg. The field cabling described below must be installed via top entry to the enclosure. The system batteries will sit on the lower edge of the enclosure, and the entire space below the main PCB assembly must be kept clear to accommodate these items. -
Page 6: Installation Connect Field Cabling
ORB-R-RS8-OLED — Commissioning Manual 2. Installation Cont… (refer to Dwg. C51313/E) The following connections are optional, and are fitted only when the system specification requires these functions E – Anti-Tamper (Fire inhibit) Short these terminals with a volt free closing contact (rated 50mA or higher) to enable the system ‘Anti Tamper’... -
Page 7: Flush Mounting Bezel Assembly
ORB-R-RS8-OLED — Commissioning Manual 2 Installation Cont... 2.5 Flush mounting bezel assembly 2.6 Surface mounting sleeve assembly... -
Page 8: Commissioning Procedure
ORB-R-RS8-OLED — Commissioning Manual 3. Commissioning procedure (refer to Dwg. C51313/C) 3.1 Remote Outstation Addressing Remote outstation addressing: CS965. Each outstation requires an address which relates to the switch position on the master control panel. SW1 & SW2 are located on CS965 as below. The remote outstation address is SW1 Tens and SW2 Units Examples Switch... -
Page 9: Batteries
ORB-R-RS8-OLED — Commissioning Manual 3. Commissioning procedure (refer to Dwg. C51313/E) 3.2 Batteries Fit battery loom as indicated on this drawing. C51313/E CHECK RED LEAD IS CONNECTED TO THE RED (+) BATTERY TERMINAL. CONNECTING THE BATTERY LEAD WITH REVERSE POLARITY WILL DAMAGE THE EQUIPMENT. -
Page 10: Remote Outstation Radial Wiring Tests
ORB-R-RS8-OLED — Commissioning Manual 3. Commissioning procedure (refer to Dwg. C51313/E) Remote outstation radial wiring tests The following measurements are required before applying A.C power to the system: BN (Brown) + : PWR (+ 24VDC) BU (Blue) - : DAT (Data / Line) Screen SCN : Cable screen (connected to system earth and COM internally) 3.4 Apply A.C. -
Page 11: Setup
ORB-R-RS8-OLED — Commissioning Manual 3. Commissioning procedure (refer to Dwg. C51313/E) 3.5 Setup Press and hold the setup button (F) on CS1007 until the setup switch illuminates. This can take up to ’10’ seconds. The front control panel will sound three times to signify that the sys- tem is in a setup mode. -
Page 12: Setup Lcd
ORB-R-RS8-OLED — Commissioning Manual 3. Commissioning procedure (refer to Dwg. C51313/E) 3.6 Setup LCD Press and hold the setup button (F) on CS1007 until the setup switch illuminates. This can take up to ’10’ seconds. The front control panel will sound three times to signify that the system is in a setup mode. - Page 13 ORB-R-RS8-OLED — Commissioning Manual 3. Commissioning procedure (refer to Dwg. C51313/E) 3.6 Setup LCD DISABLED REFUGE ZONE [ 01 ] selected DISABLED REFUGE TEXT EDIT ZONE [ 01 ] The first letter is selected [ ] and indicated by the blinking highlighting cursor. Pressing the left or right button allows the letter to be changed in the cursor.
-
Page 14: Setup Lcd Toilet Alarm
ORB-R-RS8-OLED — Commissioning Manual 3. Commissioning procedure (refer to Dwg. C51313/E) 3.7. Setup LCD Toilet Alarm To text edit the toilet alarm zone text the same process is required as the disabled refuge before. Press and hold the setup button (F) on CS1007 until the setup switch illuminates. This can take up to ’10’... -
Page 15: Setup Lcd Erase All
ORB-R-RS8-OLED — Commissioning Manual 3. Commissioning procedure (refer to Dwg. C51313/E) 3.7.2 Setup LCD Erase All Press and hold the setup button (F) on CS1007 until the setup switch illuminates. This can take up to ’10’ seconds. The front control panel will sound three times to signify that the system is in a setup mode. -
Page 16: Setup Toilet Alarm Tab And Tai Units
ORB-R-RS8-OLED — Commissioning Manual 3. Commissioning procedure (refer to Dwg. C51313/E) 3.8 Setup Toilet Alarm TAB and TAI units. The (TAB) Toilet alarm input card provides radial spur connections for the Hark toilet alarm kits. In most cases the toilet alarm kit is wired to a local refuge point. However there are times where the toilet alarm ‘2’... -
Page 17: System Test
ORB-R-RS8-OLED — Commissioning Manual 3. Commissioning procedure (refer to Dwg. C51313/E) 3.10 System Test Once the installation and commissioning procedures are complete, test for correct system operation, and fault reporting functions. Test all locations for correct call in / call out functions, by following the user manual instructions listed on page 20 Section 4. -
Page 18: Fault Indications
ORB-R-RS8-OLED — Commissioning Manual 3. Commissioning procedure 3.11 Fault Indications (refer to Dwg. C51313/E) The LED function references on Dwg. C51313/E, and on PCB CS1007, identify the function of all fault indications within the central enclosure. Note that any fault condition will cause the front panel fault Light Emitting Diodes (LED’s) to indicate with a slow flashing pattern, and will activate the audible fault sounder as a continuous tone. -
Page 20: User Manual
ORB-R-RS8-OLED — User Manual User Manual 4.1 User Master Handset to Make a Call The Central Control Panel consists of a single master telephone handset, and an array of momentary illuminated switches, one of which is assigned to each remote outstation during system commissioning. -
Page 21: User Master Handset To Receive A Call
ORB-R-RS8-OLED — User Manual User Manual 4.2 User Master Handset to Receive a Call The Central Control Panel consists of a single master telephone handset, and an array of momentary illuminated switches, one of which is assigned to each remote outstation during system commissioning. -
Page 22: User Master Handset To Receive Multiple Calls
ORB-R-RS8-OLED — User Manual User Manual 4.3 User Master Handset to Receive Multiple Calls In the event that the system is already in use, and a second remote outstation calls in, then the calling remote outstation will continue to hear the double pulse call tone. -
Page 23: User Remote Outstation Call - To Make A Call To Central Control
ORB-R-RS8-OLED — User Manual User Manual 4.4 User Remote Outstation Call - To Make a Call to Central Control Press the CALL button on the front of remote outstation. The ‘CALL REGISTERED’ LED will light, and a standard ‘double pulse’ call tone will be heard from the panel loudspeaker. -
Page 24: User Master Handset To Receive A Toilet Alarm
ORB-R-RS8-OLED — User Manual User Manual 4.6 User Master Handset to Receive a Toilet Alarm When a toilet alarm is present on the system from a pull cord being pulled. The sounder will sound to draw attention to the master panel. The lamp test button can be pressed to mute the sounder whilst investigating the alarm.
