- Page 1 Version-E25-04-10 Radio System TED2 Manual...
- Page 2 Important Information General Before using your ALGE-TIMING device read the complete manual carefully. It is part of the device and contains important information about installation, safety and its intended use. This manual cannot cover all conceivable applications. For further information or in case of problems that are mentioned not at all or not sufficiently detailed, please contact your ALGE-TIMING representative.
-
Page 3: Declaration Of Conformity
TED2 Declaration of Conformity We hereby declare that the following product complies with the below stated standards. All com- ponents used by us are CE certified by their producer and are not modified by ALGE-TIMING GmbH. ALGE-TIMING GmbH Rotkreuzstraße 39... - Page 4 TED2 Declaration of Conformity We hereby declare that the following product complies with the below stated standards. All com- ponents used by us are CE certified by their producer and are not modified by ALGE-TIMING GmbH. ALGE-TIMING GmbH Rotkreuzstraße 39...
-
Page 5: Table Of Contents
Manual TED2 Table of Contents Introduction ........................6 Device Description ......................6 Data transmission ......................7 2.1.1 Transmission of times .......................... 7 2.1.2 Example Schematics ..........................8 2.1.3 Transmission of RS232 Data ......................... 9 Display ..........................9 2.2.1 Status Bar ............................10 2.2.2... -
Page 6: Introduction

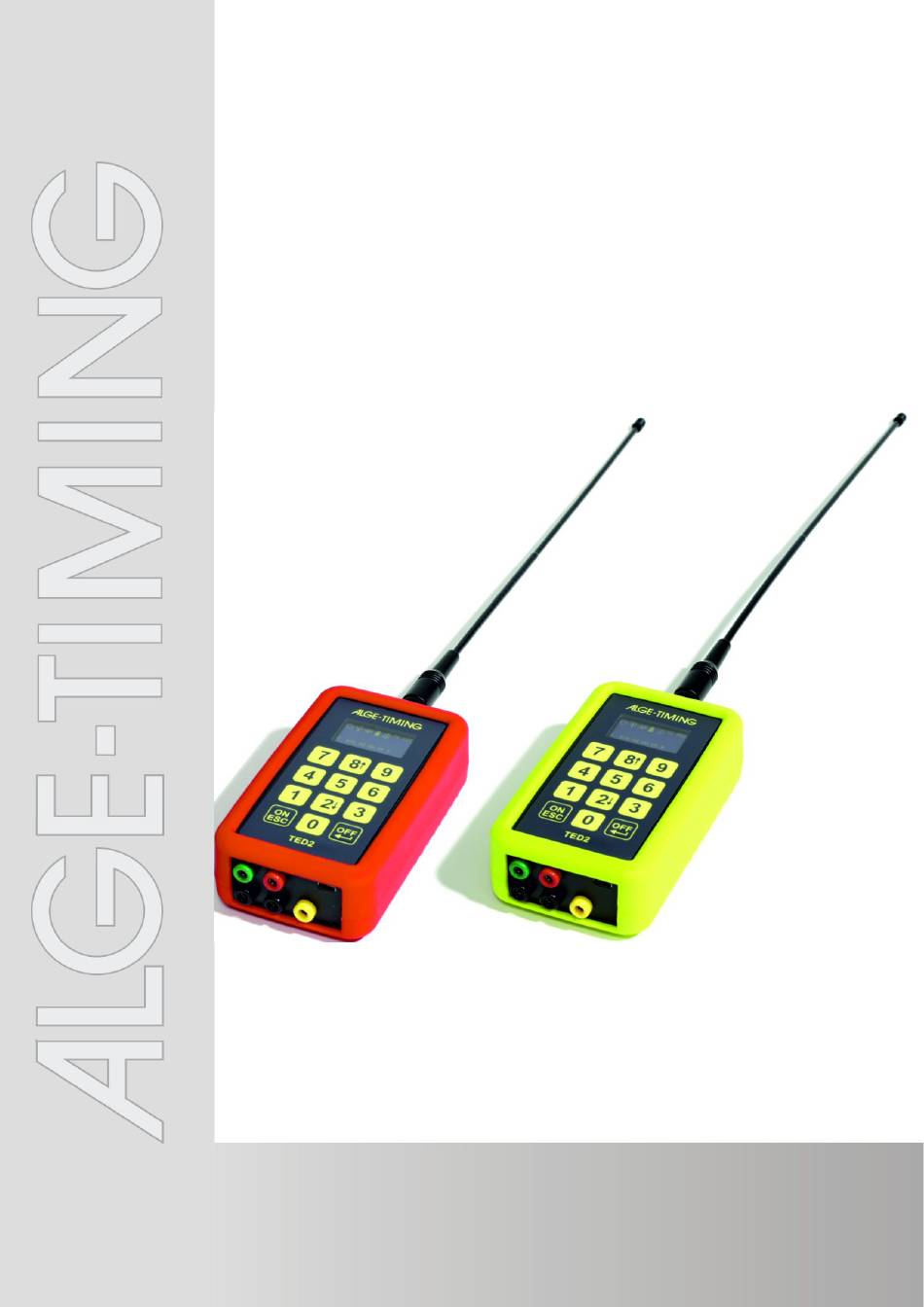

TED2 Introduction The TED2 is a timing device with integrated a long-range radio system in the 433MHz ISM band. Time measurement data or large display data can be transmitted over distances up to 4.5 km. The TED2 radio system is equipped with 2 timing channels and an RS232 interface for data transmission. -
Page 7: Data Transmission
If a Timy3 is connected to cable 319-03 in the Stopwatch program, the start numbers are also passed on. This means that if a start number is entered in TED2, it is also transferred to the Timy when an impulse is received. Otherwise, the start number set in the Timy is used. -
Page 8: Example Schematics
Manual TED2 start number or whether the user has actually confirmed it. Unconfirmed start numbers are marked as “X” (eXternal) Example Schematics: - 8 -... -
Page 9: Transmission Of Rs232 Data
The data interface is an input for the transmitter and an output for the receiver. Display The OLED display of the TED2 has a resolution of 128 x 64. The display is switched off after 5 minutes without activity. Any button or a timing pulse reactivates the display. -
Page 10: Status Bar
TED2-RX: field strength – moderate reception TED2-RX: field strength – very good reception TED2 is connected with an USB-Host (e.g. with Printer) TED2 is connected with an USB-Device (e.g. PC or Power supply) TED2 has no USB connection TED2 Battery is full... -
Page 11: Time
On the bottom part of the screen, you can see the running time. On the very bottom of the screen, you can find the latest timing pulse (channel, bib and time). Keypad The TED2 has a splash-proof foil keyboard with 12 buttons. - 11 -... -
Page 12: Connections
MT1 driver (same driver for TED2) to show the correct name in the device manager, but it is not necessary. This virtual COM port uses the same data protocol as the Timy series and TDC 800x series. No data connection to the PC is shown with a crossed out USB symbol. -
Page 13: Operation
Manual TED2 Operation In the main menu you can enter the next bib and confirm with Menu Open the selection menu with the ESC button. Press ESC once again for returning to the main screen. Use the arrow buttons (‘2’ for scroll up, ‘8’ for scroll down) to choose the menu item. -
Page 14: Memo
Manual TED2 3.1.3 Memo With the “memo” menu you can switch to memo-mode. This mode is used if it is not clear which competitor is next, e.g. at the finish area when you cannot see the competitor come closer. The bib number at the first time blinks. You can confirm the given bib with... -
Page 15: General
This function is only active if the TED2 has already been synchronized. 3.1.5.5 Clear memory <Clear Mem> The TED2 automatically saves all timing impulses. When switched off, the times are stored in flash memory. When switched on, these times are automatically restored. When the memory is full, the oldest pulses are overwritten. -
Page 16: Gps Reception
Manual TED2 3.1.5.6 GPS reception <GPS> If there is no GPS available: Below picture shows the normal operation with more than 3 satel- lites in view. In this example there are 7 satellites in use and 26 satellites in view. You also can see the altitude and GPS signal strength of the 7 best satellites which are used. -
Page 17: Time Zone
Manual TED2 3.1.6.2 Time Zone The UTC (Greenwich) time is received via the GPS. You can set the time zone here so that your local time zone and, if applicable, daylight saving time are taken into account. By default, CET = UTC+1 is set. -
Page 18: Field Test
This menu is only available on the receiver. GPS and Synchronization After switching on the TED2, the internal GPS receiver is activated. If a valid GPS signal is received, the TED2 will be synchronized by the GPS. For a valid GPS signal you must receive at least 4 GPS satellites. -
Page 19: Gps-Display
As soon as the TED2 receives a 3D-fix, it is able to auto trim the internal quartz. The longer the TED2 receives a GPS signal the more accurate it gets. That eliminates influences from temper- ature and aging. -
Page 20: Software
If you want to use the TED2 directly with the Time.NET2: Please set "TED2" or "Timy Backup" as the device under "Time measurement (RS23)" if you want to use the STN* feature. The STN* feature recognizes whether a start number is consec- utive or has been entered manually. -
Page 21: Technical Data
Charging time: approx. 4 hours at +25 °C Operating time: TED2-TX: 24 h at 20 °C and with one pulse per minute TED2-RX: 12 h at 20 °C and with one pulse per minute Charging time: approx. 2.5 hours at +25 °C... - Page 22 Manual TED2 - 22 -...
- Page 23 Manual TED2 - 23 -...
- Page 24 Manual TED2 Subject to changes and misprints Copyright by ALGE-TIMING GmbH Rotkreuzstraße. 39 6890 Lustenau / Austria www.alge-timing.com - 24 -...
