DESCRIP TION
SRT Processor; IP/ASI to IP/ASI + SRT (plus receive)
All Righ ts Reserv ed. Specifications s ubj ect to chang e without not ice.
All t radem arks are p roperty of their respect ive owner s.
USER MANUAL
VIDEO DELIVERY
D /N : UMD - F L EX 6 5 8 3
Advertisement
Table of Contents
Related Manuals for Blonder tongue FLEX SRT
Summary of Contents for Blonder tongue FLEX SRT
- Page 1 STOCK # MODEL NAME DESCRIP TION 6583 FLEX SRT SRT Processor; IP/ASI to IP/ASI + SRT (plus receive) All Righ ts Reserv ed. Specifications s ubj ect to chang e without not ice. Re v : 02 282 5 D /N : UMD - F L EX 6 5 8 3 All t radem arks are p roperty of their respect ive owner s.
- Page 2 RETURNING PRODUCT FOR REPAIR (OR CREDIT) A Return Material Authorization (RMA) Number is required on all products returned to Blonder Tongue, regardless if the product is being returned for repair or credit. Before returning product, please review our...
-
Page 3: Table Of Contents
FLEX SRT User Manual TABLE OF CONTENTS SECTION 1 – GENERAL & SAFETY INSTRUCTIONS ............4 SECTION 2 – PRODUCT SUMMARY ..................5 2.1 PRODUCT APPLICATION & FEATURES ......................5 2.2 PRODUCT DESCRIPTION ..........................6 2.3 OPERATIONAL MODE SPECIFICATIONS ......................7 2.4 PRODUCT SPECIFICATIONS ..........................8 SECTION 3 –... -
Page 4: Section 1 - General & Safety Instructions
å Do not use accessories or attachments not recommended by Blonder Tongue, å Do not overload wall outlets or extension cords, as this can result in a risk of fire as they may cause hazards, and will void the warranty. -
Page 5: Section 2 - Product Summary
2.1 PRODUCT APPLICATION & FEATURES APPLICATION The FLEX SRT is designed to provide a bridge between existing transport stream-based systems and SRT for Content Providers to distribute high-quality live linear encoded programs to anywhere in the world with an Internet connection. -
Page 6: Product Description

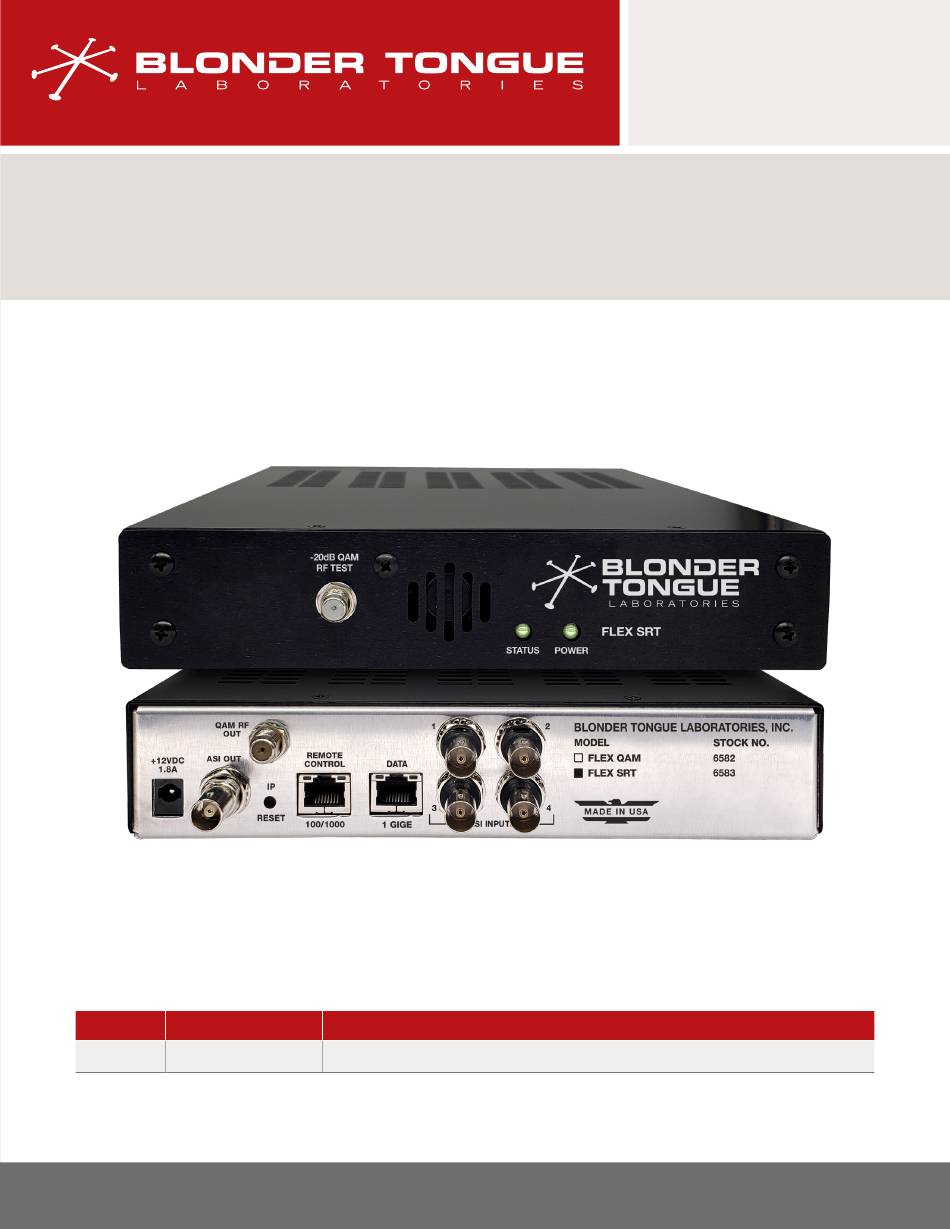

6 FLEX SRT User Manual 2.2 PRODUCT DESCRIPTION FRONT PANEL -20dB QAM RF Test: “F” female connector for QAM RF output signal, 20dB lower than the actual QAM RF output. Used for test purposes, without taking the unit out of service. -
Page 7: Operational Mode Specifications
DATA 1 GIGE: RJ45 connector for 1000Base-T Ethernet (GIGE) interface for IP data (in/out). ASI INPUT: BNC connectors 1 to 4 for unencrypted ASI inputs. 2.3 OPERATIONAL MODE SPECIFICATIONS FLEX SRT: TRANSMIT MODE FLEX SRT: RECEIVE MODE IP I/O PORTS... -
Page 8: Product Specifications
8 FLEX SRT User Manual 2.4 PRODUCT SPECIFICATIONS OUTPUT INPUT Channel Bandwidth 24 MHz (4x Adjacent, 6 MHz) RF Level 40 dBmV (4 Ch. Combined) Connector 1x RJ45 (Rear Panel) RF Level Accuracy ± 1 dB Standard 1000Base-T Ethernet (GigE) Frequency Tolerance ±... -
Page 9: Section 3 - Installation & Power-Up
▶ 3.2 INSTALLATION AND POWER-UP The FLEX SRT is designed for a desk/table top installation. An optional rack panel allows two units to be mounted in 1RU. If used, the unit(s) can then be installed into a standard 19-inch (483 mm) rack (EIA 310-D, IEC 60297, and DIN 41494 SC48D). Adequate ventilation is very important for unit installations. -
Page 10: Section 4 - Connecting To A Pc/Laptop
10 FLEX SRT User Manual SECTION 4 – CONNECTING TO A PC/LAPTOP 4.1 ETHERNET ACCESS Local or remote communication with the unit is only possible through a GUI-based menu via any standard web browser. Before you can communicate with the unit, you must configure your computer's IP address to be in the same subnet as the units default IP address. - Page 11 FLEX SRT User Manual 4.2 ACCESSING THE GATEWAY VIA THE WEB BROWSER (CONTINUED) Monitoring and configuration of the unit is achieved via a series of web pages as described in the Sections below. The following read-only information is displayed in a “Page Header” at the top of each web page:...
-
Page 12: Section 5 - Basic Configuration
12 FLEX SRT User Manual SECTION 5 – BASIC CONFIGURATION 5.1 “NETWORK” TAB The “Network” (Figure 5.1) tab is a “read and write” screen. The general ethernet connection and user-defined identification data for the system can be configured here. Figure 5.1 - “Network” Configuration - Full View... - Page 13 FLEX SRT User Manual 5.1 “NETWORK” TAB (CONTINUED) MAC Address: the Media Access Control (MAC) Address is a read-only field that serves as a unique identifer assigned to the network. This page displays the MAC Addresses for both Remote Control port as well as the Data port.
-
Page 14: Admin" Tab
14 FLEX SRT User Manual 5.2 “ADMIN” TAB When logged in as admin (and not guest), the “Admin” screen (Figure 5.2) appears as a “read and write” screen where the following parameters are displayed or can be configured: Figure 5.2 - “Admin” Configuration - Full View... - Page 15 FLEX SRT User Manual 5.2 “ADMIN” TAB (CONTINUED) Unit Information: indicates the read-only information assigned to the unit and its firmware/hardware versions. See Network Tab (Section 5.1) for more information. MAC Address - Remote Control FPGA Version Serial Number ▶ ▶ ▶...
- Page 16 16 FLEX SRT User Manual 5.2 “ADMIN” TAB (CONTINUED) System IP Settings: displayed as read-only, but can be configured via the “Network” tab (Section 5.1). The settings shown are as follows: Remote Control Port: IP Address, Subnet Mask, Default Gateway, and DNS.
-
Page 17: Time" Tab
FLEX SRT User Manual 5.3 “TIME” TAB The “Time” (Figure 5.3) tab is a “read and write” screen. Time settings for the system are configured here. Figure 5.3 - “Time” Configuration - Full View The “Time” screen allows the user to set various time-related parameters, including the current date and time for the unit. -
Page 18: Event Log" Screen
18 FLEX SRT User Manual 5.4 “EVENT LOG” SCREEN The “Event Log” screen (Figure 5.4) is a “read and write” screen which displays system event log messages. The following is a description of the changeable parameters for this screen as well as a description of the message filter types. -
Page 19: Troubleshooting
FLEX SRT User Manual 5.5 TROUBLESHOOTING For any additional technical support issues, please send more information to us about your issue via our website www.blondertongue.com/support/ or call us toll-free at 1-800-523-6049 between the hours of 8:00 AM and 5:00 PM (EST, UTC -5). -
Page 20: Section 6 - Configuring In Srt Transmit Mode
20 FLEX SRT User Manual SECTION 6 – CONFIGURING IN SRT TRANSMIT MODE 6.1 SRT TRANSMIT: “MAIN” > “STATUS” TAB “Main” > “Status” (Figures 6.1a and 6.1b) is a “read-only” screen which displays the general health of the input and output. The information is provided as a quick way to monitor the unit or assist with troubleshooting issues that may arise. - Page 21 FLEX SRT User Manual 6.1 SRT TRANSMIT: “MAIN” > “STATUS” TAB (CONTINUED) Figure 6.1b - “Main” » “Status” - Input Monitor (SRT Transmit Mode) INPUT MONITOR Input ID: Input transport stream ID number. Interface: indicates the configuration of up to four input transport streams.
-
Page 22: Srt Transmit: "Main" > "Input" Tab
22 FLEX SRT User Manual 6.2 SRT TRANSMIT: “MAIN” > “INPUT” TAB “Main” > “Input” (Figure 6.2) is a “read-and-write” screen which allows for configuration of the input. Figure 6.2 - “Main” » “Input” - Input Configuration Input: Input transport stream number. -
Page 23: Srt Transmit: "Main" > "Ts Map" Tab
FLEX SRT User Manual 6.3 SRT TRANSMIT: “MAIN” > “TS MAP” TAB “Main” > “TS Map” (Figure 6.3) is a “read-and-write” screen which allows for configuration of the TS Map. Figure 6.3 - “Main” » “TS Map” Selection Control (Add): select the desired programs from Input TS’s under the green header for each output TS (TSO#) using the “Selection Control”... -
Page 24: Srt Transmit: "Main" > "Ts Config" Tab
24 FLEX SRT User Manual 6.4 SRT TRANSMIT: “MAIN” > “TS CONFIG” TAB “Main” > “TS Config” (Figures 6.4a and 6.4b) is a “read-and-write” screen which allows for TS Configuration. Figure 6.4a - “Main” » “TS Config” - General TS Configuration In the section entitled “General TS Configuration”, the user can select and configure the following parameters of... - Page 25 FLEX SRT User Manual 6.4 SRT TRANSMIT: “MAIN” > “TS CONFIG” TAB (CONTINUED) Modulation Mode: user can select the modulation mode for the MPEG TS Table. Options are: Reserved, Analog, QAM64, QAM256, 8-VSB, and 16-VSB. Out of Band: an Out of Band (OOB) is a channel which is the combination of the forward and reverse OOB channels.
-
Page 26: Srt Transmit: "Main" > "Output" Tab
26 FLEX SRT User Manual 6.5 SRT TRANSMIT: “MAIN” > “OUTPUT” TAB “Main” > “Output” (Figures 6.5a and 6.5b) is a “read-and-write” screen which allows for configuration of the Output. Figure 6.5a - “Main” » “Output” - SRT Output Configuration In the section entitled “TS”... - Page 27 FLEX SRT User Manual 6.5 SRT TRANSMIT: “MAIN” > “OUTPUT” TAB (CONTINUED) Figure 6.5b - “Main” » “Output” - Output Configuration In the section providing “Output Configuration” located below the previous section, the user can select and configure the following parameters: TS Mapping: Allows the user to select a transport stream and shows the status of the transport mapping to PID mapping.
-
Page 28: Section 7 - Configuring In Srt Receive Mode
28 FLEX SRT User Manual SECTION 7 – CONFIGURING IN SRT RECEIVE MODE 7.1 SRT RECEIVE: “MAIN” > “STATUS” TAB “Main” > “Status” (Figures 7.1) is “read-only” and displays the general health of the input and output. The information is provided as a quick way to monitor the unit or assist with troubleshooting issues that may arise. -
Page 29: Srt Receive: "Main" > "Input" Tab
FLEX SRT User Manual 7.2 SRT RECEIVE: “MAIN” > “INPUT” TAB “Main” > “Input” (Figures 7.2) is a “read-and-write” screen which allows for configuration of the SRT input. Figure 7.2 - “Main” » “Input” - SRT Input Configuration (SRT Receive Mode) Input: Input transport stream number. -
Page 30: Srt Receive: "Main" > "Qam Config" Tab
30 FLEX SRT User Manual 7.3 SRT RECEIVE: “MAIN” > “QAM CONFIG” TAB “Main” > “QAM Config” (Figures 7.3) is a “read/write” screen allowing for configuration of the QAM Output. Figure 7.3 - “Main” » “QAM Config” - QAM Output Configuration (SRT Receive Mode) Output Channel/Frequency: user must assign a RF channel number to the RF QAM output of the Quad- QAM module (i.e. -
Page 31: Srt Receive: "Main" > "Output" Tab
FLEX SRT User Manual 7.4 SRT RECEIVE: “MAIN” > “OUTPUT” TAB “Main” > “Output” (Figures 7.4) is a “read-and-write” screen which allows for configuration of the unit Output. Figure 7.4 - “Main” » “Output” - Output Configuration (SRT Receive Mode) In the section entitled “TS”... - Page 32 32 FLEX SRT User Manual NOTES...
- Page 33 FLEX SRT User Manual NOTES...
- Page 34 34 FLEX SRT User Manual NOTES...
-
Page 35: Limited Warranty
LIMITED WARRANTY LIMITED WARRANTY Seller will at its sole option, either repair or replace (with a new or factory reconditioned product, as Seller may determine) any product manufactured or sold (or in the case of software, licensed) by Seller which is defective in materials or workmanship or fails to meet the applicable specifications that are in effect on the date of shipment or such other specifications as may have been expressly agreed upon in writing: (i) for a period of one (1) year (and for all BIDA products a period of eight (8) years) from the date of original purchase for all stock hardware products (ii) for a period of one (1) year from the date of original purchase (or such shorter period of time as may be set forth in the license agreement specific to the particular software being licensed from Seller) with respect to all software products licensed from... - Page 36 B L O N D E R T O N GU E L A B O R ATO R I E S One Jake Brown Road Old Bridge, NJ 08857 (800) 523-6049 S A L E S D E PA RT M E NT C US T O M E R S E RV I C E sales@blondertongue.com custsvc@blondertongue.com...
