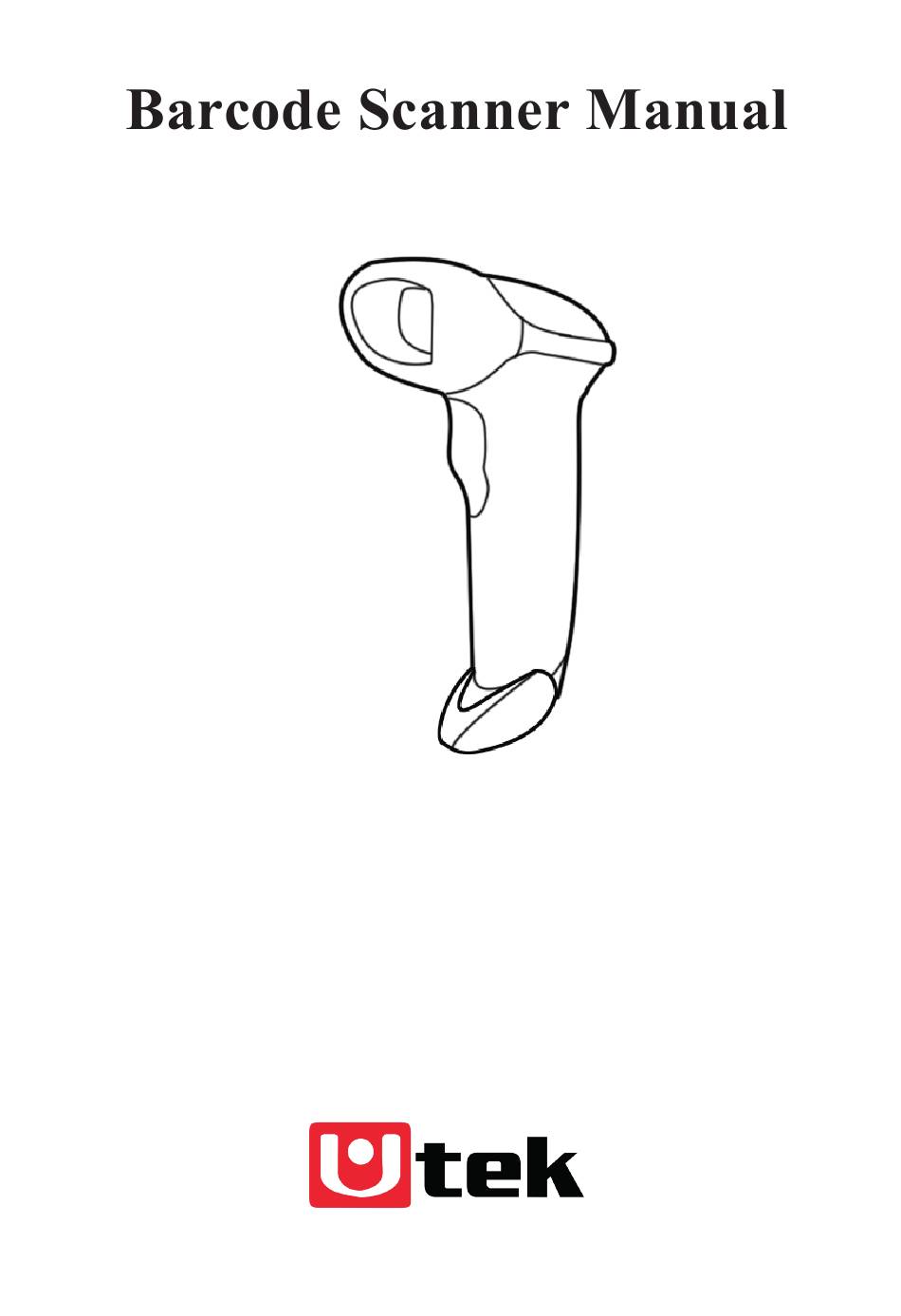

- Page 1 MOD. UT-BSCW2D V.10 E-mail: support@minj.cn Web www.minjcode.com...
- Page 2 TechnicalParameter Packing list Battery Charging Set Up Step FAQS Troubleshooting Optional Function settings Upload Mode Setting 1.1 Instant Upload Mode Setting 1.2 Storage Mode Setting Scanning Mode Setting 2.1 Manually Triggered Mode (Default) 2.2 Continuous Scan Mode 3. Duplicated Barcode Detection 4.
- Page 3 In order to correctly use the bar code scanner, please read the instruction carefully and do not arbitrarily scan the settings code otherwise some settings may not be available temporarily. Please keep this instruction for reference in the future. If you have any question or concern about the operation of the scanner, please contact us at following Email: support@minj.cn www.minjcode.c...
- Page 4 Mfr P/N Radio Frequency wireless Range Indoor 60m, outdoor 100m Memory 100000 barcodes Battery capacity 2000mAh Charging power DC 5V 400mA Standby current 18uA-25uA Working current 15-50mA Printing Contract >25% Light source LED Light LED life 12000 hours Button life 8000,000 times Resolution Scanning width...
- Page 5 ·Barcode scanner*1 ·USB Cable*1 ·Instruction Manual*1 · The scanner is powered by 2000mAh chargeable battery. Please ensure that the scanner has enough power before use. The red indicator light flashes three time, the buzzer would sounded 3 times, it indicates that the power is less than 30%. Please charge the scanner as soon as possible.
- Page 7 There are two separate barcodes together. It scanned the first 12 digits in the barcode but not the last five. Please scan the code" EAN13-5 enable extra code" on page 1 The scanner is set with prefix or suffix. Please scan the code " "...
- Page 8 Problem Possible Reason Solution Power on the scanner, the scanner has no reaction. The buzzer does not beep, the Connect the scanner to PC's USB blue light on the top of The battery run out. port for charging via USB cable scanner does not turn on, the red scanning laser does not show up.
- Page 9 Settings of the barcode scanner can be changed by scanning the setup barcodes included in this manual. Read barcodes and upload it straight to the file you have opened. ** To set the scanner to upload barcode instantly, scan the following code: Instant upload mode (1) The buzzer emits a sound like "DI"...
- Page 10 * *To convert scanner from "instant upload mode" to "storage mode", scan the following barcode "Storage mode ". Storage mode Put the cursor in the blank, and then scan code below to upload data. Upload data Put the cursor in the blank and then scan the code below to show total number of stored barcode.
- Page 11 Please make sure that the USB receiver is plugged. High speed Medium speed Low speed Slow speed User Press the trigger, the scanner will emit a red laser to read the barcode. When user release the trigger, the red laser will go off. ** Scan the following codes to set the scanner to Manual trigger mode .
- Page 12 If you want the scanner able to read the same barcode at a certain time interval, you can choose an interval of 0.5 second, 1 seconds ... or a longer period of time. For example, " Same Barcode Detection- 3 seconds" , scanner will read the same barcode again after every 3 second.
- Page 13 **Scan one of the following bar codes to adjust the scanner to turn on or off the boot prompt beep upon successful startup. Boot prompt buzzer-On Boot prompt buzzer-Off **Scan one of the following barcodes to adjust the LED/buzzer when the scanner is successfully read.
- Page 14 National Keyboard Setting (direct scan code setting) English Germany France Italian (Italy) Portugal Spain Finland Japanese Czech Republic Spanish (Mexico) Portuguese (Brazil) South Sami (Norway) Turkish Q keyboard %%NO_CASE %%TG_CASE %%BG_CASE Case no conversion Case Reverse All Capital %%SM_CASE All lowercase...
- Page 15 The scanner will be powered off if there is no operation on it over 5 minutes. Short press on the trigger can wake it up. Scan one of the following barcode to set the time interval, when it's idle exceeding the time interval you set, the scanner will be power off.
- Page 16 The code beginning with word "*" is the default settings. EAN13 Customers can scan the following setting codes to enable or disable the EAN13 bar code reading function. **Enable to scan EAN13 Disable to scan EAN13 Customers can scan the following setting codes to enable or disable the EAN13 extra-code forced output function.
- Page 17 Customers can scan the following setting codes to enable or disable the EAN8 bar code reading function. **Enable to scan EAN8 Disable to scan EAN8 Customers can scan the following setting codes to enable or disable the EAN8 extra-code forced output function. EAN8 force enable extra-code **EAN8 disable extra-code Customers can scan the following setting codes to enable or disable the configuration of EAN8.
- Page 18 Customers can scan the following setting codes to enable or disable the UPCA bar code reading function. **Enable to scan UPCA Disable to scan UPCA Customers can scan the following setting codes to enable or disable the UPCA extra-code forced output function. UPCA force enable extra-code **UPCA disable extra-code Customers can scan the following setting codes to enable or disable the configuration of UPCA...
- Page 19 Customers can scan the following setting codes to enable or disable the UPCA conversion EAN13. Enable UPCA conversion EAN13 **Disable UPCA conversion EAN13 Customers can scan the following setting codes to enable or disable the UPCE0 bar code reading function. **Enable to scan UPCE0 Disable to scan UPCE0 Customers can scan the following setting codes to enable or disable the UPCE0 extra-code...
- Page 20 Customers can scan the following setting codes to enable or disable the UPCE1 bar code reading function. **Enable to scan UPCE1 Disable to scan UPCE1 Customers can scan the following setting codes to enable or disable the UPCE1 extra-code forced output function. UPCE1 force enable extra-code **UPCE1 disable extra-code Customers can scan the following setting codes to enable or disable the configuration of...
- Page 21 Customers can scan the following setting codes to enable or disable the Code128 bar code reading function. **Enable to scan Code128 Disable to scanCode128 Customers can scan the following setting codes to set the shortest and longest reading length of Code128. **Code128 shortest message length is 0 Code128 shortest message length is 4 Code128 longest message length is 32...
- Page 22 Customers can scan the following setting codes to set the shortest and longest reading length of Code39. **Code39 shortest message length is 0 Code39 shortest message length is 4 Code39 longest message length is 32 **Code39 longest message length is 255 Customers can scan the following setting codes to set the Code39 output settings of start character and ending character.
- Page 23 Customers can scan the following setting codes to set whether the Code39 support Full Asc mode. Support Full ASCII mode **No support Full ASCII mode Customers can scan the following setting codes to enable or disable the Code93 bar code reading function.
- Page 24 Customers can scan the following setting codes to enable or disable the Codabar bar code reading function. **Enable to scan Codabar Disable to scan Codabar Customers can scan the following setting codes to set the shortest and longest reading length of Codabar.
- Page 25 Customers can scan the following setting codes to enable or disable the Interleaved 25 bar code reading function. Enable to scan Interleaved 25 **Disable to scan Interleaved 25 Customers can scan the following setting codes to set the shortest and longest reading length of Interleaved 25.
- Page 26 Customers can scan the following setting codes to set the shortest and longest reading length of Industrial 25. Industrial 25 shortest message length is 0 **Industrial 25 shortest message length is 4 **Industrial 25 longest message length is 32 Industrial 25 longest message length is 255 Customers can scan the following setting codes to enable or disable the Matrix 25 bar code reading function.
- Page 27 Customers can scan the following setting codes to enable or disable the Code11 bar code reading function. Enable to scan Code11 **Disable to scan Code11 Customers can scan the following setting codes to set the shortest and longest reading length of Code11.
- Page 28 Customers can scan the following setting codes to enable or disable the MSI Plessey bar code reading function. Enable to scan MSI Plessey **Disable to scan MSI Plessey Customers can scan the following setting codes to set the shortest and longest reading length of MSI Plessey.
- Page 29 Customers can scan the following setting codes to enable or disable the Finite form RSS bar code reading function. **Disable to read the Finite form RSS Enable to read the Finite form RSS Customers can scan the following setting codes to enable or disable the Expanding RSS bar code reading function.
