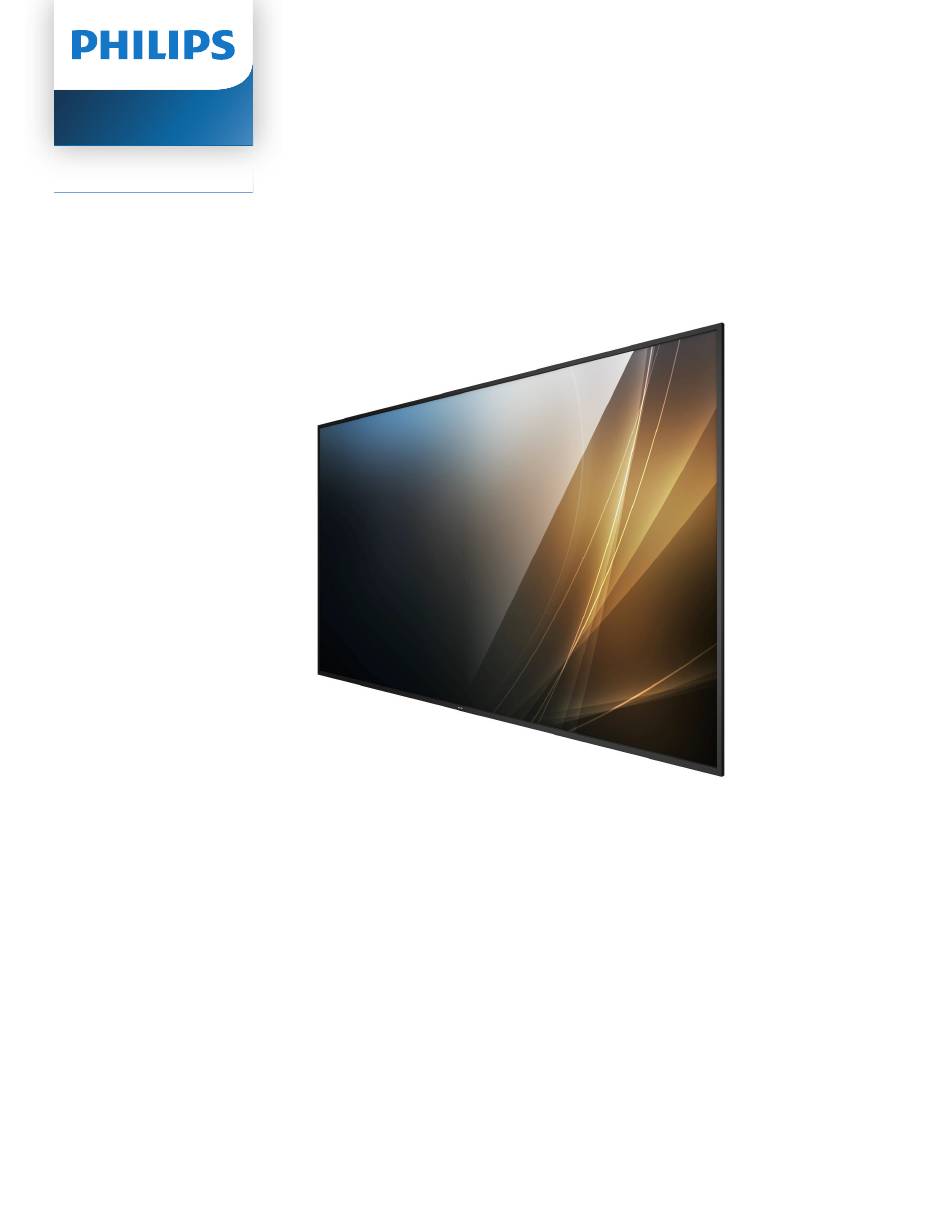

- Page 1 Signage Display 4000 Series 98BDL4511D User Manual (English) www.philips.com/ppds...
-
Page 2: Table Of Contents
2.1. Unpacking ............10 2.2. Package Contents ..........13 11. Technical Specifications ..........42 2.3. Installation Notes ..........13 Warranty policy for Philips Professional Display 2.4. Mounting on a Wall ........14 Solutions .................44 2.5. Mounting in Portrait Orientation ....15 Index ..................46 Parts and Functions .............16 3.1. -
Page 3: Safety Instructions
When turning off the display by detaching the power cord, wait 6 seconds before re-attaching the power cord for normal operation. • Ensure the use of an approved power cord provided by Philips at all times. If your power cord is missing, please contact your local service center. •... - Page 4 98BDL4511D • Environmental absolute ratings Item Min. Max. Unit Storage temperature °C Operation temperature °C Glass Surface temperature °C (Operation) Storage humidity % RH Operating humidity % RH • LCD panel temperature need to be 25 degrees Celsius at all time for better luminance performance.
-
Page 5: Eu Declaration Of Conformity
98BDL4511D EU Declaration of Conformity This device complies with the requirements set out in the Council Directive on the Approximation of the Laws of the Member States relating to Electromagnetic Compatibility (2014/30/EU), Low-voltage Directive (2014/35/EU), RoHS directive (2011/65/EU), ErP directive (2009/125/EC). -
Page 6: Polish Center For Testing And Certification Notice
98BDL4511D Polish Center for Testing and Certification Notice The equipment should draw power from a socket with an attached protection circuit (a three-prong socket). All equipment that works together (computer, display, printer, and so on) should have the same power supply source. -
Page 7: North Europe (Nordic Countries) Information
98BDL4511D Information for U.K. only WARNING - THIS APPLIANCE MUST BE EARTHED. Important: This apparatus is supplied with an approved moulded 13A plug. To change a fuse in this type of plug proceed as follows:+ 1. Remove fuse cover and fuse. - Page 8 98BDL4511D China RoHS 根据中国大陆《电器电子产品有害物质限制使用管理办法》，以下部分列出了本产品中可能包含的有害 物质的名称和含量。 有害物质 部件名称 铅 汞 镉 六价铬 多溴联苯 多溴二苯醚 (Pb) (Hg) (Cd) (Cr (VI)) (PBB) (PBDE) 外壳 液晶显示屏 电路板组件* 电源适配器 电源线/连接线 遥控器 本表格依据SJ/T 11364 的规定编制。 *: 电路板组件包括印刷电路板及其构成的零部件，如电阻、电容、集成电路、连接器等。 O: 表示该有害物质在该部件所有均质材料中的含量均在 GB/T 26572规定的限量要求以下。 X: 表示该有害物质至少在该部件的某一均质材料中的含量超出GB/T 26572规定的限量要求。 上表中打 “X” 的部件， 应功能需要， 部分有害物质含量超出GB/T 26572规定的限量要求， 但符合欧盟...
-
Page 9: Turkey Rohs
Please find out about the local regulations on how to dispose of your old display from your local Philips dealer. (For customers in Canada and U.S.A.) This product may contain lead and/or mercury. -
Page 10: Waste Electrical And Electronic Equipment (Weee)
For more information about E -waste please visit http://www.india.philips.com/about/sustainability/recycling/index.page and to know where you can drop off your waste equipment for recycling in India please contact on below given contact details. - Page 11 98BDL4511D Batteries For EU: The crossed-out wheeled bin implies that used batteries should not be put to the general household waste! There is a separate collection system for used batteries, to allow proper treatment and recycling in accordance with legislation.
-
Page 12: Unpacking And Installation
98BDL4511D Unpacking and Installation 2.1. Unpacking • This product is packed in a carton, together with the standard accessories. • Any other optional accessories will be packed separately. • As this product is high and heavy, the operation of moving the device is recommended to be performed by two technicians. - Page 13 98BDL4511D • Place the display vertically and its weight should spread evenly on the surface. • Keep the display upright, without bending or twisting it while moving.
-
Page 14: Unpacking Process
98BDL4511D Unpacking Process 4. Two people on the sides should hold the top handles ■ from the back of the display, while two others help hold 1. Remove all accessories and top cushion from the top the display from the bottom. -
Page 15: Package Contents
AC Switch cover Power Cord RS232 Cable RS232 Daisy IR Sensor Cable • Cable Clip x 2PCS Chain Cable • Philips logo plate AC Switch USB Cover Cable Clip Philips logo Cover x 2PCS plate HDMI Cable * Differences according to regions. -
Page 16: Mounting On A Wall
98BDL4511D 2.4. Mounting on a Wall To mount this display on a wall, a standard wall-mounting kit (commercially available) is required. It is recommended that you use a mounting interface that complies with TUV-GS and /or UL1678 standard in North America. -
Page 17: Mounting In Portrait Orientation
98BDL4511D Mounting in Portrait Orientation 2.5. This display can be installed in portrait orientation. Rotate the display 90 degrees counterclockwise. The “ ” logo should be on the right side when facing the display. NOTE: The working hour in portrait mode is 18 hours per day. -
Page 18: Parts And Functions
98BDL4511D Parts and Functions 3.1. Control Panel [ ] button [MENU] button Press this button to turn the display on or put it in Return to the previous menu while the OSD menu is On. standby mode. This button can also be used to activate the OSD menu when the OSD menu is Off. -
Page 19: Input/Output Terminals
98BDL4511D 3.2. Input/Output Terminals RJ45 USB 2.0 Service Port PC LINE IN AUDIO OUT IR-OUT IR-IN RS232 RS232 DP IN DP OUT HDMI 1 IN HDMI 2 IN HDMI 3 IN HDMI OUT DVI-I IN 10 11 AC IN USB SERVICE PORT AC power input from the wall outlet. -
Page 20: Remote Control
98BDL4511D 3.3. Remote Control Display information about current activity [ ][ ][ ][ ]NAVIGATION buttons 3.3.1. General functions Navigate through menus and choose items. ] button Confirm an entry or selection. ] BACK button Return to the previous menu page or exit from the previous function. -
Page 21: Id Remote Control
98BDL4511D 3.3.2. ID Remote Control Press the [ID] button and the red LED blinks twice. 1. Press [ID SET] button for more than 1 second to enter the Set remote control ID number when using several displays. ID Mode. The red LED lights up. -
Page 22: Inserting The Batteries In The Remote Control
98BDL4511D 3.4. Inserting the batteries in the remote control The remote control is powered by two 1.5V AAA batteries. To install or replace the batteries: 1. Press and then slide the cover to open it. 2. Insert the batteries with the correct polarity (+) and (–). -
Page 23: Usb Cover
98BDL4511D 3.7. USB Cover • Use the USB cover and screws to cover the USB stick 1. Plugin the USB device. 2. Use the screw provided to fix the USB cover. • Maximum suitable size for the USB stick: USB: 20(W)x10(H)x60(L) mm... -
Page 24: Ac Switch Cover
98BDL4511D 3.8. AC Switch Cover Use AC Switch Cover to cover the AC switch. 1. Install the AC Switch Cover. 2. Fix the AC switch cover with the screw from the accessory kit. -
Page 25: Connecting External Equipment
98BDL4511D Connecting External Equipment 4.1. Connecting External Equipment (Multimedia Player) 4.1.1. Using HDMI video input HDMI IN Multimedia Player [HDMI IN] HDMI Out Connecting a PC 4.2. 4.2.1. Using DVI input [PC LINE IN] PC LINE IN RS232 RS232 DVI-I... -
Page 26: Connecting Audio Equipment
98BDL4511D 4.2.3. Using DP input RS232 RS232 DVI-I DP IN DP Out [DP IN] 4.3. Connecting Audio Equipment 4.3.1. Connecting an external audio device Audio In [AUDIO OUT] Stereo Ampli�er AUDIO... -
Page 27: Connecting Multiple Displays In A Daisy-Chain Configuration
98BDL4511D 4.4. Connecting Multiple Displays in a Daisy-chain Configuration You can interconnect multiple displays to create a daisy-chain configuration for applications such as a menu board. 4.4.1. Display control connection Connect the [RS232 OUT] connector of DISPLAY 1 to the [RS232 IN] connector of DISPLAY 2. -
Page 28: Wire-Connecting To Network
98BDL4511D Wire-connecting to Network 4.7. INTERNET ROUTER [RJ-45] [RJ-45] Network Settings: 1. Switch the router on and enable its DHCP setting. 2. Connect the router to this display with an Ethernet cable. Setup 3. Press [ ] HOME button on the remote control, then select Connect to network 4. -
Page 29: Operation
98BDL4511D Operation 1 / 2 NOTE: The control button described in this section is mainly on the remote control unless specified otherwise. 5.1. Play multimedia files from USB device Return aaa1 aaa2 aaa3 1. Connect your USB device to the USB port on the display. -
Page 30: Osd Menu
98BDL4511D OSD Menu 6.2. OSD Menu Overview An overview of the On-Screen Display (OSD) structure is 6.2.1. Picture menu shown below. You can use it as a reference for further adjustment of your display. Picture Brightness 6.1. Navigating the OSD Menu... - Page 31 98BDL4511D Smart Picture Press - button to narrow the width of the image on the screen to the left. PQ setting NOTE: VGA input only. PC mode: {Standard} / {Highbright} / {sRGB}. Clock Phase Video mode: {Standard} / {Highbright} / {Cinema}.
-
Page 32: Configuration1 Menu
98BDL4511D Speaker V zoom Expands the vertical size of the image Turn the internal speaker on/off. only. NOTE: This function is only available when “Audio Out Sync” is on. H position Sync. Volume Moves the horizontal position of the Enable/disable audio out (line out) volume adjustability to image left or right. -
Page 33: Configuration2 Menu
• {0} - Transparency off. • {1-100} - Transparency level 1-100 Light Sensor (require Philips accessory CRD41 External Sensor Box) Information OSD Choose to turn on or off backlight adjustment according to Set the period of time the information OSD is displayed on environment brightness. -
Page 34: Option Menu
98BDL4511D 6.2.6. Option menu • Switch to Start option to set up IDs of machines backward from current one. • Once the setup is completed, the option exits to End Picture Input Resolution automatically. Screen IR Control • To use this function, serial connect all machines with... - Page 35 98BDL4511D Tiling • {Enable} - Choose to enable or disable the Tiling function. If enabled, the display will apply the settings in {H monitors}, With this function you can create a single large-screen matrix {V monitors}, {Position}, and {Frame comp.}.
- Page 36 98BDL4511D You can select: steps above. A check mark in the box next to the number of the schedule item indicates that the selected schedule is in • The time for the display to turn On and Off. effect. •...
- Page 37 98BDL4511D USB Autoplay Choose to play source type. The options are: {Off} / {On}. NOTE: To use USB Autoplay 1. Create a folder which should be named as “autoplay” in the USB disk. 2. Put the sources(PHOTO/Movie) which should be named as alphabet and digital in the autoplay folder.
-
Page 38: Supported Media Formats
98BDL4511D Supported Media Formats USB Multimedia Formats Video format Video Codec Resolution Bit Rate MPEG1/2 1080P@30fps 40Mbps H.264 4096x2160@60fps 135Mbps HEVC/H.265 4096x2176@60fps 100Mbps Motion JPEG 640x480@30fps 40Mbps Audio format Audio Codec Sampling Rate Channel Bit Rate MPEG1/2 Layer1 16KHz-48KHz Up to 2... -
Page 39: Input Mode
98BDL4511D Input Mode Timing support: Item Resolution H.Freq. (KHz) V.Freq. (Hz) 720×400 @70Hz DOS 31.469 70.087 640×480 @60Hz DMT 31.469 59.94 640×480 @67Hz MAC 66.667 640×480 @72Hz DMT 37.861 72.809 640×480 @75Hz DMT 37.5 800×600 @56Hz DMT 35.156 56.25 800×600 @60Hz DMT 37.879... -
Page 40: Pixel Defect Policy
However, pixel or sub-pixel defects on the PDP / TFT panels used in Plasma- & LCD- displays are sometimes unavoidable. No manufacturer can guarantee that all panels will be free from pixel defects, but Philips guarantees that any Plasma- &... -
Page 41: Dark Dot Defects
Pixel Defect Tolerances In order to qualify for repair due to pixel defects during the warranty period, a PDP / TFT panel in a Philips Plasma / LCD- display must have pixel or sub-pixel defects exceeding the tolerances listed in the following table. -
Page 42: Cleaning And Troubleshooting
98BDL4511D HOW TO AVOID MURA Although we can not guarantee the complete eradication of Mura every time, in general the appearance of Mura can be minimized by these methods: • Lower the backlight brightness • Use a screen saver •... -
Page 43: Troubleshooting
98BDL4511D 10.2. Troubleshooting Symptom Possible Cause Remedy No picture is displayed 1. The power cord is disconnected. 1. Plug in the power cord. 2. The main power switch on the back of 2. Make sure the power switch is the display is not switched on. -
Page 44: Technical Specifications
98BDL4511D Technical Specifications Display: Item Specifications Screen Size (Active Area) 247.7 cm / 97.5 inch Aspect Ratio 16:9 Number of pixels 3840 (H) x 2160 (V) Pixel pitch 0.5622 (H) x 0.5622 (V) [mm] Displayable colors 8 bits+FRC, 1.07 Billion colors... - Page 45 98BDL4511D General: Item Specifications Power Input 100 - 240V~, 50/60Hz Power Consumption (Max) 605 W Power Consumption (Typ.) 355 W Power Consumption (Standby mode & Off <0.5 W mode) AC Switch Off Mode (W) Dimensions (Without Stand) [W x H x D] 2193.4 x 1255.3 x 94.1 mm (@Handle) / 90.0 mm (@Wall mount)
-
Page 46: Warranty Policy For Philips Professional Display Solutions
LIMITED WARRANTY In the unlikely event the product requires service, we will arrange for your Philips product to be serviced free-of-charge within the warranty period, provided that the product was used in accordance with the user manual (e.g. in the intended environment). - Page 47 Warranty period for PHILIPS signage display is listed as below, for areas not covered in this table, please follow their warranty statement. Standard warranty period for PHILIPS signage display is listed as below, for areas not covered in this table, please follow the local warranty statement.
-
Page 48: Index
Index Unpacking and Installation 10 USB Cover 21 Warranty policy for Philips Professional Display Solutions AC Switch Cover 22 Wire-connecting to Network 26 Cleaning and Troubleshooting 40 Connecting a PC 23 Connecting Audio Equipment 24 Connecting External Equipment 23 Connecting External Equipment (Multimedia Player) 23... - Page 49 This product has been manufactured by and is sold under the responsibility of Top Victory Investments Ltd., and Top Victory Investments Ltd. is the warrantor in relation to this product. Philips and the Philips Shield Emblem are registered trademarks of Koninklijke Philips N.V. and are used under license.
