Summary of Contents for ZIPPER MASCHINEN ZI-HB204

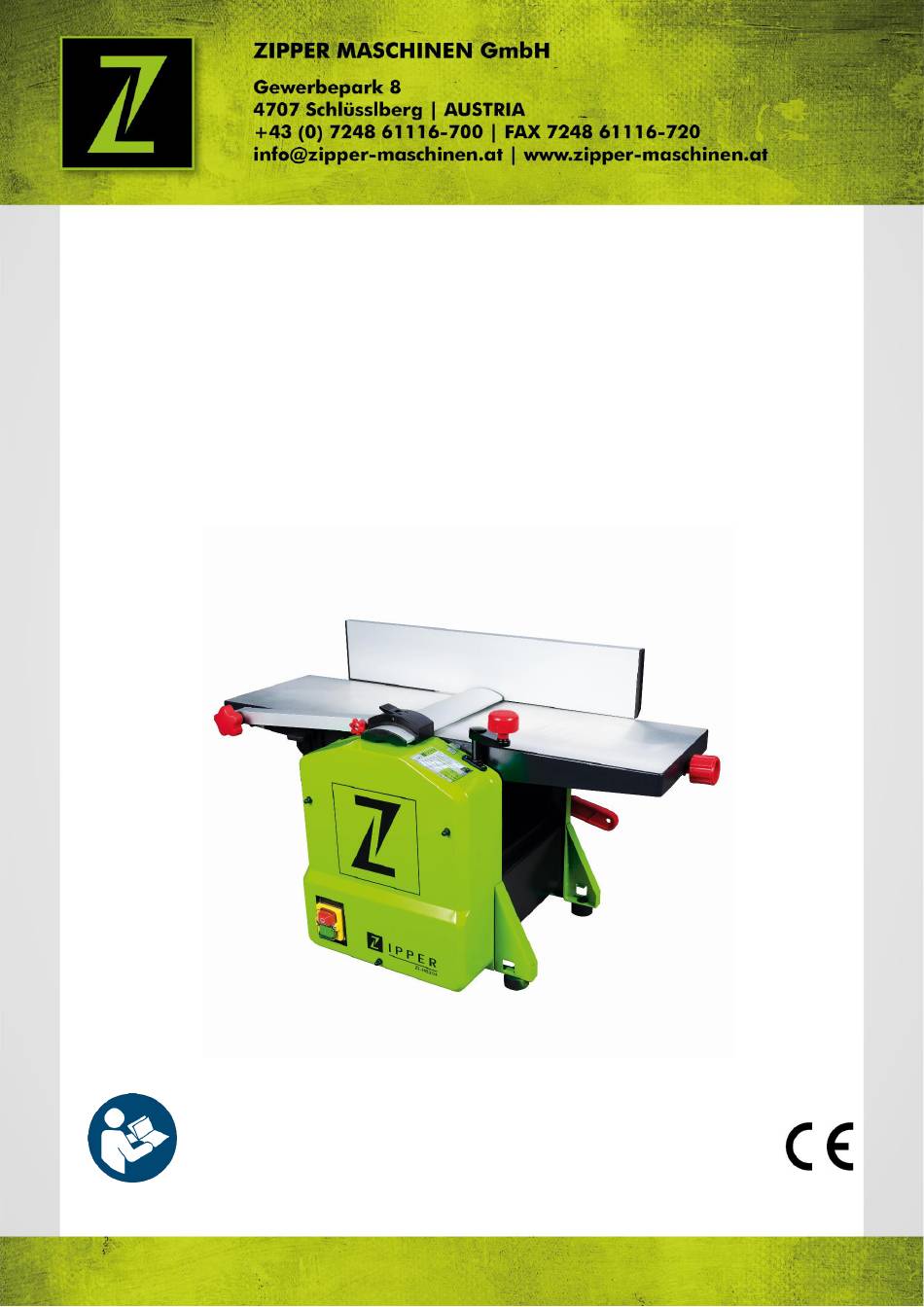

  • Page 1 MODE D´EMPLOI Dégauchisseuse – Raboteuse NÁVOD K POUŽITÍ Srovnávací a tloušťkovací frézka NAVODILA ZA UPORABO Poravnalno – debelinski skobeljni stroj UPUTA ZA UPORABU Ravnalica i blanjalica ZI-HB204 EAN: 912003923807 4 Edition: 04.05.2020 – Revision - 00 – RaR - DE/EN/ES/FR/CZ/SL/HR...
  • Page 2: Dear Customer

    Dear Customer! This manual contains important information and advice for the correct and safe use and maintenance of the Compined planer and thicknesser ZI-HB204. Following the usual commercial name of the device (see cover) is substituted in this manual with the name "machine".
  • Page 3: Intended Use

    Do not overload the machine  Provide good stability and keep balance all times  Avoid abnormal working postures! Make sure you stand squarely and keep balance at all times.  Keep away from the running tool! ZIPPER MASCHINEN GmbH www.Zipper-Maschinen.at ZI-HB204...
  • Page 4: Remaining Risk Factors

    Risk of injury to the eye by flying debris, even with safety goggles. These risk factors can be minimized through obeying all security and operation instructions, proper machine maintenance, proficient and appropriate operation by persons with technical knowledge and experience. ZIPPER MASCHINEN GmbH www.Zipper-Maschinen.at ZI-HB204...
  • Page 5: Assembly / Adjustment

    A C H T U N G For a clean operation, the connection of the Zi-HB204 to a dust collector is recommended in any case.
  • Page 6: Operation

    Guard is over the whole planing shaft. Feed of the workpiece indirectly with sliding wood. Sets secure stand and guide the workpiece standing over the planer shaft. Never stand Right or directly behind the planing shaft. ZIPPER MASCHINEN GmbH www.Zipper-Maschinen.at ZI-HB204...
  • Page 7 Workpieces that are too short should not be processed.  A C H T U N G Always assemble the dust chute (planing or thick planing) and ensure that the keys are pushed (this press the safety switch!)! ZIPPER MASCHINEN GmbH www.Zipper-Maschinen.at ZI-HB204...
  • Page 8: Maintenance Plan

    -The blades which used with the tool may be replaced or re-sharpened.  -If the blades are re-sharpened, the re-sharpenings should be not more than 3 times with 0.05mm max. each time.  -the blades used in this tool can not be used to rebate. ZIPPER MASCHINEN GmbH www.Zipper-Maschinen.at ZI-HB204...
  • Page 9: 15 Trouble Shooting

    CONNECTED TO YOUR POWER SUPPLY BY A CERTIFIED ELECTRICIAN. N O T I C E Should you in necessary repairs not able to properly to perform or you have not the prescribed training for it always attract a workshop to fix the problem. ZIPPER MASCHINEN GmbH www.Zipper-Maschinen.at ZI-HB204...
