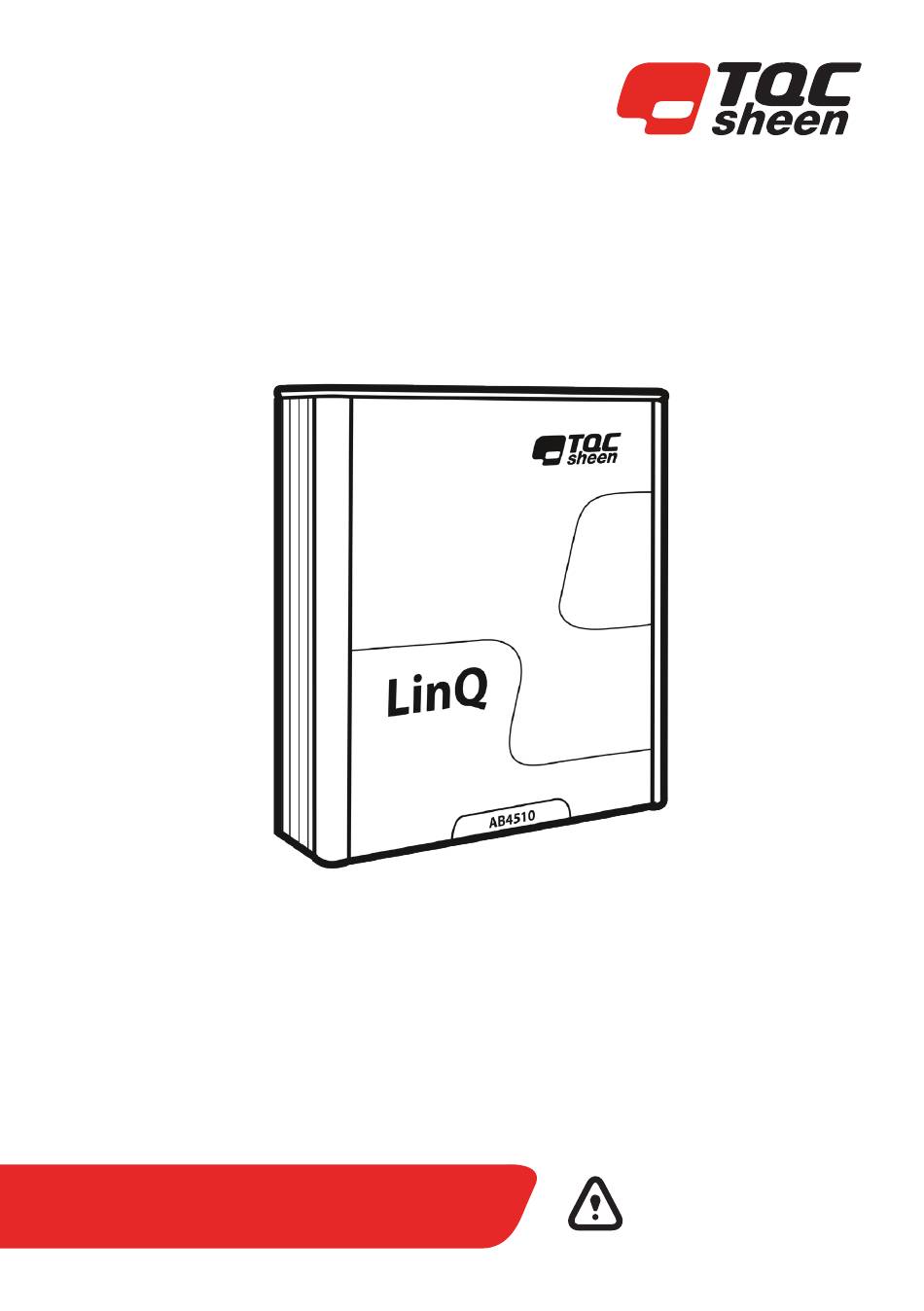

TQC Sheen LinQ AB4510 Operating Instructions Manual

Hide thumbs

Advertisement

Table of Contents

LinQ
AB4510
Operating Instructions
(V1.0 0319)
IMPORTANT! Before taking
this instrument in use we
strongly advise you to read
this manual carefully.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the LinQ AB4510 and is the answer not in the manual?

Questions and answers

Summary of Contents for TQC Sheen LinQ AB4510

  • Page 1 LinQ AB4510 IMPORTANT! Before taking this instrument in use we Operating Instructions (V1.0 0319) strongly advise you to read this manual carefully.
  • Page 3 Index Instrument Data Name / Article Number Scope of Supply Instrument Controls and Functions Installation Device Protocol Timeout Communication Protocol Base Packets Request Packet Structure Response Packet Structure Special Rensponse Packets Data Types AFA Specific Commands 10/11/12 11.1 Settings of AFA Values Commands 11.2 Reding of AFA Values Commands 11.3...

  • Page 4: Instrument Data

    1 Instrument Data 1.1 Name / Article Number AB4510 LinQ 1.2 Scope of Supply LinQ Manual USB cable 1.3 Instrument Controls and Functions 1 USB 2 TQC Sheen Bus 1 3 TQC Sheen Bus 2...

  • Page 5: Installation

    CRC) ( e.g. http://www.faqs.org/rfcs/rfc3309.html ). Movement etc. Code snipit: A Demo application with source code is available at TQC Sheen. 3 Device Protocol This document covers the communication protocol with the Universal Lab Controller (ULC) equipped Lab Instruments. The protocol includes a description of a data transport and otherwise a declaration of the communication protocol.
  • Page 6 6 Base Packets Below a schematic overview of the composition of the packets: Orange UINT16 0xCDCD Error Data Light Grey UINT8 Conversation ld Blue UINT8 Command ld 1 Green UINT8 Payload Length White n bytes *1 Payload Dark Grey UINT32 *2 32 Bit CRC checksum When the payload is defined as variable the first byte always present the number of bytes that follows.
  • Page 7 8 Response Packet Structure [Synch16 bits] [Conversation Byte] [CmdByte1][Payload length] [Payload……][Checksum-32bit] Response Payload Payload UINT32 length checksum 1 byte 1 byte 1 byte 1 byte 1/2 byte n bytes 4 bytes The conversation id in the response will be the same as the one from the request.
  • Page 8 9 Special Response Packets The device has some special responses to indicate something either so normal. Payload will contain {Error Value}{Error Data}, 2x UINT16 = 4 bytes. Response Payload 2x UINT16 UINT32 length Error code checksum 1 byte 1 byte 1 byte 1 byte 1/2 byte 4 bytes 4 bytes...

  • Page 9: Data Types

    10 Data Types To prevent obscurity about how the data is present follows here a definition of the used data types below. CHAR 8-bit value to save characters INT8 Signed 8-bit UINT8 Unsigned 8-bit INT16 Signed 16-bit UINT16 Unsigned 16-bit INT32 Signed 32-bit UINT32...
  • Page 10 11 AFA Specific Commands 11.1 Setting of AFA values Command (0x64) Request Payload UINT16 Payload UINT32 length enumeration checksum 1 byte 1 byte 1 byte 1 byte 1 byte 2 bytes 4 bytes Response Payload Payload UINT32 length checksum 1 byte 1 byte 1 byte 1 byte 1 byte n bytes 4 bytes...
  • Page 11 Commands Conversation ID=0x00, Mainboard AFA Enumeration Description Payload Payload Definition (HEX value) Length (bytes) 0x00 Hardwarestatus U32 Status (See (ReadOnly) HardwareStatus table) 0x02 Initialisation Write : Dummy byte starts initialisation Read: 0-100% Completion, 0xFF Failure 0x04 Generate audio U8 + U8 0-100 % Volume, U16 + U16 Fequency...
  • Page 12 HardwareStatus Conversation ID=0x00, Mainboard AFA Hardwarestatus Description 0x00 00 00 00 0x00 00 00 01 Emergency button is activated 0x00 00 00 02 Device Not initialised 0x00 00 00 04 New ADD-ON detected 0x00 00 01 00 Motor Carrier is blocked 0x00 00 02 00 Motor Clamp is blocked 0x00 00 04 00...
  • Page 13 12 AFA Heated Bed Specific Commands Commands Conversation ID=0x01, Heated bed option Enumeration Description Payload Payload (HEX value) Length Definition (bytes) 0x00 Hardwarestatus (ReadOnly) (See Hardware Status table) 0x300 SET Bed temperature 0-250 deg C 0x301 Current probe 0-250 deg C temperature HardwareStatus Conversation ID=0x01, Heated bed option...
  • Page 14 13 Disclaimer The right of technical modifications is reserved. The information given in this manual is not intended to be exhaustive and any person using the product for any purpose other than that specifically recommended in this manual without first obtaining written confirmation from us as to the suitability of the product for the intended purpose does so at his own risk.
  • Page 16 www.industrialphysics.com...
