Comelit RF4KEY Technical Manual

art:
RF4KEY
T E C H N I C A L M A N U A L
4-key radio control
RF4KEY is a high-performance bidirectional radio
control with configurable keys. It can be used to
view the system status and feedback relating to the
commands sent to the control panel. RF4KEY has
an excellent radio range and features a keypad lock
function.

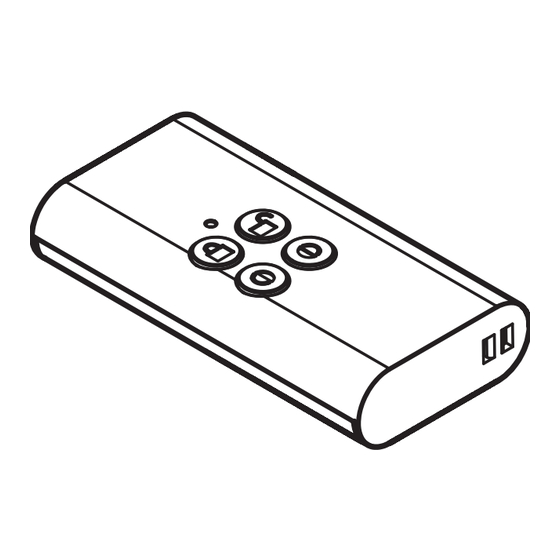

DESCRIPTION
1
3
1. Button 1
2. Button 2
3. Button 3
4. Button 4
5. 3-Colour LED
TECHNICAL SPECIFICATIONS
RF communication
TX/RX RF range (open
Low voltage threshold 2.6 V
Current absorbed (TX
/ Standby)
EMC immunity EN 50130-4
Operating temperature
Dimensions 66 x 35 x 12 mm
5
2
4
REGISTRATION
Refer to the full control panel programming
manual for further information.
√ Make sure the radio control has not been
registered previously. If it has, follow the reset
procedure.
1. Access the radio control registration menu.
2. Select the radio control you want to register and
start the acquisition phase.
3. Press any key once.
» The red LED flashes slowly while waiting for
the control panel to confirm acquisition.
» The LED displays the acquisition result and
provides signal (RSSI) indication:
• 3 green flashes: stable connection
• 3 yellow flashes: unstable connection
• 3 red flashes: device not registered.
DEVICE RESET
f Press and hold keys 1 and 4 until the red LED
lights up steadily. While the red LED is lit, press
key 4 once.
» The green LED confirms correct completion of a
reset with three short flashes.
Bidirectional
type 868.05 - 869.95 MHz
600 m
air)
Battery CR2450
16 mA / 2 μA
-10 to 50°C
range
