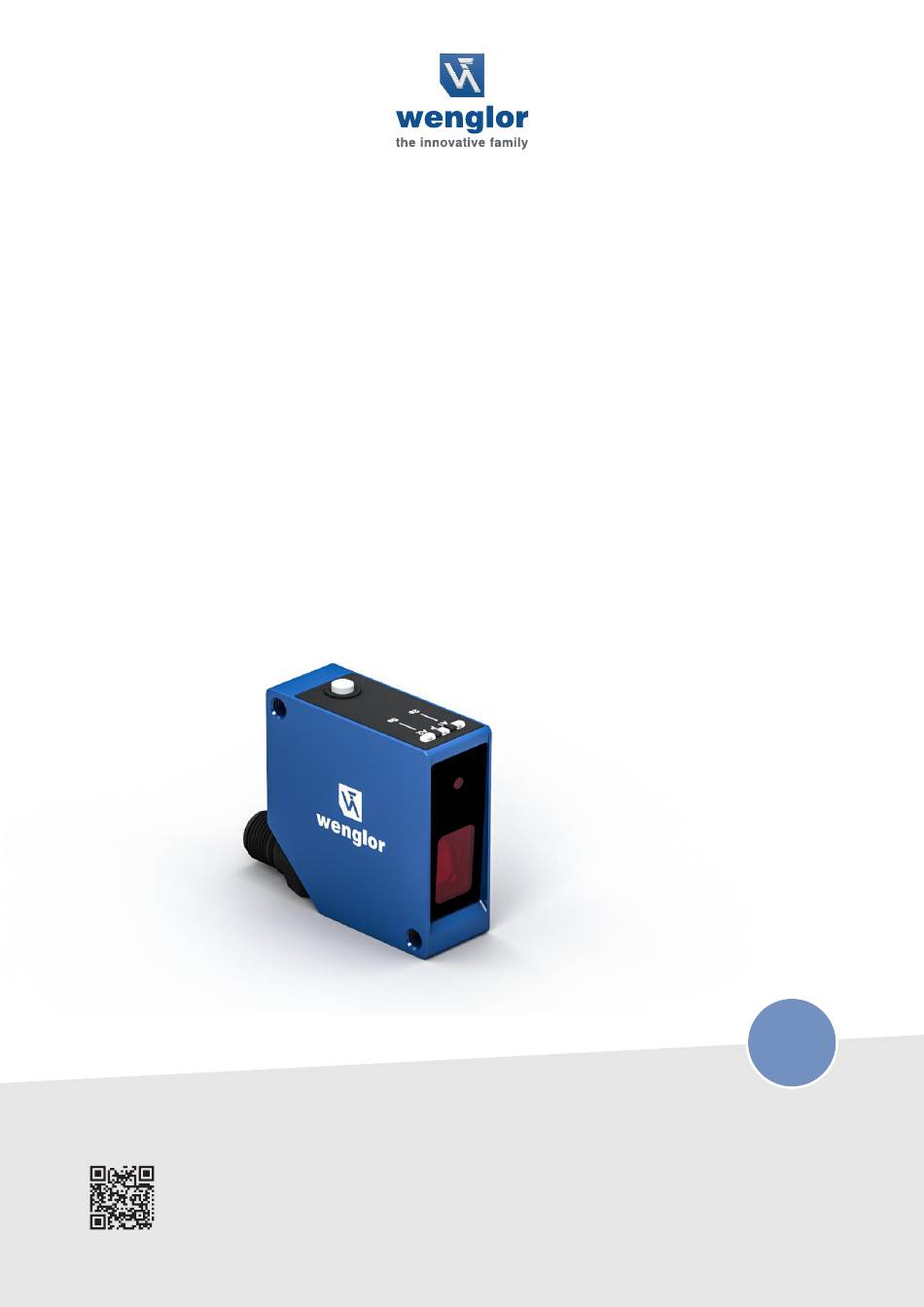

- Page 1 Operating Instructions OPT2509 Laser Distance Sensor Triangulation Translation of the original operating instructions Subject to change without notice Available as PDF file only Version 1.0 www.wenglor.com...
-
Page 2: Table Of Contents
7.5 Switching Point Functions (SSC1/SSC2)......................... 24 7.6 Differential and Thickness Measurement ......................... 27 7.7 Condition Monitoring Functions ............................31 7.7.1 Status Message Function ............................31 7.7.2 Warning/Error Output Function ..........................31 Table of Contents | OPT2509 ‒ Laser Distance Sensor Triangulation... - Page 3 8.2 Condition Monitoring/Process Data..........................33 8.2.1 Process Data In ............................... 33 8.2.2 Process Data Out..............................33 8.2.3 Events..................................33 9 Maintenance Instructions ............................. 35 10 Proper Disposal ................................36 11 Declarations of Conformity............................37 Table of Contents | OPT2509 ‒ Laser Distance Sensor Triangulation...
-
Page 4: General
The safety precautions and warnings are laid out in accordance with the following principle: SIGNAL WORD Type and source of danger! Possible consequences in the event that the hazard is disregarded. à Measures for averting the hazard. 1 ‒ General | OPT2509 ‒ Laser Distance Sensor Triangulation... -
Page 5: Limitation Of Liability
• wenglor assumes no liability for printing errors or other inaccuracies contained in these operating in- structions unless wenglor was verifiably aware of such errors at the point in time at which the operat- ing instructions were prepared. -
Page 6: Copyrights
• All rights are reserved by wenglor. • Commercial reproduction or any other commercial use of the provided content and information, in particular graphics and images, is not permitted without previous written consent from wenglor. 1 ‒ General | OPT2509 ‒ Laser Distance Sensor Triangulation... -
Page 7: For Your Safety
• Not a safety component in accordance with 2006/42/EC (Machinery Directive). • The product may be used only with accessories supplied or approved by wenglor, or in combination with approved products. A list of approved accessories and combination products can be found at www.automationdirect.com on the product detail page. -
Page 8: Personnel Qualifications
Read the operating instructions carefully before using the product. Protect the sensor against contamination and mechanical influences. Laser Warnings Laser Class 1 (EN 60825-1) LASER CLASS 1 Applicable standards and safety regulations must EN 60825-1:2014 be observed. 2 ‒ For Your Safety | OPT2509 ‒ Laser Distance Sensor Triangulation... -
Page 9: Approvals And Protection Class
Approvals and Protection Class IND. CONT. EQ 72HL / E189727 For use in class 2 circuits 2 ‒ For Your Safety | OPT2509 ‒ Laser Distance Sensor Triangulation... -
Page 10: Technical Data
Aluminum, anodised Plastic, ABS Optic Cover Plastic, PMMA Degree of Protection IP67 Connection M12 × 1; 4/5-pin Output Functions Output Technical Safety Data MTTFd (EN ISO 13849-1) 720.35 a 3 ‒ Technical Data | OPT2509 ‒ Laser Distance Sensor Triangulation... -
Page 11: Light Spot Diameter
Housing Dimensions ① = emitted light ② = receiver diode M4 screw = 1 Nm M5 screw = 2 Nm Dimensions specified in mm (1 mm = 0.03937") 3 ‒ Technical Data | OPT2509 ‒ Laser Distance Sensor Triangulation... -
Page 12: Control Panel
68 = supply voltage indicator Complementary Products wenglor offers you the right connection and mounting technology as well as other accessories for your product. You can find this at www.automationdirect.com on the product details page at the bottom. Scope of Delivery •... -
Page 13: Transport And Storage
• Protect the product against exposure to direct sunlight. NOTICE Risk of property damage in case of improper storage! The product may be damaged. à Storage instructions must be complied with. 4 ‒ Transport and Storage | OPT2509 ‒ Laser Distance Sensor Triangulation... -
Page 14: Installation And Electrical Connection
à Comply with installation instructions. CAUTION Risk of personal injury or property damage during installation! Personal injury and damage to the product may occur. à Ensure a safe installation environment. 5 ‒ Installation and Electrical Connection | OPT2509 ‒ Laser Distance Sensor Triangulation... -
Page 15: Adjustment
With holes, blind holes and edges in the surface of moving parts, the sensor must be positioned so that the edge does not obscure the laser dot. 5 ‒ Installation and Electrical Connection | OPT2509 ‒ Laser Distance Sensor Triangulation... - Page 16 Measuring Objects with Evenly Positioned, Colored Edges When oriented correctly, the influence on measuring accuracy is minimal. When oriented incorrectly, the different reflectivity of the various colors will result in deviations. 5 ‒ Installation and Electrical Connection | OPT2509 ‒ Laser Distance Sensor Triangulation...
-
Page 17: Electrical Connection
Risk of personal injury or property damage due to electric current. Voltage-conducting parts may cause personal injury or damage to equipment. à The electric device may be connected by appropriately qualified personnel only. 5 ‒ Installation and Electrical Connection | OPT2509 ‒ Laser Distance Sensor Triangulation... -
Page 18: Diagnosis
O are not working properly Switching status indica- Switching outputs active tor A1, A2 Switching outputs not active Localization Localization function active = Not lit = Permanently lit = Flashing 5 ‒ Installation and Electrical Connection | OPT2509 ‒ Laser Distance Sensor Triangulation... -
Page 19: Troubleshooting
Risk of personal injury or property damage in case of non-compliance! The system’s safety function is disabled. Personal injury and damage to equipment may occur. à Required action as specified in case of fault. 5 ‒ Installation and Electrical Connection | OPT2509 ‒ Laser Distance Sensor Triangulation... -
Page 20: Settings
If there is an error during teach-in preventing it from being carried out, this is indicated by a red LED. 6 ‒ Settings | OPT2509 ‒ Laser Distance Sensor Triangulation... -
Page 21: Function Description
This function can be used to suppress interfering signals, such as those produced by a glass disk, for instance. Min. distance: working range Max. distance: working range Note! 7 ‒ Function Description | OPT2509 ‒ Laser Distance Sensor Triangulation... - Page 22 LEDs in normal function. Measured value unit The measured distance can be output in micrometers or mils. micrometer Micrometer Distance values output in μm. Distance values read out in mil. 7 ‒ Function Description | OPT2509 ‒ Laser Distance Sensor Triangulation...
-
Page 23: Input/Output Functions (E/A)
The pin is deactivated. Output Functions The output functions are used to set the physical outputs. Digital Outputs Function Possible settings Default Polarity Push-pull Circuit Light switching (Normally Open) 7 ‒ Function Description | OPT2509 ‒ Laser Distance Sensor Triangulation... -
Page 24: Input Functions
Possible settings Default Teach-in Starts the teach-in process. Teach-in Foreground Teach-In Foreground teach-in mode Sensor Teach-in distance Object Switching point Background Teach-In Sensor Teach-in distance Object Switching point Window Teach-In 7 ‒ Function Description | OPT2509 ‒ Laser Distance Sensor Triangulation... - Page 25 If a distance range has been set, the switching point can be set within the set distance range only. Hysteresis mode Hysteresis is the difference between the switch-on and switch- Auto off point. Auto 7 ‒ Function Description | OPT2509 ‒ Laser Distance Sensor Triangulation...
- Page 26 Negative A jump is detected when the measured value jumps to a lower value, i.e. the contrast value becomes darker. Both 7 ‒ Function Description | OPT2509 ‒ Laser Distance Sensor Triangulation...
-
Page 27: Differential And Thickness Measurement
In addition, the calculated difference or thickness output as absolute value via IO-Link. Mechanical Layout Differential Measurement Sensor Sensor alignment offset Sensor Main Secondary Reference object Reference thickness 7 ‒ Function Description | OPT2509 ‒ Laser Distance Sensor Triangulation... - Page 28 In this case, the main sensor is set to the “Thickness measurement” operating mode. The operating mode must be changed accordingly when performing a differential measurement. 7 ‒ Function Description | OPT2509 ‒ Laser Distance Sensor Triangulation...
- Page 29 A combination of red and blue laser versions is also possible. This combination is recommended if the sensors interfere with each other when there is no object due to the installation situation. 7 ‒ Function Description | OPT2509 ‒ Laser Distance Sensor Triangulation...
- Page 30 Referencing Start of the referencing process To do so, the reference object must be placed in the measur- ing system, depending on the mechanical layout, and refer- encing started. 7 ‒ Function Description | OPT2509 ‒ Laser Distance Sensor Triangulation...
-
Page 31: Condition Monitoring Functions
The sensor signal is overexposed. Temperature too The sensor’s internal temperature is high. high Temperature too The sensor’s internal temperature is low. Emitted light off The sensor’s emitted light is switched off. 7 ‒ Function Description | OPT2509 ‒ Laser Distance Sensor Triangulation... -
Page 32: Simulation Functions
INFORMATION Output A1 is used for IO-Link communication in this function and cannot be simulated. Simulation mode ends automatically as soon as the power supply is interrupted. 7 ‒ Function Description | OPT2509 ‒ Laser Distance Sensor Triangulation... -
Page 33: Io-Link
0x8C40 Notifica- IO-Link tion Device error – unknown error 0x1000 Error IO-Link Short circuit – check installation 0x7710 Error IO-Link Device temperature too high: Remove heat source 0x4210 Warning IO-Link 8 ‒ IO-Link | OPT2509 ‒ Laser Distance Sensor Triangulation... - Page 34 Name Event code Type Specification Device temperature too low: Isolate device 0x4220 Warning IO-Link Temperature error: Overload 0x4000 Error IO-Link Supply voltage too low – check tolerances 0x5111 Warning IO-Link 8 ‒ IO-Link | OPT2509 ‒ Laser Distance Sensor Triangulation...
-
Page 35: Maintenance Instructions
Cleaning and inspection of the plug connections at regular intervals are advisable. Do not clean the product with solvents or cleaning agents that could damage the product. The product must be protected against contamination during initial start-up. 9 ‒ Maintenance Instructions | OPT2509 ‒ Laser Distance Sensor Triangulation... -
Page 36: Proper Disposal
Proper Disposal wenglor sensoric GmbH does not accept the return of unusable or irreparable products. Respectively valid national waste disposal regulations apply to product disposal. 10 ‒ Proper Disposal | OPT2509 ‒ Laser Distance Sensor Triangulation... -
Page 37: Declarations Of Conformity
Declarations of Conformity Declarations of conformity can be found on our website at www.automationdirect.com in the product’s separate download area. 11 ‒ Declarations of Conformity | OPT2509 ‒ Laser Distance Sensor Triangulation...
