Summary of Contents for Quin M110

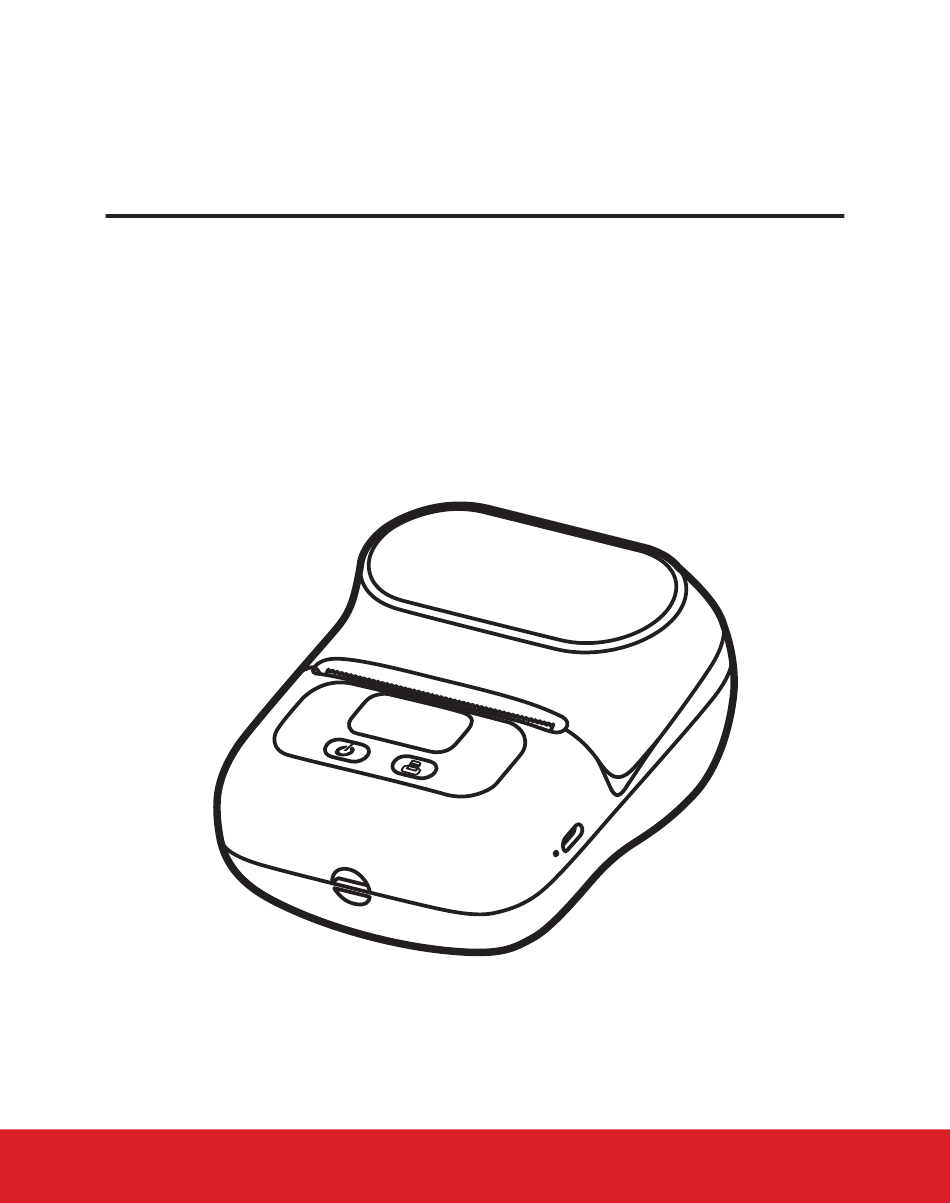

Page 1 User Guide M110 English...
Page 2 1. Product Introduction 1.1 Packing List Q ui ck St ar t Gu id e M 11 0 Printer Quick Start Guide Type-C Cable ×1 ×1 ×1 Paper Roll Spindle 100-Pc 40*30㎜ Paper Roll ×1 ×1 The Paper Roll and Paper Roll Spindle have been installed in the printer. However, if you have purchased a bundled printer package, it does not include a 40*30㎜-100pc Paper Roll.
Page 3 2. Getting Started 2.1 Downloading the App Method 1: Search for the "Print Master" app on App Store® or Google Play™ for download and installation. Print Master Print Master Method 2: Scan the QR code to download the app. You can scan the code using your cell phone's camera, the built-in QR code scanning feature of your browser, or a dedicated QR code scanning app.
Page 4 2.2 User Guide Remove the protective ﬁlm. Long press the Power Button for 3 seconds until the Display lights up. Long press for 3s to turn on printer This step is required for ﬁrst use. Open the "Print Master" app. Grant permissions.
Page 5 Connected. Edit your ﬁrst label, and tap [Print] after you ﬁnish editing. The following printers are found your nickname Please enter your nickname Print Connected Printing is completed. Tear oﬀ the label along the Paper Exit. Printing completed Please enter your nickname Print Remove the liner.
Page 6 Display lights up. Long press for 3s to turn on printer Print Master Tap [Scan]. M110 Please use [Scan] after connecting the printer to the app. Otherwise, scanning will fail and the editing page will not be Scan displayed.
Page 7 Hold both sides of the Top Cover Take out the Paper Roll Spindle. and pull it upwards to open it, as illustrated. Remove the Movable Damper. Movable Damper Fixed Damper Please remove the existing paper roll from the Paper Roll Spindle before loading a new paper roll.
Page 8 Peel oﬀ the Anti-loosening Sticker from the side that is marked with an arrow. Insert the ends of the Paper Roll Spindle into the slots on the sides of the Paper Compartment, making sure that the arrow on the ﬁxed guide is pointing upwards.
Page 9 4. Identifying Label Sizes 4.1 Scanning the QR Code Go to "Home" and tap [Scan]. Aim the scanning frame at the QR code on the paper roll box. M110 Scan Enter the editing page. • White-4030 Please connect the printer to the app 1.57×1.18 in...
Page 10 Click on [New Label] on the app Find label speciﬁcations on the homepage and select [Newly information side of the paper roll created by blank label]. box. M110 New Label Newly created by blank label Input corresponding speciﬁcations. Enter the editing page. White-4030 Label Setting Conﬁrm...
Page 11 Click on [New Label] on the app Measure the length and width of homepage and select [Newly a single label with a ruler. created by blank label]. M110 New Label 30mm Newly created by blank label (cm) Input corresponding speciﬁcations.
Page 12 USB Type-A End Long press for 3s to turn on printer USB Type-C Port Visit ms.printsupport.cn/?mo=M110 Installing the "Labelife" application. to download the "Labelife" application. One-Click Install ms.printsupport.cn/?mo=M110 Labelife_Setup...
Page 13 6. App User Guide 6.1 Manual Connection Select your printer. Click on the top left corner to connect to the printer Choose your printer Tap to connect M110 Series Searching for printer. Connected. The following printers are found Searching for printer... Connected...
Page 14 Bluetooth devices. 3. Bluetooth Pairing Request. Pair with M110? You can simply tap "Pair" without Allow access to your contacts and call history checking "Allow access to your contacts Block and call history."...
Page 15 7. Safety Instructions 7.1 Manual Cutter and Print Head Instructions Manual Cutter Print Head Warning: This cutter has sharp edges. Do not touch the edges of the cutter. Warning: The component can be HOT! Touching it when it is hot can cause burns to your ﬁngers.
Page 16 1. Please prepare your own power adapter (DC 5V/2A) with a Type-A port. 2. Insert the Type-C end (ﬂat end) of the USB cable into M110's Type-C Port; insert the Type-A end (wide end) of the USB cable into the Type-A port of the power adapter.
Page 17 8. Cleaning and Maintenance Please make sure the printer is turned oﬀ before performing any cleaning or maintenance. If you encounter issues such as blank lines, blurry print, or missing characters, it may be caused by dirt on the Print Head. Please follow these steps: If you have just ﬁnished printing, wait for at least 30 minutes for the Print Head to cool down completely.
Page 18 9. Operator Panel Instructions 9.1 Display Instructions Top Cover opened Gap Label Label Type Black Mark Label Settings When your printer is connected Continuous Label to a computer, will turn into Feeding/Printing Charging status Bluetooth connected Battery Level Printer Serial Number Information Display Area Q155C-21X78921 (SN Code)
Page 19 10. Information to User 10.1 FCC WARNING 1. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference,and (2) This device must accept any interference received, including interference that may cause undesired operation.
Page 20 10.2 ISED NOTICE(Canada) CAN ICES(B)/NMB(B) - English: This device contains licence-exempt transmitter(s)/receiver(s) that comply with Innovation, Science and Economic Development Canada’ s licence-exempt RSS(s). Operation is subject to the following two conditions: (1) This device may not cause interference. (2) This device must accept any interference, including interference that may cause undesired operation of the device.
Page 21 Series model(s): N/A aﬃxed to declared product TRADE/BRAND NAME: N/A Zhuhai Quin Technology Co., Ltd., as the responsible party for regulatory compliance, declares under our sole responsibility that as delivered the described product is in conformity with the Radio Equipment Directive 2014/53/EU, EU Restriction of Hazardous Substances (RoHS) Directive 2011/65/EU and its amending Directive (EU) 2015/863, and carries the CE-marking.
Page 22 The Bluetooth®/MD word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by Zhuhai Quin Technology Co., Ltd. is under license. Other trademarks and trade names are those of their respective owners.
Page 23 Special Notes The company assumes full responsibility for the revision and explanation of this manual, exercising utmost diligence to guarantee its accuracy. Nevertheless, please note that any technical improvements to the product may not be separately notiﬁed, and that the images of the product, accessories, software interfaces, etc.
