Charlton & Jenrick Ltd
GO ECO Adventurer 5

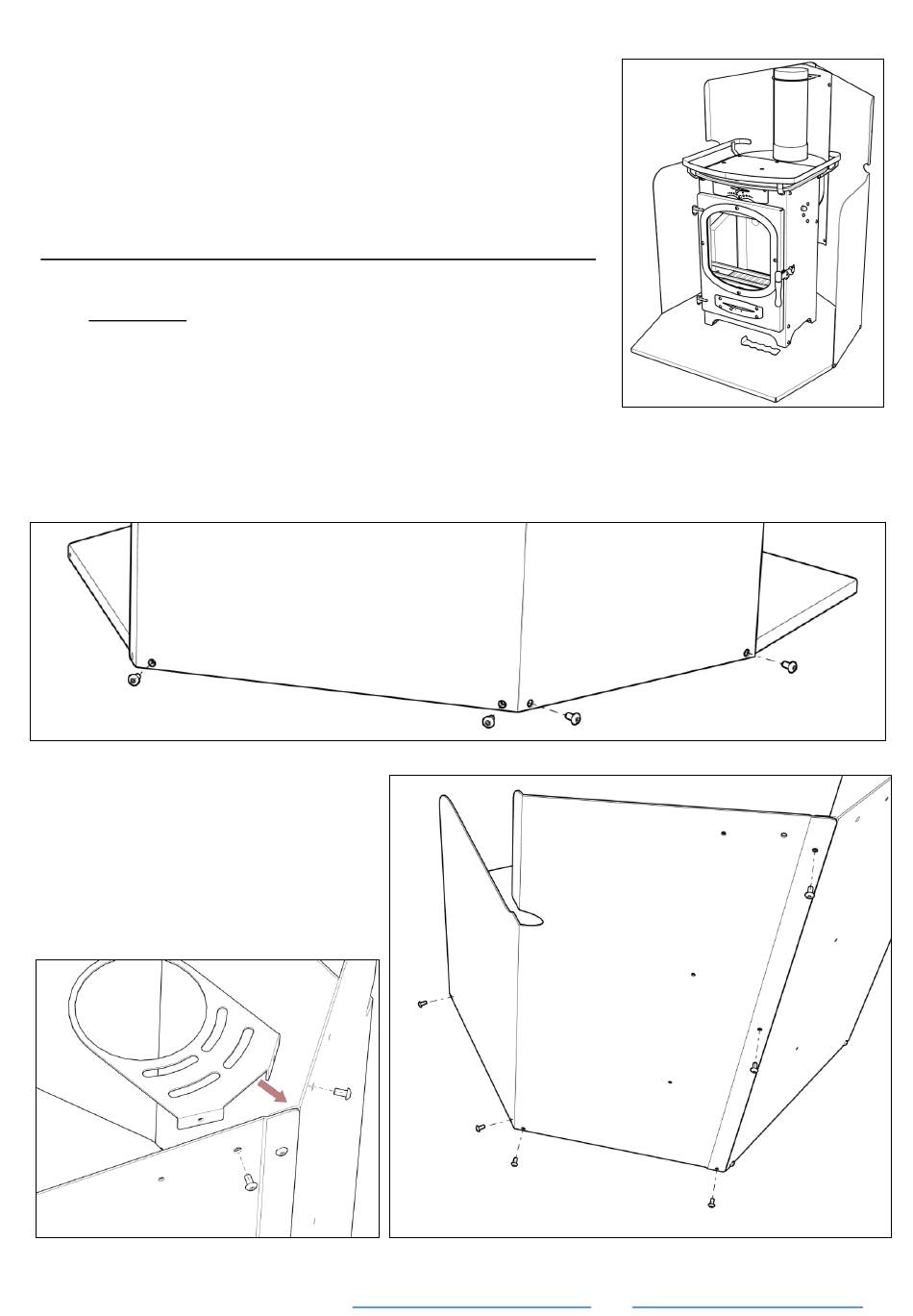

Freestanding Heatshield Surround (Pt No: 8370) Assembly.
1. Unpack items and lay out ready for assembly.
2. IMPORTANT: DO NOT tighten any screws fully until the components
have all been assembled loosely together. This will ease the starting of
screws onto their threads with minimum of difficulty.
3. Lay down the hearth and offer up the LH side panel to the base. Insert
4 x M5 screws LOOSELY into the holes.
4. Offer up the RH side panel to overlay the LH side panel at the rear. Insert 6 x M5 screws LOOSELY into the
holes.
5. Fit the flue pipe steady bracket to the
rear of the surround side panels and
insert 2 x M5 screws LOOSELY into the
holes.
T: 0845 519 5991 F: 0845 519 5992 E:
Charlton & Jenrick Ltd
Unit D Stafford Park 2, Telford, Shropshire, TF3 3AR
sales@charltonandjenrick.co.uk
W:
www.charltonandjenrick.co.uk
Iss 01 04/19
Advertisement
Related Manuals for Charlton & Jenrick GO ECO Adventurer 5
Summary of Contents for Charlton & Jenrick GO ECO Adventurer 5
- Page 1 Iss 01 04/19 Charlton & Jenrick Ltd GO ECO Adventurer 5 Freestanding Heatshield Surround (Pt No: 8370) Assembly. 1. Unpack items and lay out ready for assembly. 2. IMPORTANT: DO NOT tighten any screws fully until the components have all been assembled loosely together. This will ease the starting of screws onto their threads with minimum of difficulty.
- Page 2 Iss 01 04/19 6. Offer up the rear heatshield panel and insert 6 x M5 screws LOOSELY into the fixing holes. 7. Now begin to tighten the screws that secure the LH & RH side panels to the hearth panel. Work your way around tightening up the whole assembly progressively.
