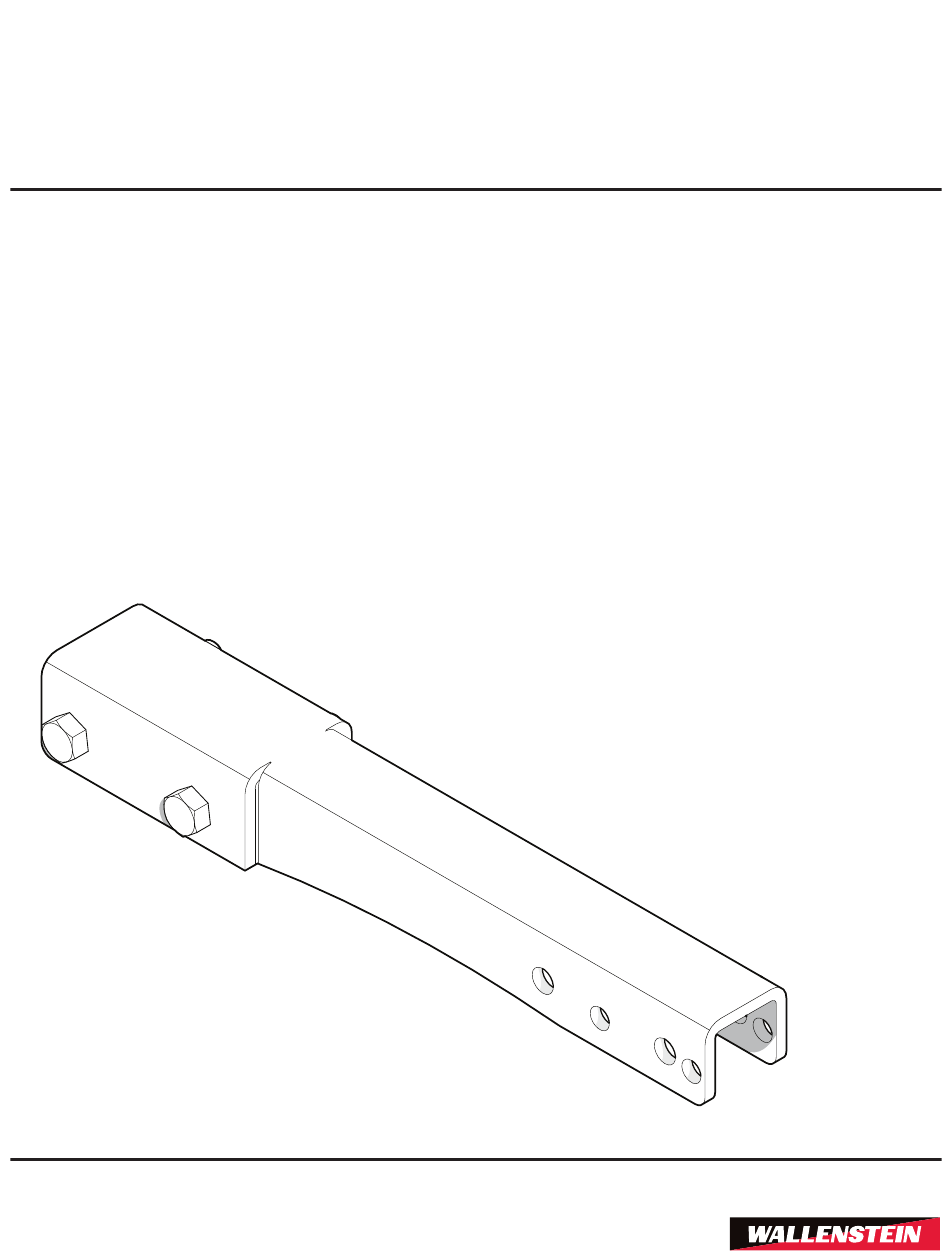

- Page 1 INSTALLATION INSTRUCTIONS W 4202 12 inch Trailer-Tongue Extension Revision: Feb-2025 Document number: Z97863_En...
-
Page 2: Table Of Contents
W4202 Installation Instructions 12 inch Trailer-Tongue Extension Table of Contents 1. Introduction ............3 2. Safety ..............4 2.1 Safety Alert Symbol ..........4 2.2 Why Safety is Important ..........4 2.3 Signal Words ............4 3. Accessory Components ........5 4. Install a Trailer-Tongue Extension ......6 4.1 Preparation ............... -
Page 3: Introduction
Illustrations are provided for reference only. It is possible that some details are not shown. For support or service, contact your local dealer or Wallenstein Equipment. Units of measurement in Wallenstein technical manuals are written as: US Customary (SI metric) This manual is subject to change without notice. -
Page 4: Safety
• Accidents are preventable. You are responsible for the safe operation and maintenance of your Wallenstein Equipment product. You must make sure that you and anyone who uses, maintains, or works around the machine is familiar with the operation and maintenance procedures and related safety information in this manual. -
Page 5: Accessory Components
3. Accessory Components The parts and hardware shown in the illustration are included in the kit. Inspect the components to confirm that no damage occurred during shipment. Figure 2 – W4202 12 inch trailer-tongue extension components Item Part Number Description Quantity Z72251 Hex lock nut 1/2”... -
Page 6: Install A Trailer-Tongue Extension
W4202 Installation Instructions 12 inch Trailer-Tongue Extension 4. Install a Trailer-Tongue Extension WARNING! Read and obey all the installation and setup instructions. Do not change this equipment and install the equipment correctly. Incorrect installation or changes to the equipment can cause serious injury or machine damage, and immediately void the warranty. -
Page 7: Procedure
Some machine models do not have safety chains. Numbers that are in brackets reference the Accessory Components item numbers on page 5 To install a W4202 12 inch trailer-tongue extension on your log splitter, do the following: Step 1 Remove the trailer-hitch coupler from the machine: a. - Page 8 W4202 Installation Instructions 12 inch Trailer-Tongue Extension Step 3 Install the two bolts (3) and two nuts (1), Put each bolt through the trailer tongue and the trailer-tongue extension. Only tighten the fasteners with your hands. Step 4 Put the trailer-hitch coupler you removed at step 1 on the trailer-tongue extension (2).
- Page 9 W4202 Installation Instructions 12 inch Trailer-Tongue Extension Step 6 Install the front trailer-hitch coupler fasteners: a. Install the second bolt that you removed at step 1. Put the bolt through the trailer-hitch coupler and the trailer-tongue extension (2). b. Install the second nut that you removed at step 1 on the bolt.
-
Page 10: Specifications
W4202 Installation Instructions 12 inch Trailer-Tongue Extension 5. Specifications These specifications are provided for reference and are subject to change without notice. Bolt Torque Imperial Bolt Torque Specifications IMPORTANT! If you replace hardware, use fasteners Torque Bolt of the same grade. -
Page 11: Limited Warranty
12 inch Trailer-Tongue Extension 6. Warranty LIMITED WARRANTY Wallenstein products are warranted to be free of defects in materials and workmanship under normal use and service, for a period of Five Years for Consumer Use Two Years for Commercial/Rental Use from the date of purchase, when operated and maintained in accordance with the opera�ng... - Page 12 WallensteinEquipment.com...
