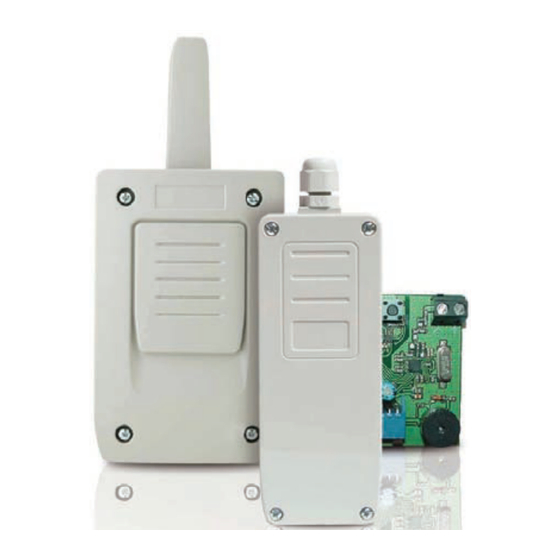

Manual Programming Total Reset System Check Correct functioning of the system Detection of band failure Signal coverage Transmitter battery low indicator (RADIOBAND/TBX) Changing the battery Technical data Technical features safety edge radio transmitter Technical features safety edge radio receiver Regulatory Data...
Important safety instructions Disconnect the power supply before handling the equipment. In accordance with the European low voltage directive, you are informed of the following requirements: •For permanently connected equipment, an easily accessible connection device must be incorporated into the cabling. •...
JP1 must be bridged. This application does not comply with safety standard EN 12453 for the use of motorised garage doors, since the connection of the resistive element to the RADIOBAND/TBX is not checked. RADIOBAND/RU: Fix the back of the box to the wall, using the wall plugs and screws supplied.
Connections Connections RADIOBAND/RU Power supply 12/24V AC/DC: (+). Power supply 12/24V AC/DC (-). 3, 4 R1: Connection to the safety band input of the control panel (resistive contact 8.2KΩ) with jumper in position BS1 (see CONNECTIONS Figure 1). Or to the control panel safety contact input (NC) with jumper in position CS1 (see CONNECTION Figure 2).
Figura 3 Installation advices Installation of the Radioband System on a one leaf sliding door with control panel and RADIOBAND/RU. Installation of the Radioband System on a one leaf sliding door with control panel with slot for RADIOBAND/RC-RCS card. jcmtechnologies...
Installation of the Radioband System on an horizontal sectional door with control panel and RADIOBAND/RU. Polarized self-test Check the self-test output on the control panel, in standby, to see whether the voltage is 0V (inverted test input) or 12/24V AC/DC (positive polarization). Switch on the self-test signal of the panel and check that it has a maximum duration of 3 seconds.
For a right operation of the system, the transmitter has to be programmed in one receiver only. RADIOBAND/TBX replacement: In case you need to replace a RADIOBAND/TBX, it is necessary to reset the system (see TOTAL RESET below) and reprogram all RADIOBAND/TBX used in the installation.
The check indicator light will go out. Detection of band failure If the communication with a RADIOBAND/TBX fails during checking, or the communication is deficient (for instance, too many communication retries or poor coverage), the RADIOBAND/RU-RC-RCS emits three consecutive beeps, indicating that an error has occurred.
Watertightness IP65 Dimensions 160x53x20mm Range (guaranteed) 10 m Battery life (approximate) 2 years Minimum time between two RADIOBAND/TBX activations (for com- 7 min. plying with the R&TTE Directive) Technical features safety edge radio receiver Parameter RADIOBAND/RU RADIOBAND/RC-RCS Frequency 868,90 MHz...
Regulatory Data UKCA Declaration of conformity JCM TECHNOLOGIES, SAU hereby declares that the product RADIOBAND/TBX, RADIOBAND/RU & RADIOBAND/RC- RCS complies with the relevant fundamental requirements of the Radio Equipment Regulations 2017, as well as with the Supply of Machinery (Safety) Regulations 2008 whenever its usage is foreseen; and with the RoHS Regulations 2012.
