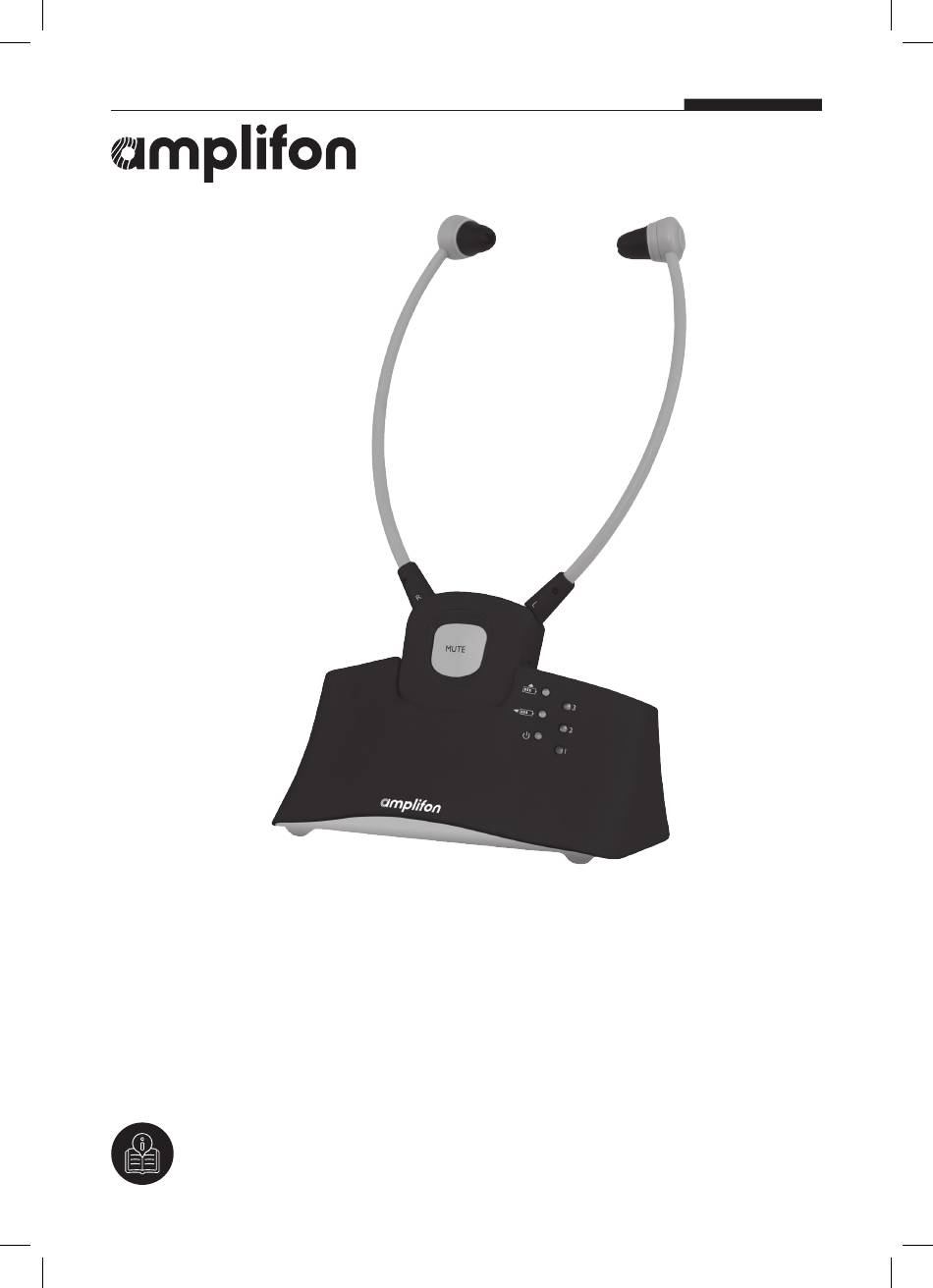

- Page 1 ENGLISH AMP TV100 TV Listening System Operating Instructions Please read and observe the following information and keep the operating manual nearby for future reference!
-
Page 2: Component Part List
Component part list Headset Receiver 2. Transmitter 3. Power Suppy Cable 4. Battery (x2) 5. Audio Cable (3.5mm stereo plug) 6 RCA Adapter Cable 7. TOSLINK Optical Cable 8. External Microphone... - Page 3 Setup 1. Plug in transmitter (base station). 2. lnsert battery into bottom of receiver. 3. Place receiver in transmitter base to charge overnight (or at least 3 hours). 4. Check to see which type of audio output yourTV has. Connect transmitter to TV by following the appropriate illustration in the set-up guide.
-
Page 4: How To Use
CAUTION: lf you have a heart pacemaker, contact your physician or the manufacturer of the pacemaker before using , to ensure that the pacemaker is not subject to interference. How to use 1. Turn on your sound source (e.g. TV). 2. - Page 5 Tone Presets You can set the Tone/Clarity with the button on the transmitter. Press and release the button until you find a listening preset that is right for you. The following table shows the settings. Select which setting works best for you. Setting Orange LED Indicator Effect Default Flat Bass Boost+ Treble Boost Treble Boost Bass Boost Important!
-
Page 6: Balance Control
. Range Amplifon uses the newest 2.4GHz technology. In optimal cases the range is up to 30.5 meters (100 feet). The 2.4GHz radio frequency technology also works through walls. The range depends greatly on the building and the environment. -
Page 7: Mono/Stereo Switch
Mono/Stereo Switch You can switch to stereo when using the headset or the earbuds or headphones. Switch between Monaural and Stereo signals MIC button Anytime during use you can mute the sound source and activate the built-in microphone to carry on a conversation. -
Page 8: Battery Charging
Battery charging Headset: The green LED on the headset will blink slowly and beep every minute when the battery is low. After use, gently place the receiver into the charging cradle of the transmitter. Ensure that the receiver is placed correctly in the transmitter. If the receiver is charging, the green LED at the right side of the receiver is illuminated. For first time operation, it is recommended that the battery be charged for at least... -
Page 9: Cleaning And Care
Clean the ear tips with mild soapy water. Dry the ear tips thoroughly and reattach them. Replacing the silicone ear tips The hypoallergenic silicone ear tips should be replaced if they become worn or damaged. New silicone tips can be ordered from your Amplifon distributor. -
Page 10: Warranty
Important information Product damage caused by improper handling as well as damage due to contamination are excluded from the warranty. This device is not protected against moisture. Do not place objects that are filled with fluids on or near the device, e.g. vases. Open fire sources such as burning candles, should not be placed on or near the transmitter. Chemical solvents Warranty Refer to the warranty card included in the product package. - Page 11 Connect to TV via RCA cable IMPORTANT: TV must have Audio OUT jacks. (Will not work on Audio IN jacks.) Switch between Monaural and Stereo signals If connecting to a PC use either the headphone jack or if available, the optical audio output. Connect to TV via single audio cable Switch between Monaural and...
- Page 12 If other options have not been effective, plug in Microphone (included) instead of direct connection Switch between Monaural and Stereo signals Attach microphone to TV speaker using Velcro fastener. Technical specifications: headset Transmission mode Digital RF System Carrier frequemcy 2.4GHz ISM BAND Operating voltage Transmitter SVC SS0mA Receiver 3.7 V, 350mA Lithium Polymer...
-
Page 13: Troubleshooting
Troubleshooting The Headset Receiver cannot be linked to the Transmitter, please follow this procedure for Pairing: 1. Turn OFF the power to the Transmitter by unplugging the power supply. 2. Turn ON the Headset Receiver. 3. Press and hold the MUTE Button on the Receiver for 5 seconds. The green LED on the Receiver will flash quickly.
