Wheel covers 16"
Art. nr. 15690
Intended use
Wheel covers 16" are intended to be used for HD Balance with 16" drive wheels.
Parts included
2 x wheel cover (RH and LH)
Assembly
1
Remove the drive wheel.

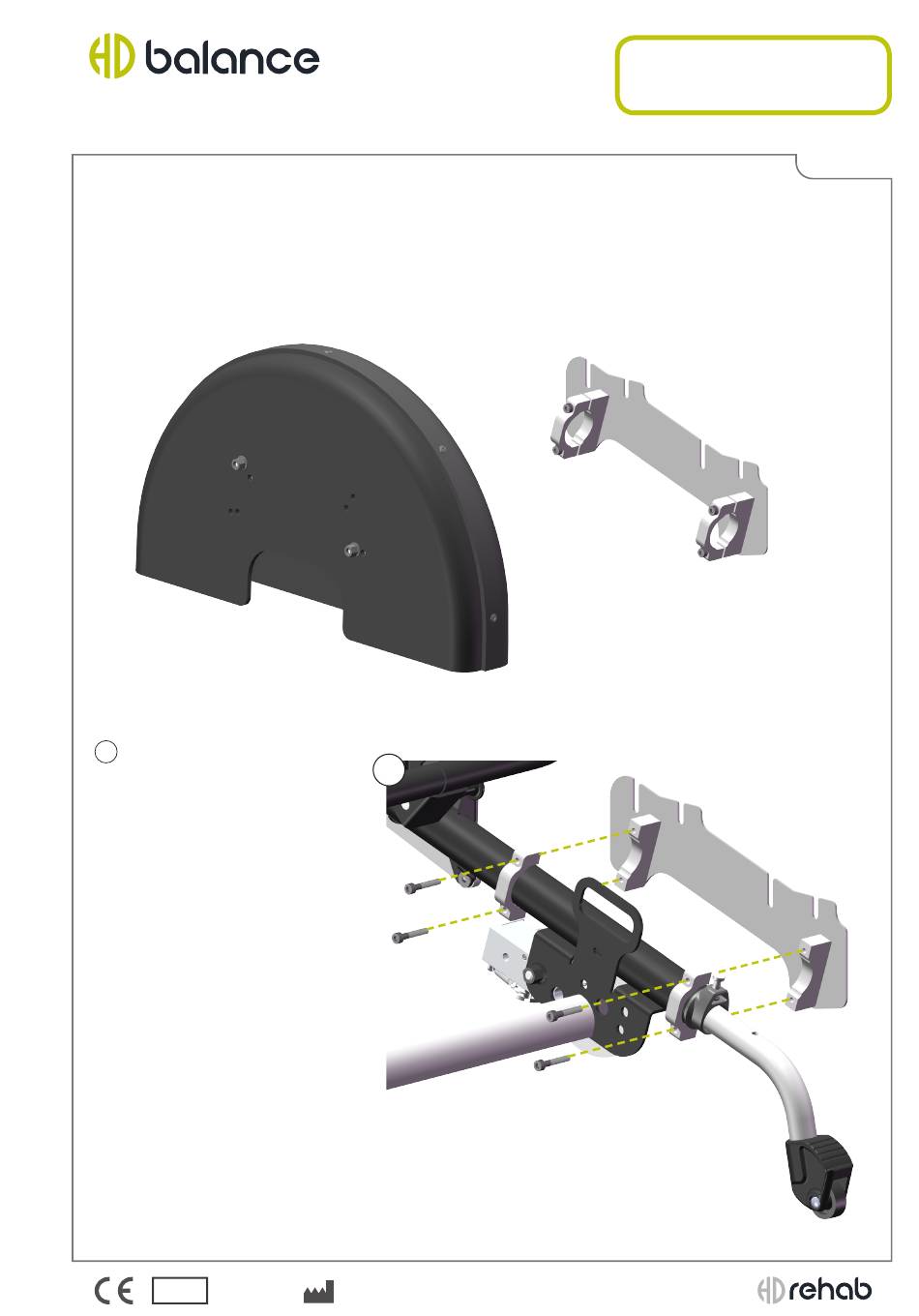

Screw the bracket in place on
the wheel frame tube. Make
sure it is straight up and
down.
Note that the lower clamp is
placed at the end of the tube.
Note: The screws should be
tightened securely but not
excessively. Check that the
bracket cannot turn on the
tube.
MD
1
HD Rehab AB
, Tryffelslingan 4, 181 57 Lidingö, Sweden
tel. +46(0)8-767 04 80 info@hdrehab.se www.hdrehab.se
User manual /
Assembly instructions
Doc. nr. 95848-1 Rev A 2022-01-11
2 x bracket (RH and LH)
Page 1 (2)
